DTC P0500-B: No Vehicle Speed Sensor Signal

NOTE: Perform Test P0500-A Before Proceeding

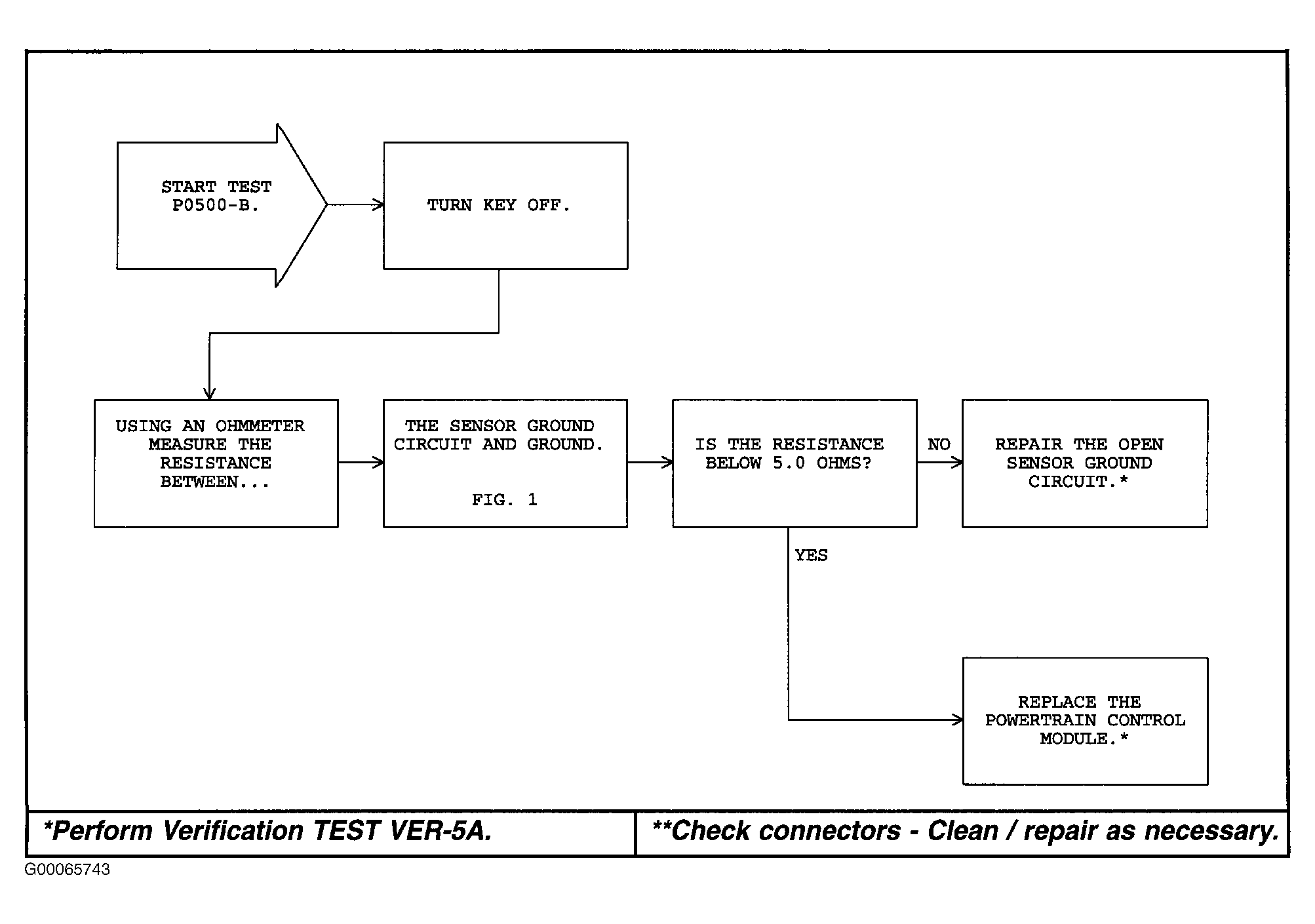

Fig 1: P0500-B: No Vehicle Speed Sensor Signal (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P0500-B: No Vehicle Speed Sensor Signal (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
