DTC P0500-A: No Vehicle Speed Sensor Signal

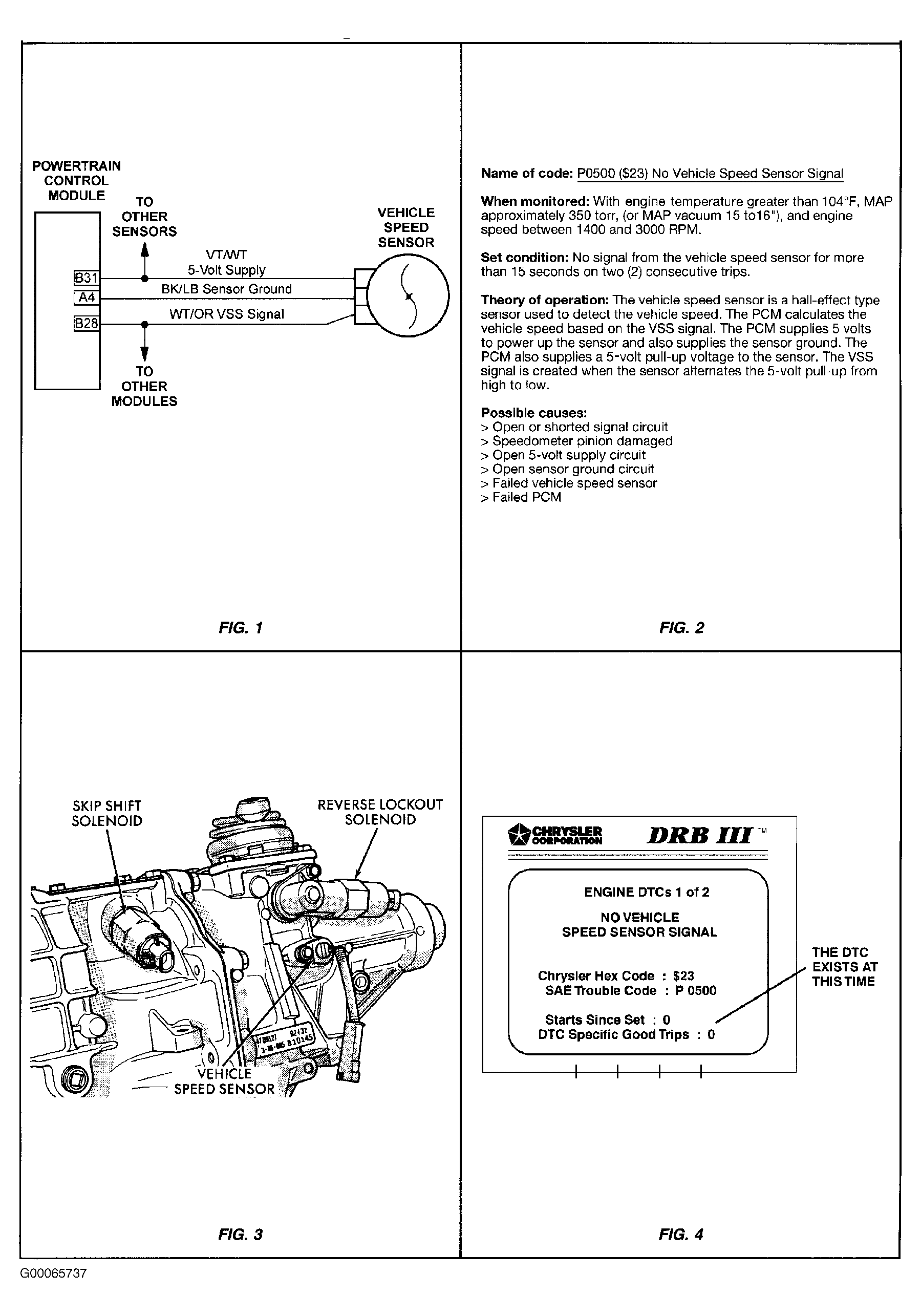

Fig 1: P0500-A: No Vehicle Speed Sensor Signal (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P0500-A: No Vehicle Speed Sensor Signal (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: P0500-A: No Vehicle Speed Sensor Signal (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P0500-A: No Vehicle Speed Sensor Signal (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: P0500-A: No Vehicle Speed Sensor Signal (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: P0500-A: No Vehicle Speed Sensor Signal (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
