DTC P0463-A: Fuel Level Sending Unit Volts Too High

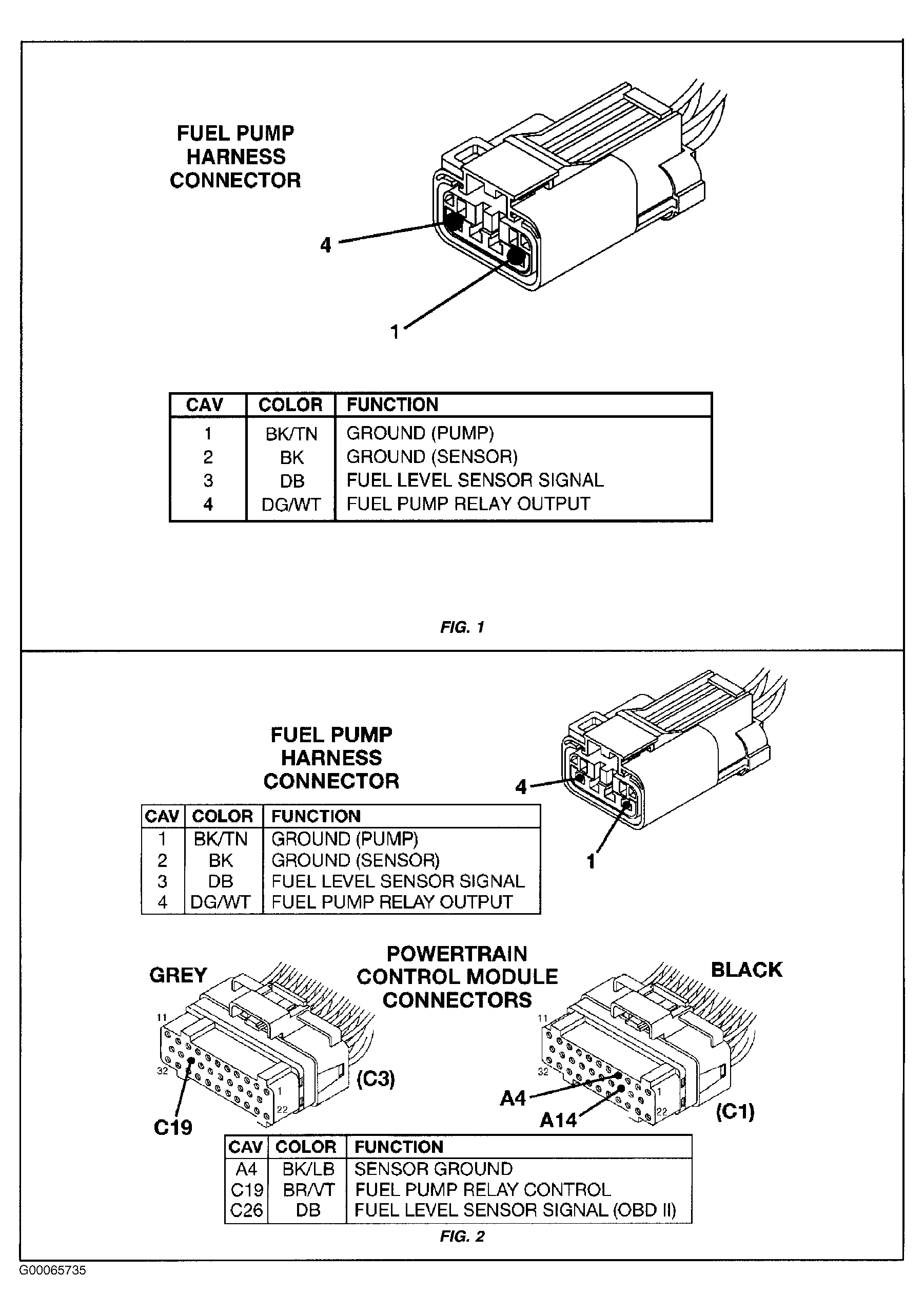

Fig 1: P0463-A: Fuel Level Sending Unit Volts Too High (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

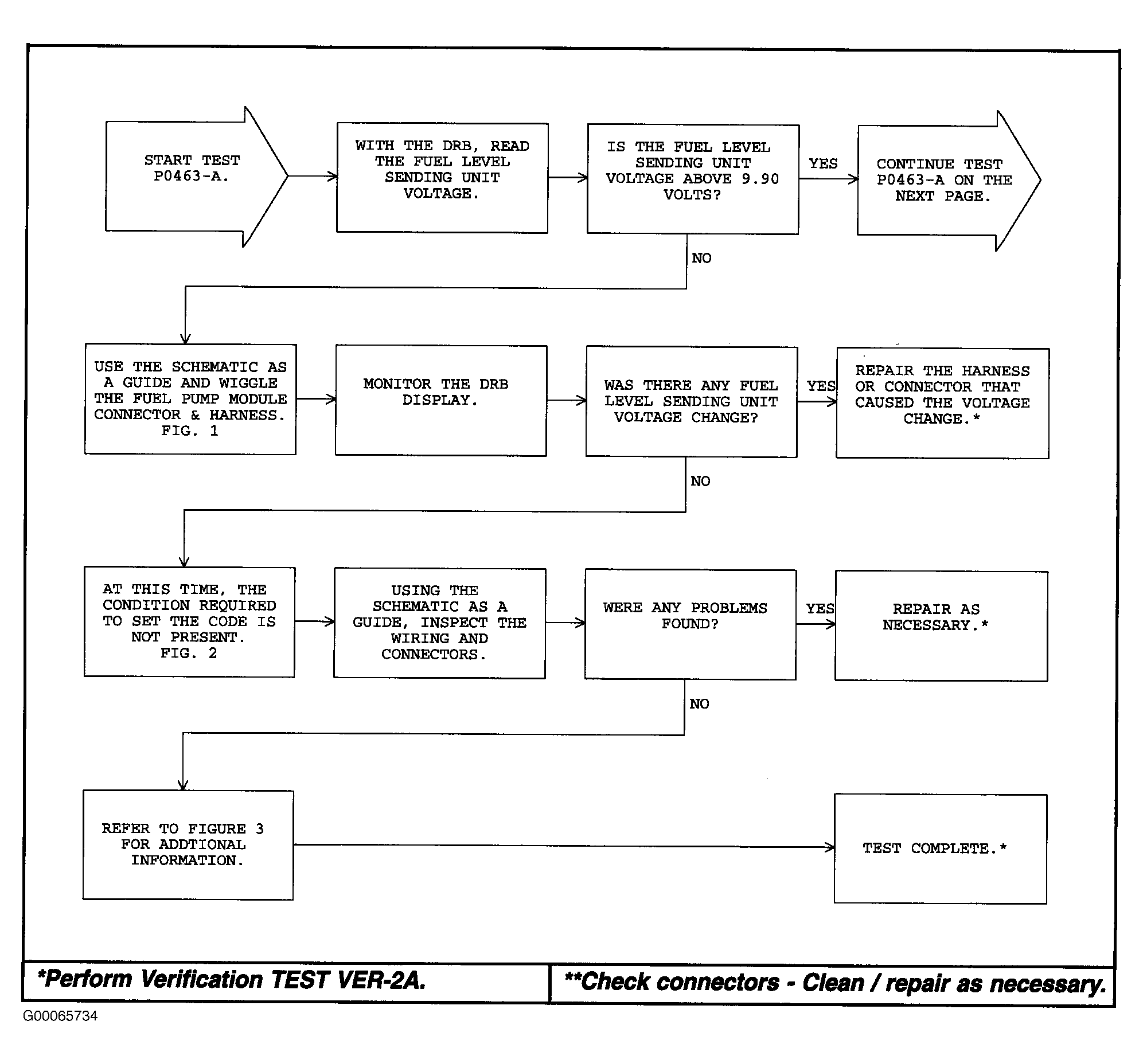

Fig 2: P0463-A: Fuel Level Sending Unit Volts Too High (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

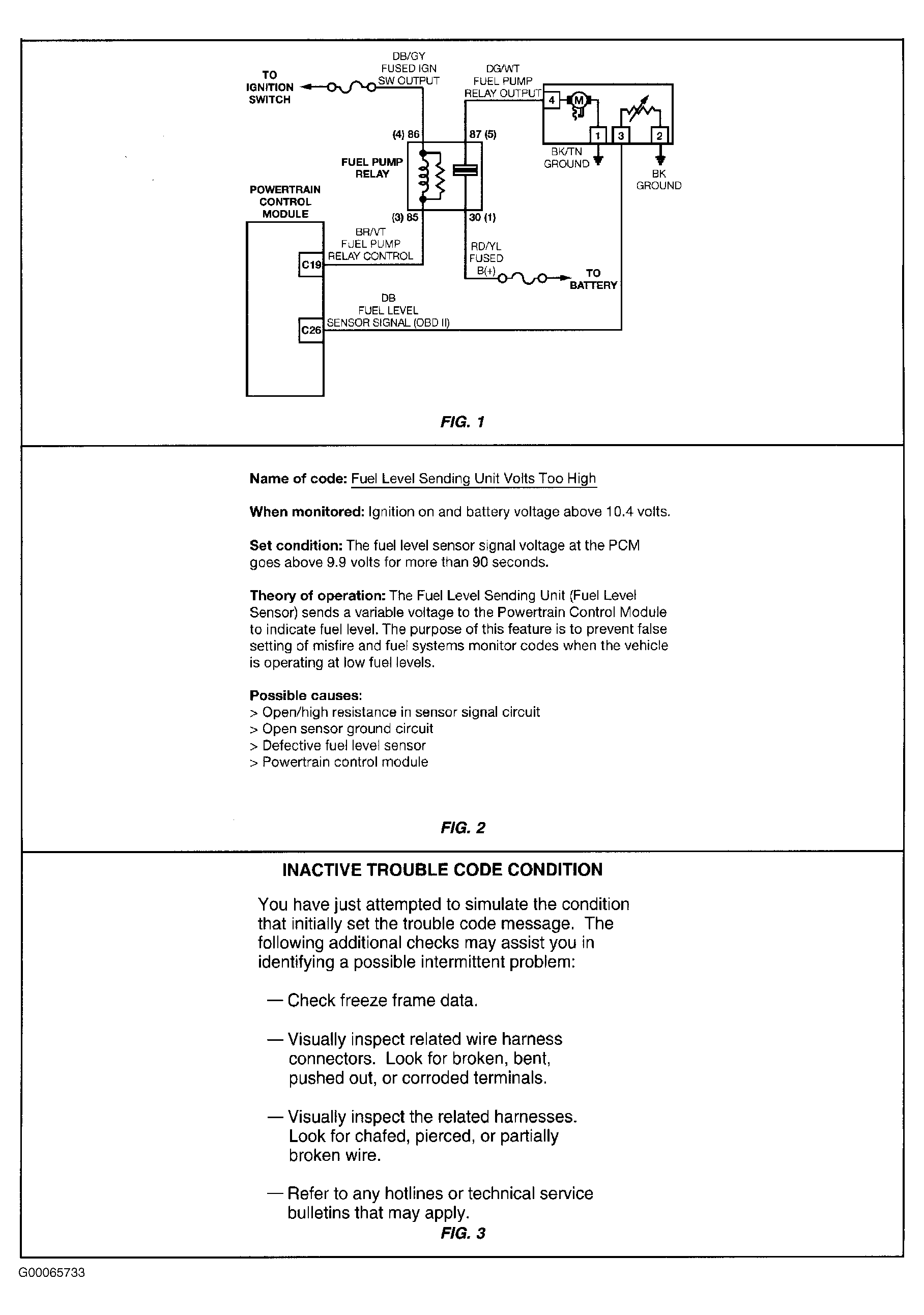

Fig 3: P0463-A: Fuel Level Sending Unit Volts Too High (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

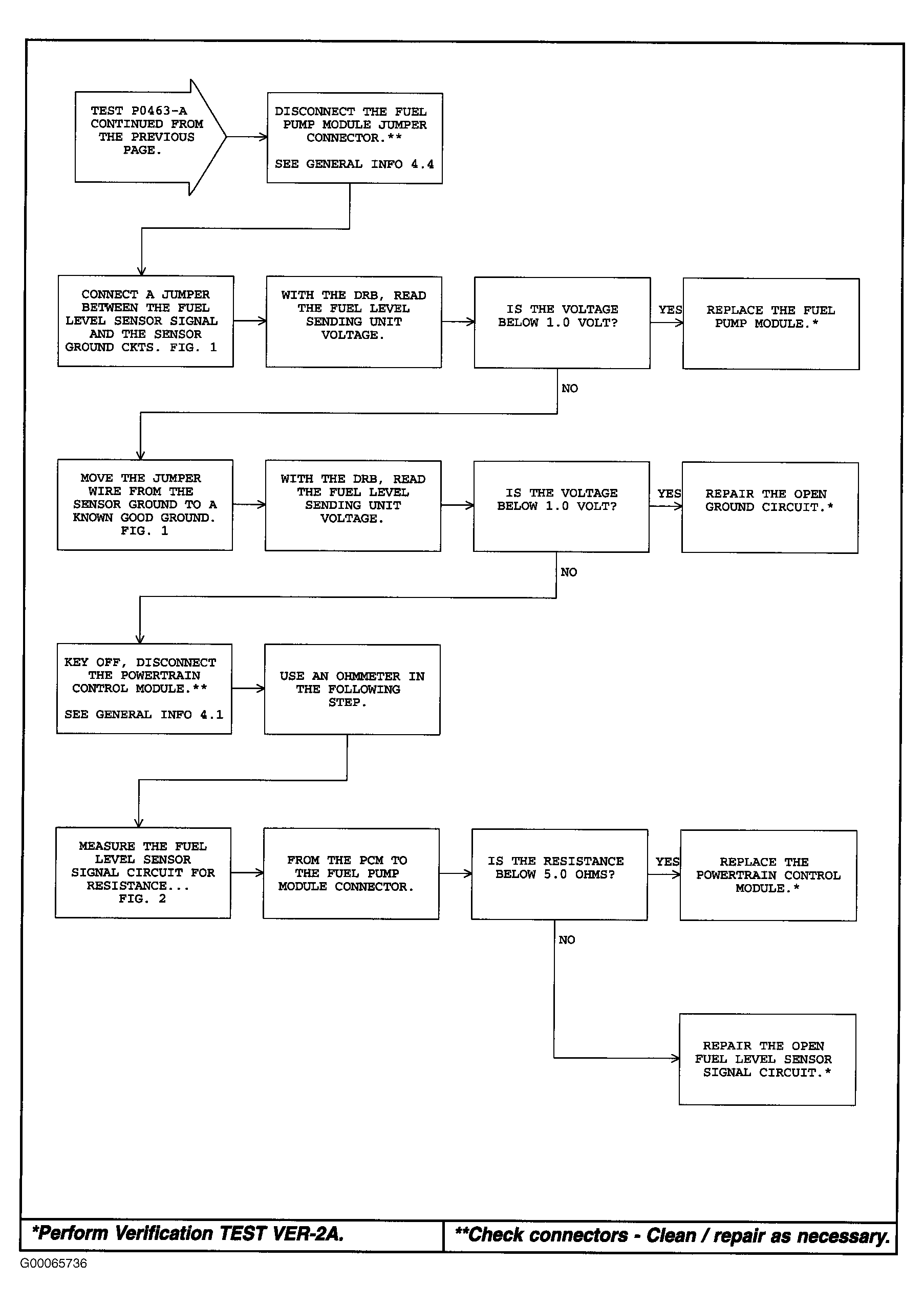

Fig 4: P0463-A: Fuel Level Sending Unit Volts Too High (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
