DTC P0462-A: Fuel Level Sending Unit Volts Too Low

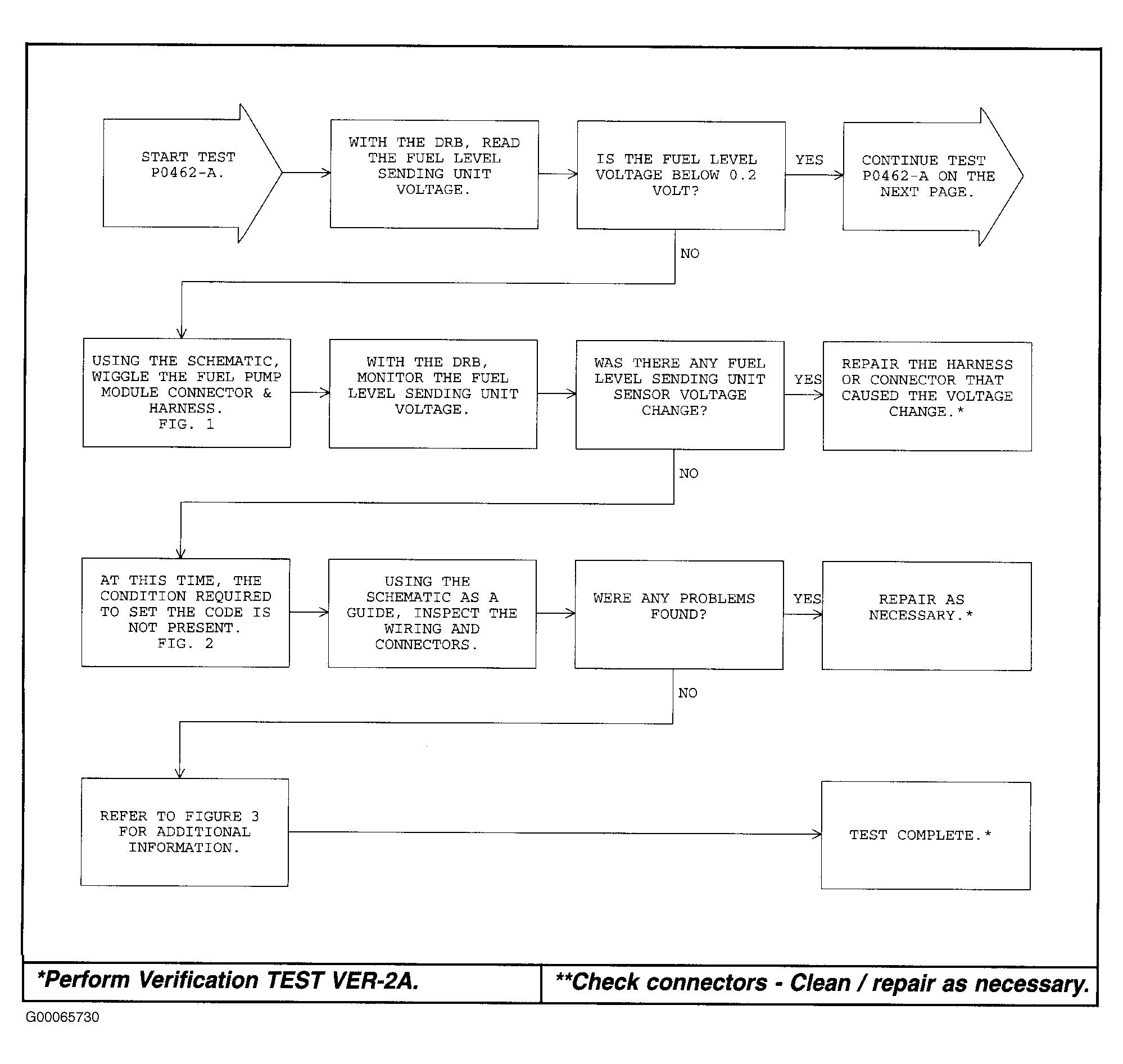

Fig 1: P0462-A: Fuel Level Sending Unit Volts Too Low (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

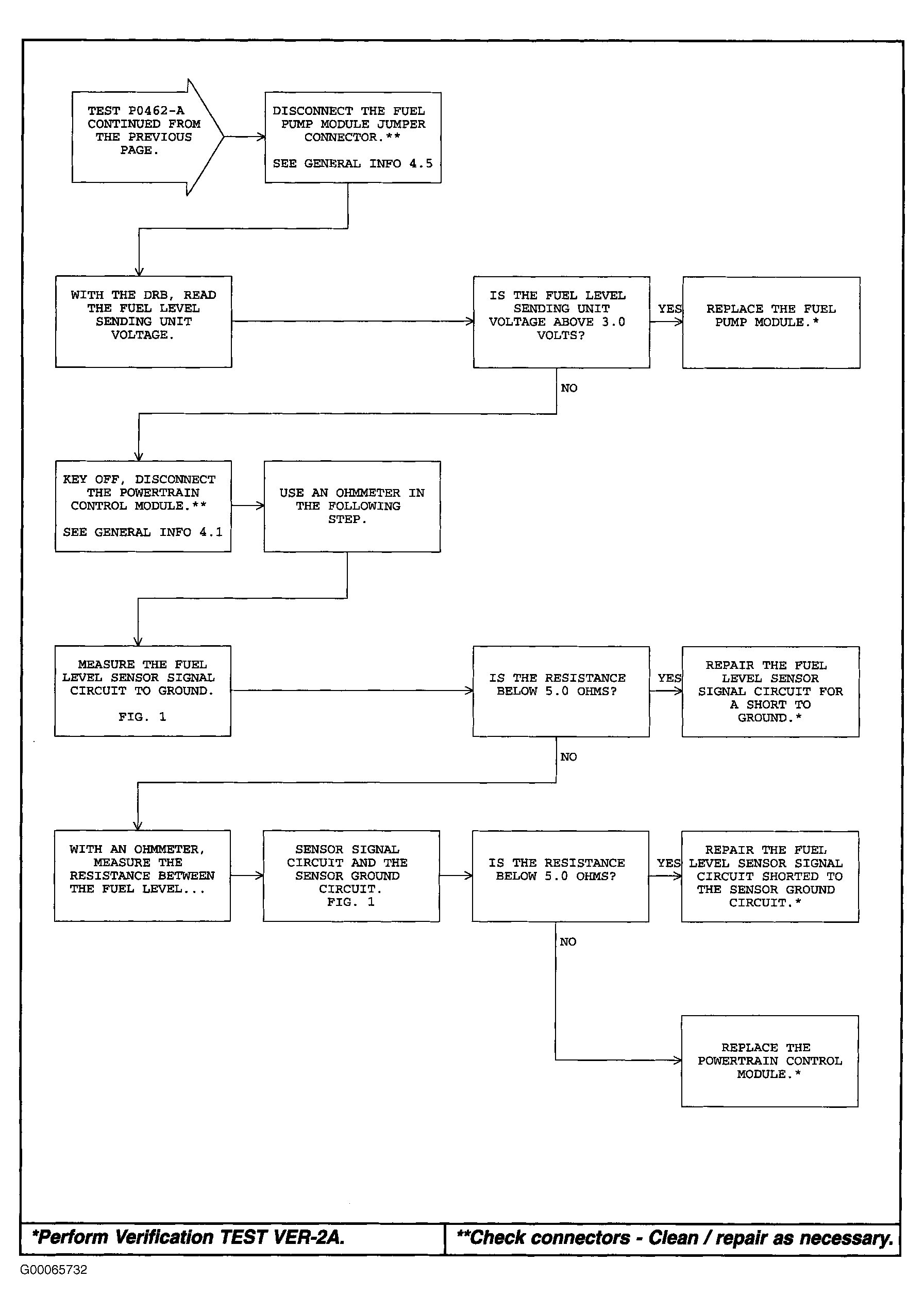

Fig 2: P0462-A: Fuel Level Sending Unit Volts Too Low (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

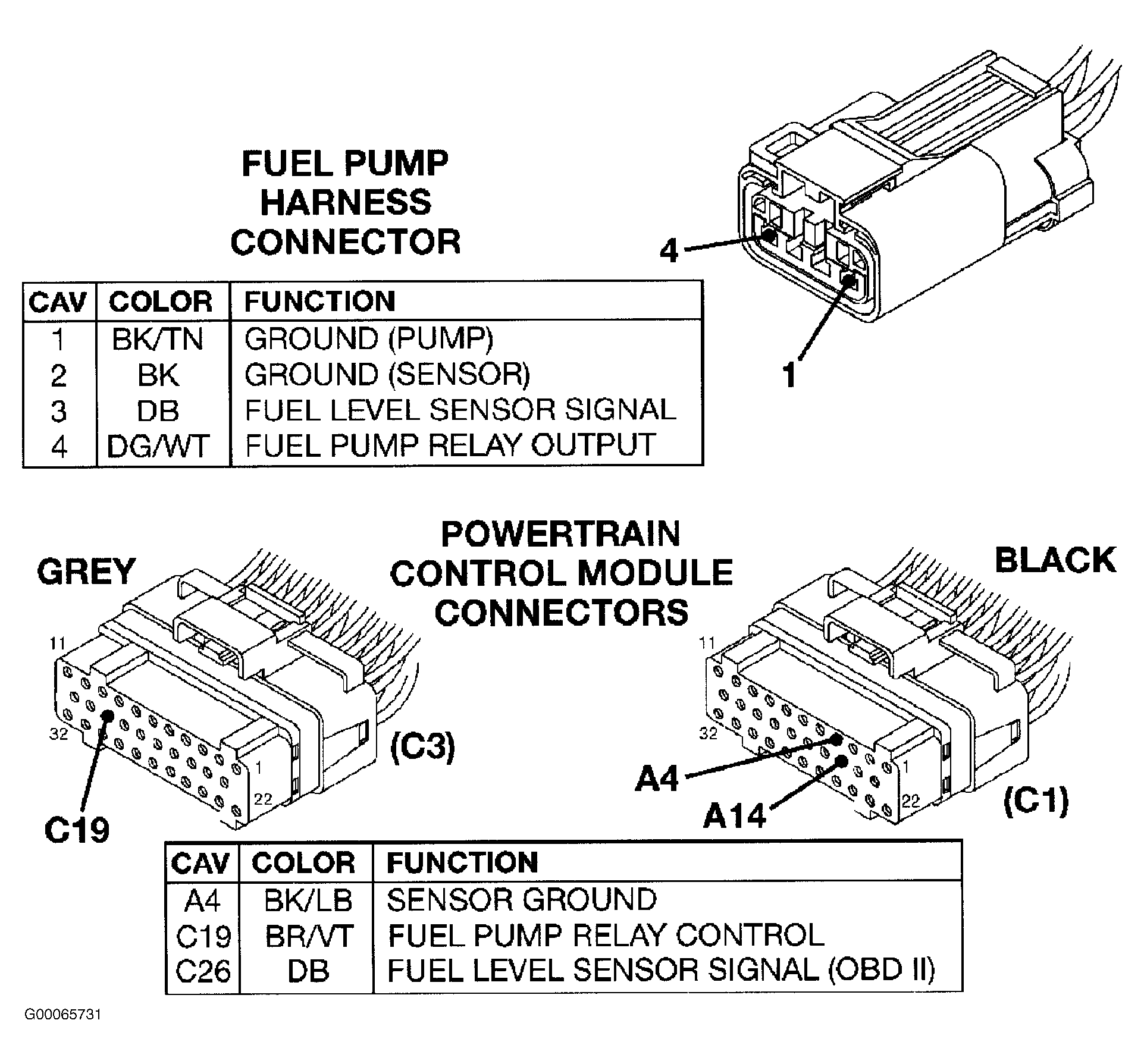

Fig 3: P0462-A: Fuel Level Sending Unit Volts Too Low (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

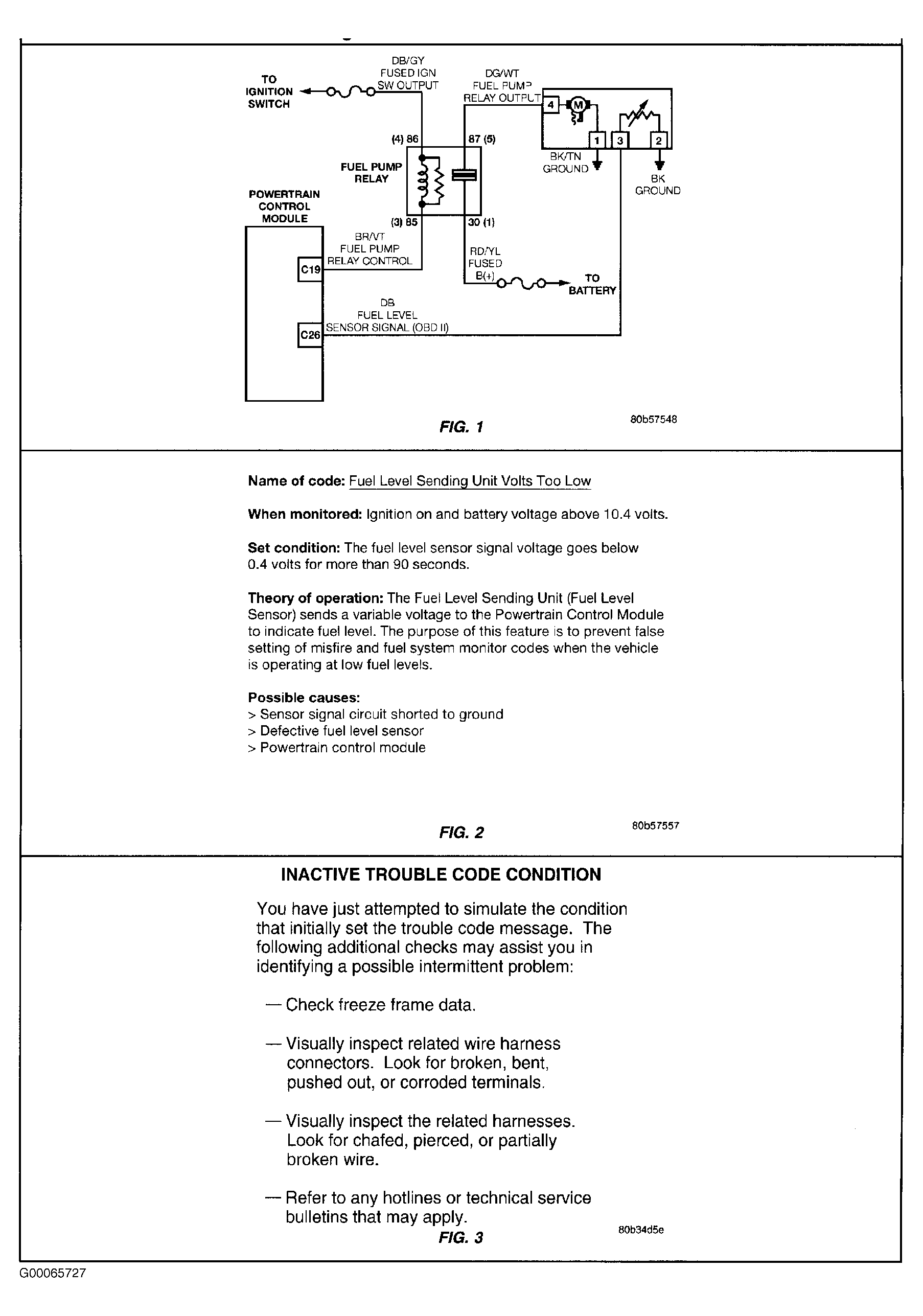

Fig 4: P0462-A: Fuel Level Sending Unit Volts Too Low (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
