DTC P0420-A: Catalyst 1/1 Efficiency Failure

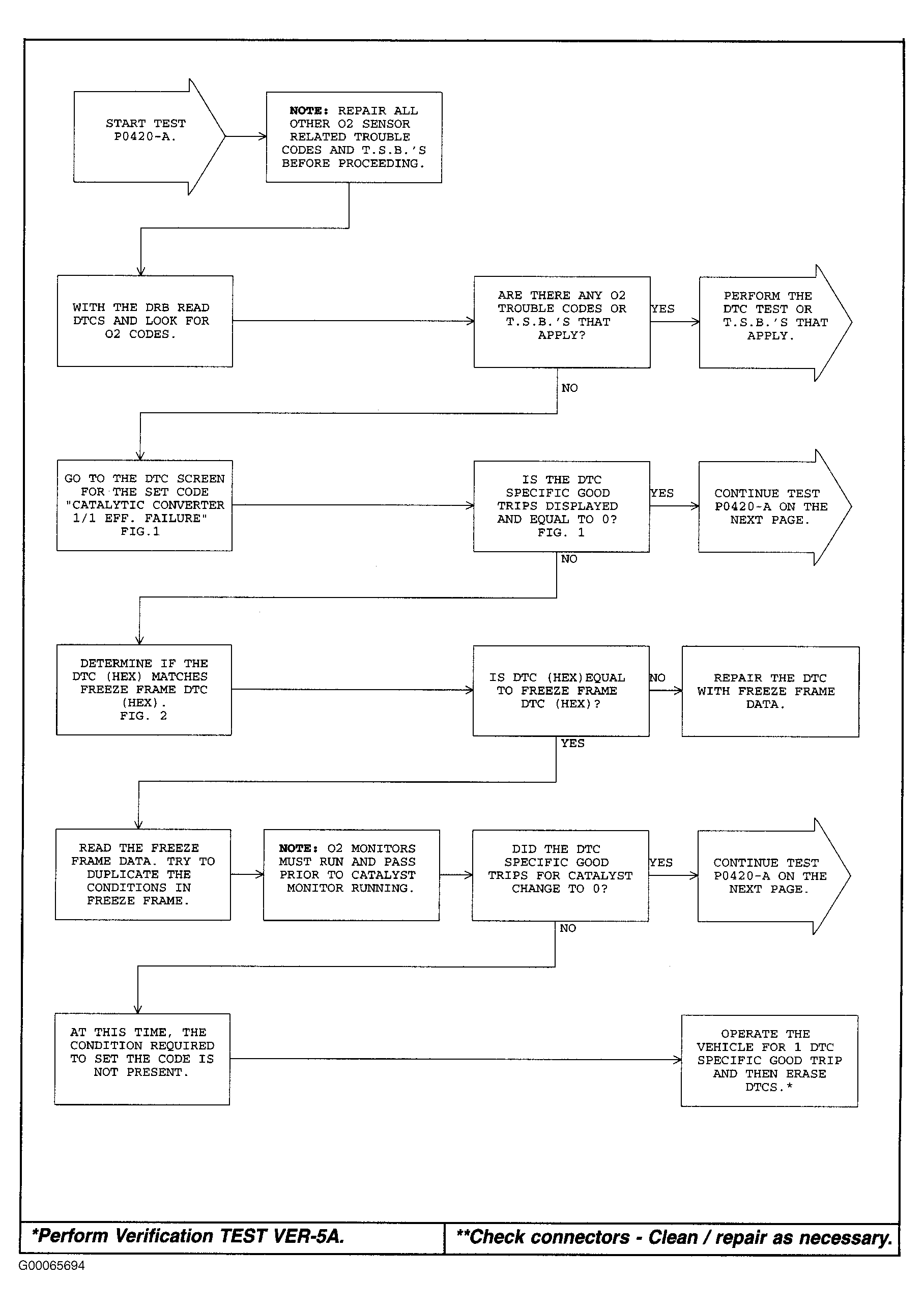

Fig 1: P0420-A: Catalyst 1/1 Efficiency Failure (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P0420-A: Catalyst 1/1 Efficiency Failure (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

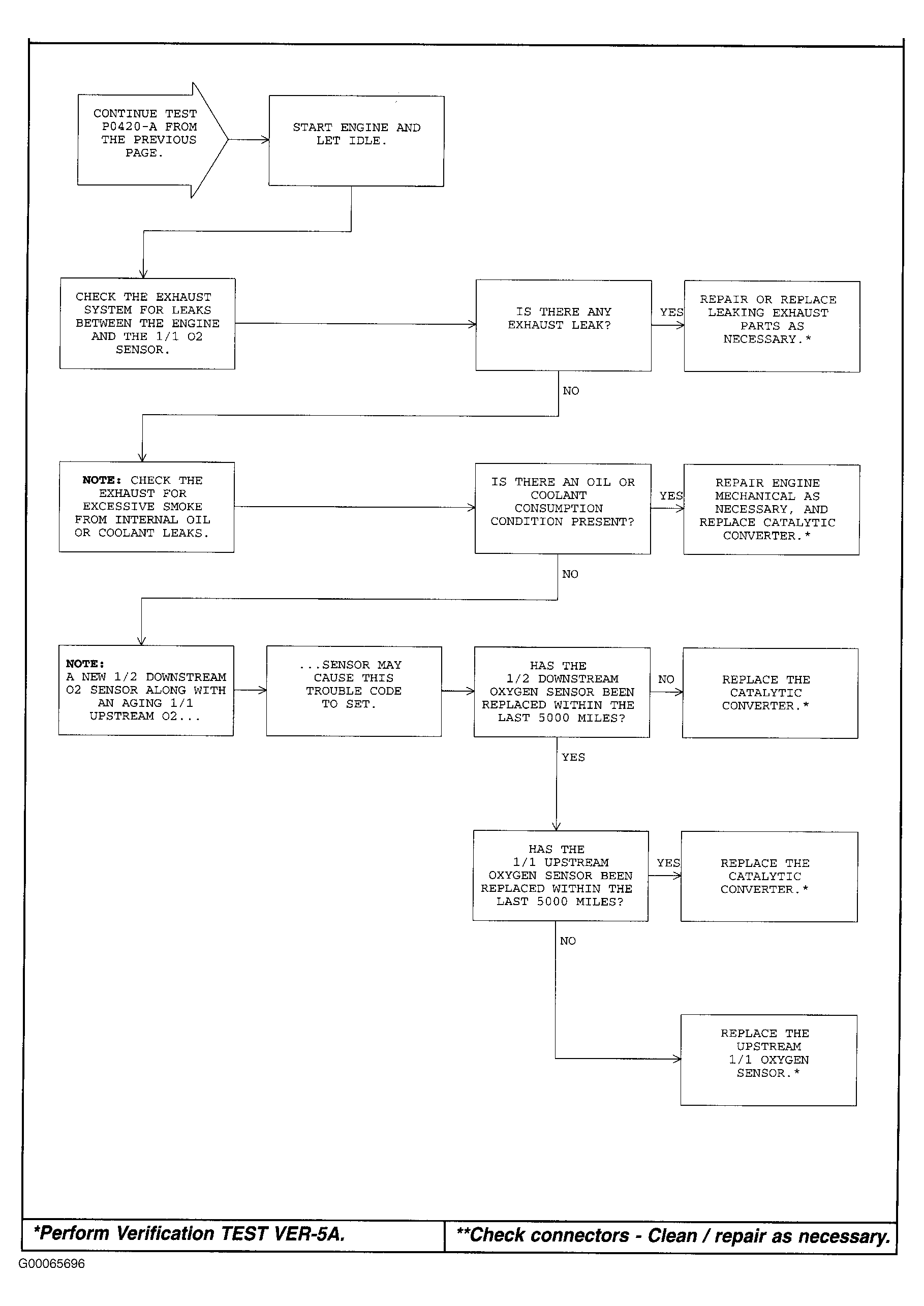

Fig 3: P0420-A: Catalyst 1/1 Efficiency Failure (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P0420-A: Catalyst 1/1 Efficiency Failure (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
