DTC P0204-A: Injector No. 4 Control Circuit

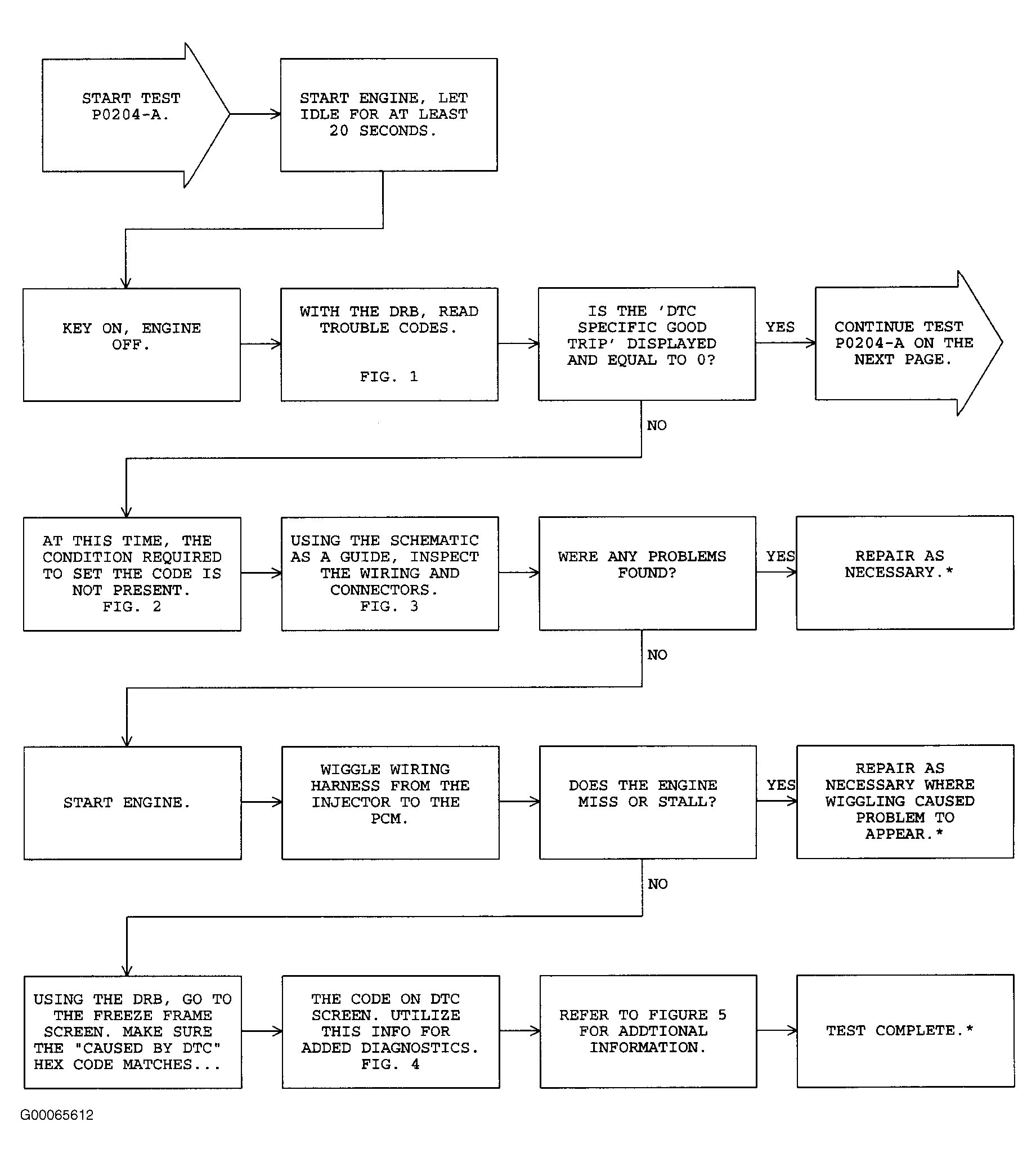

Fig 1: P0204-A: Injector No. 4 Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

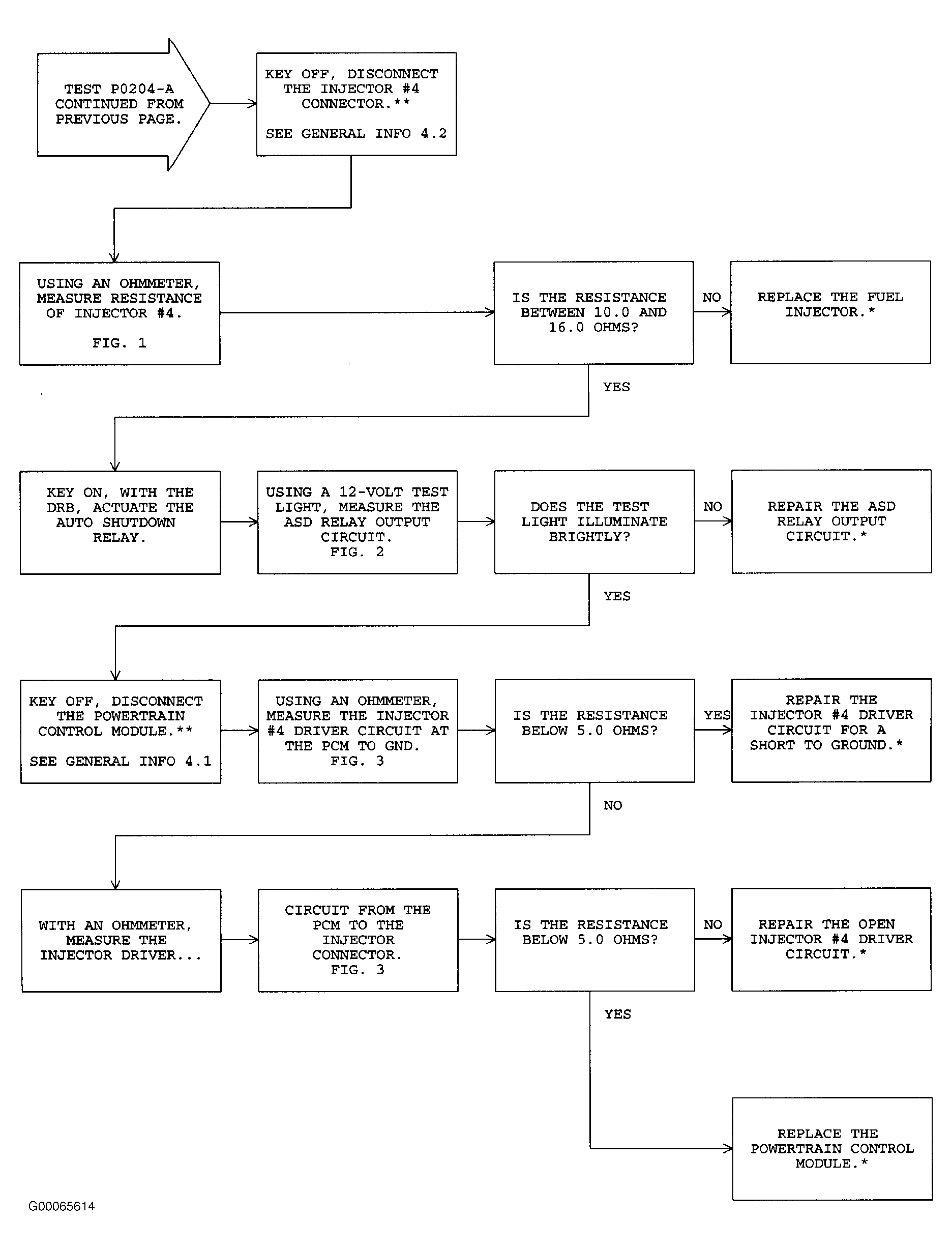

Fig 2: P0204-A: Injector No. 4 Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

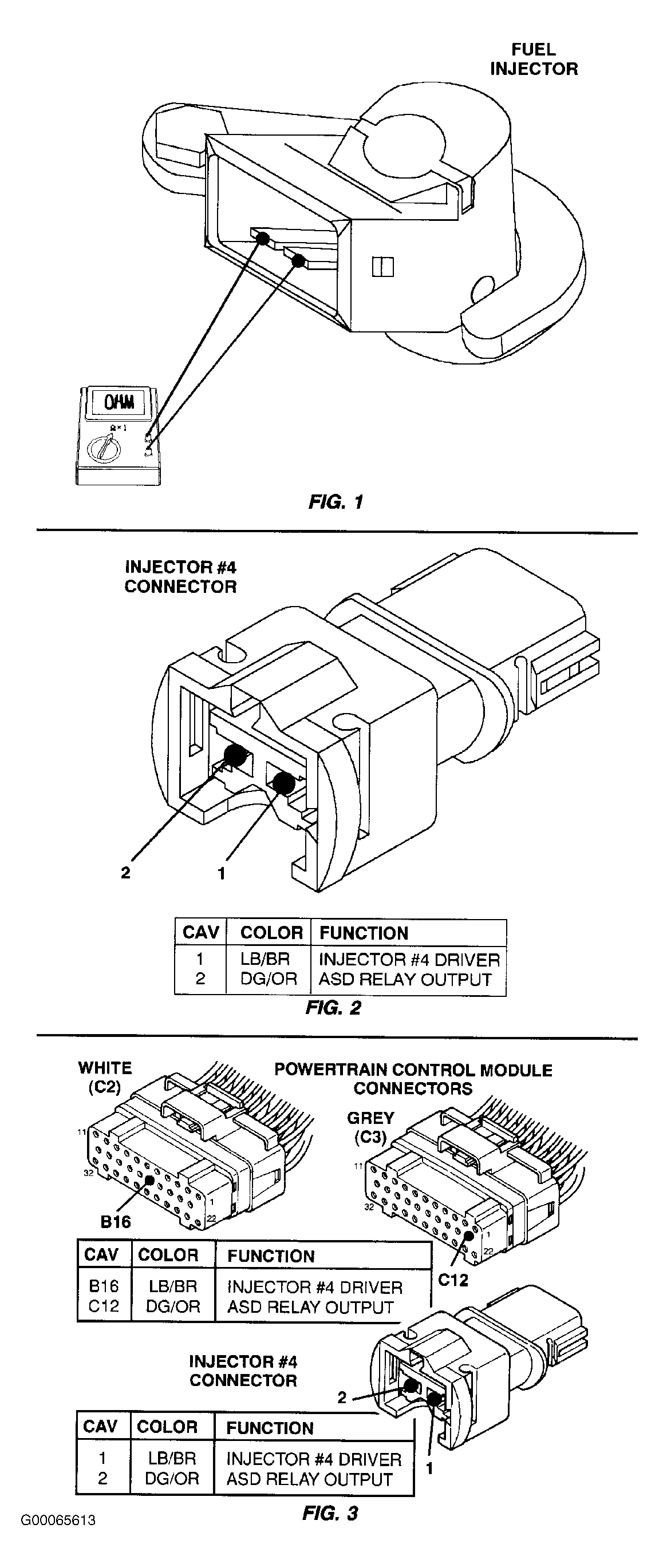

Fig 3: P0204-A: Injector No. 4 Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P0204-A: Injector No. 4 Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
