Test NTC-3A: Checking Pcm Power & Ground Circuits

NOTE: Perform Test NTC-1A Or NTC-12A Before Proceeding

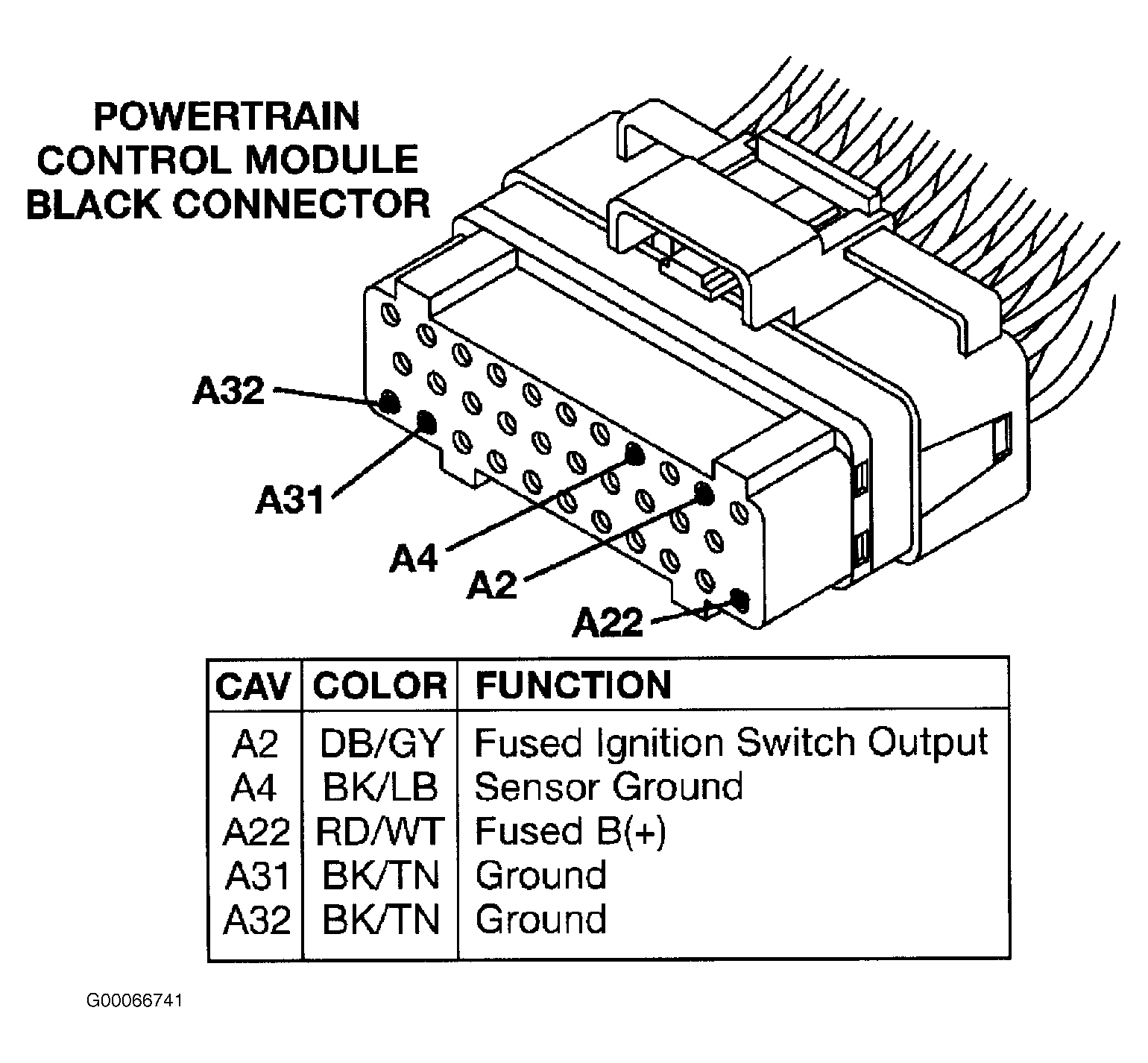

Fig 1: NTC-3A: Checking PCM Power & Ground Circuits (1 Of 2)
G00066741Courtesy of DAIMLERCHRYSLER CORPORATION

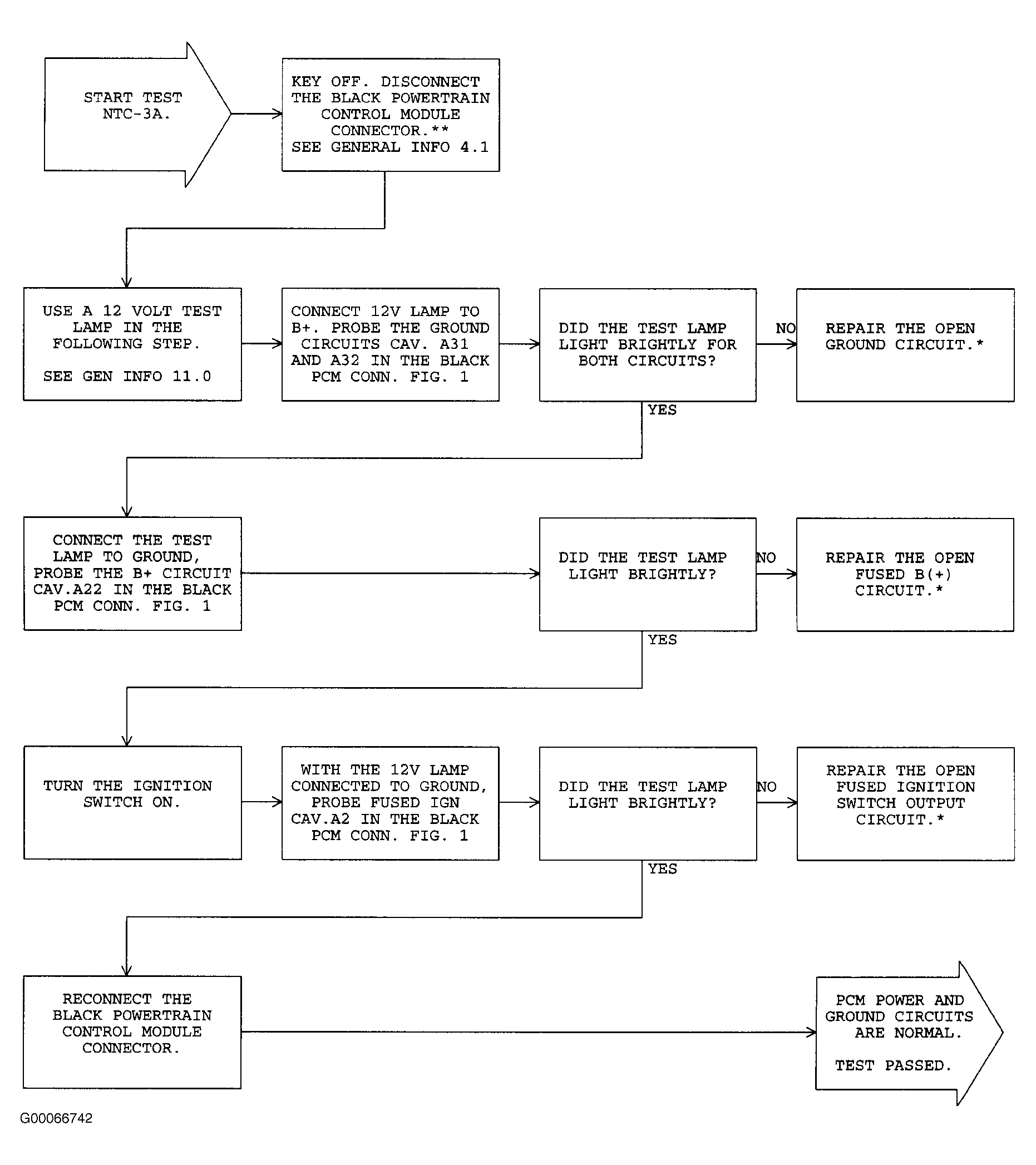

Fig 2: NTC-3A: Checking PCM Power & Ground Circuits (2 Of 2)
G00066742Courtesy of DAIMLERCHRYSLER CORPORATION
