Test NTC-15A: Checking Battery Temp Sensor (BTS)

NOTE: Perform Test NTC-1A Before Proceeding

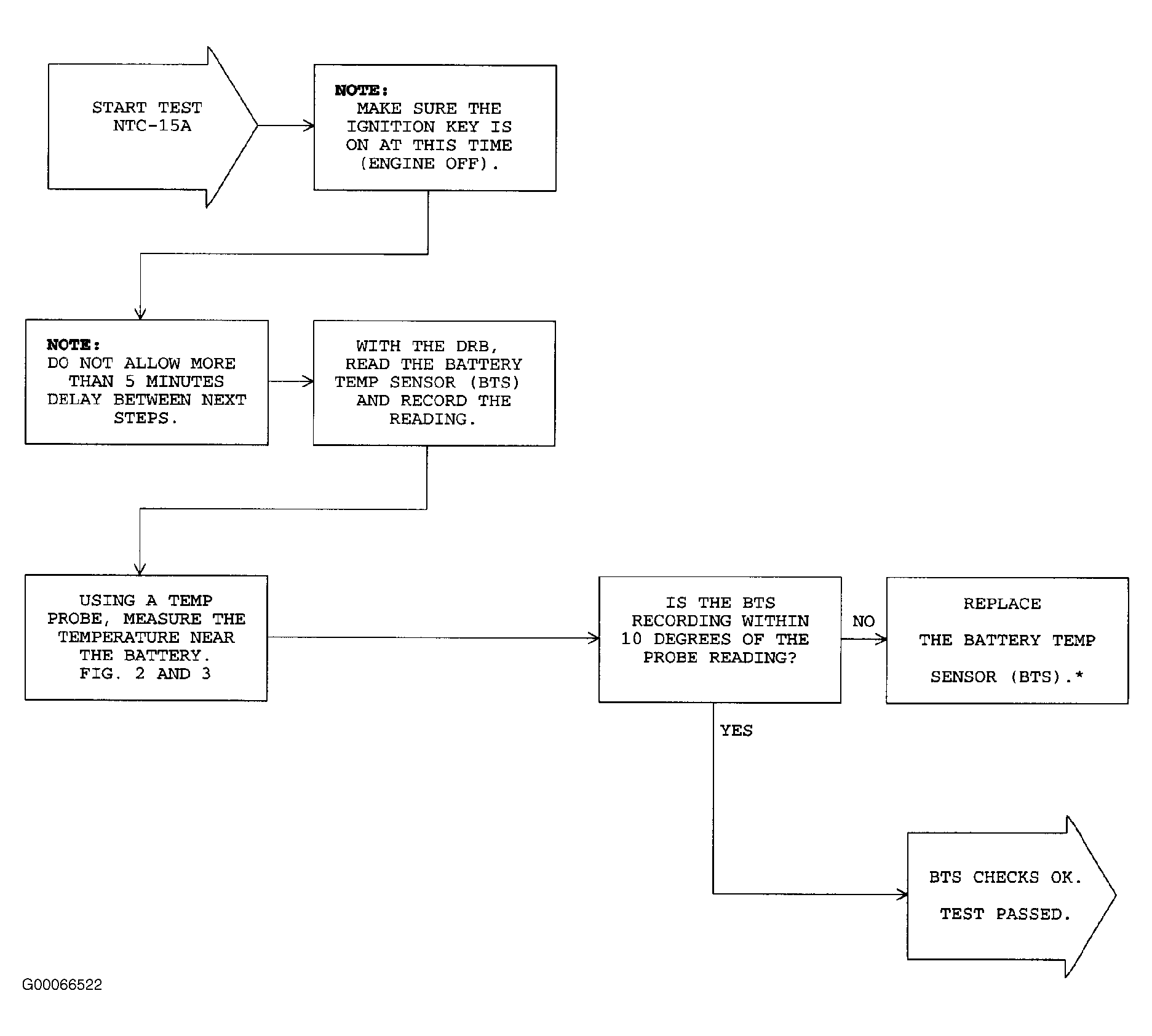

Fig 1: NTC-15A: Checking Battery Temp Sensor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

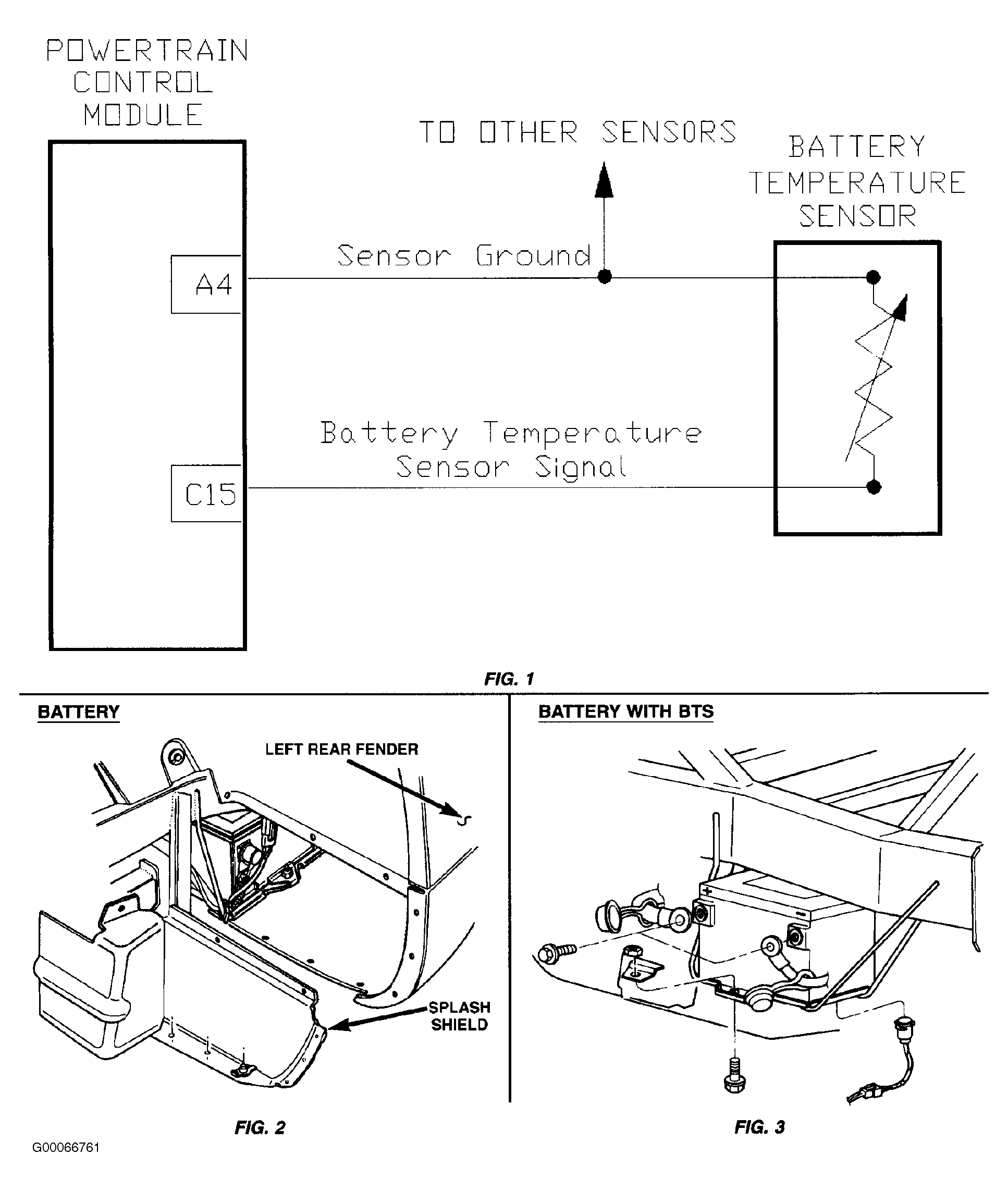

Fig 2: NTC-15A: Checking Battery Temp Sensor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
