Test NTC-10B: Checking Oxygen Sensor Switching

NOTE: Perform Test NTC-10A: Before Proceeding

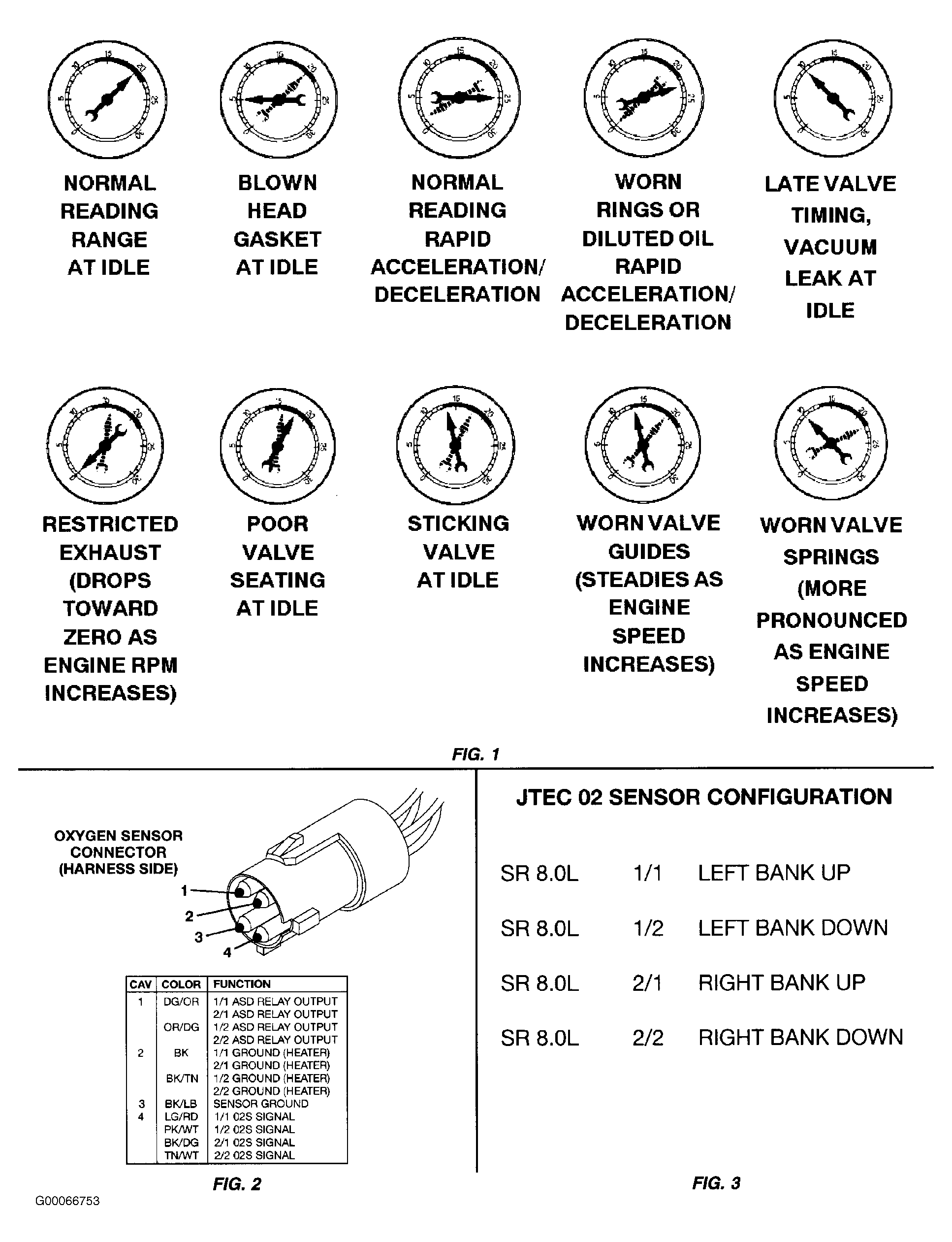

Fig 1: NTC-10B: Checking Oxygen Sensor Switching (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

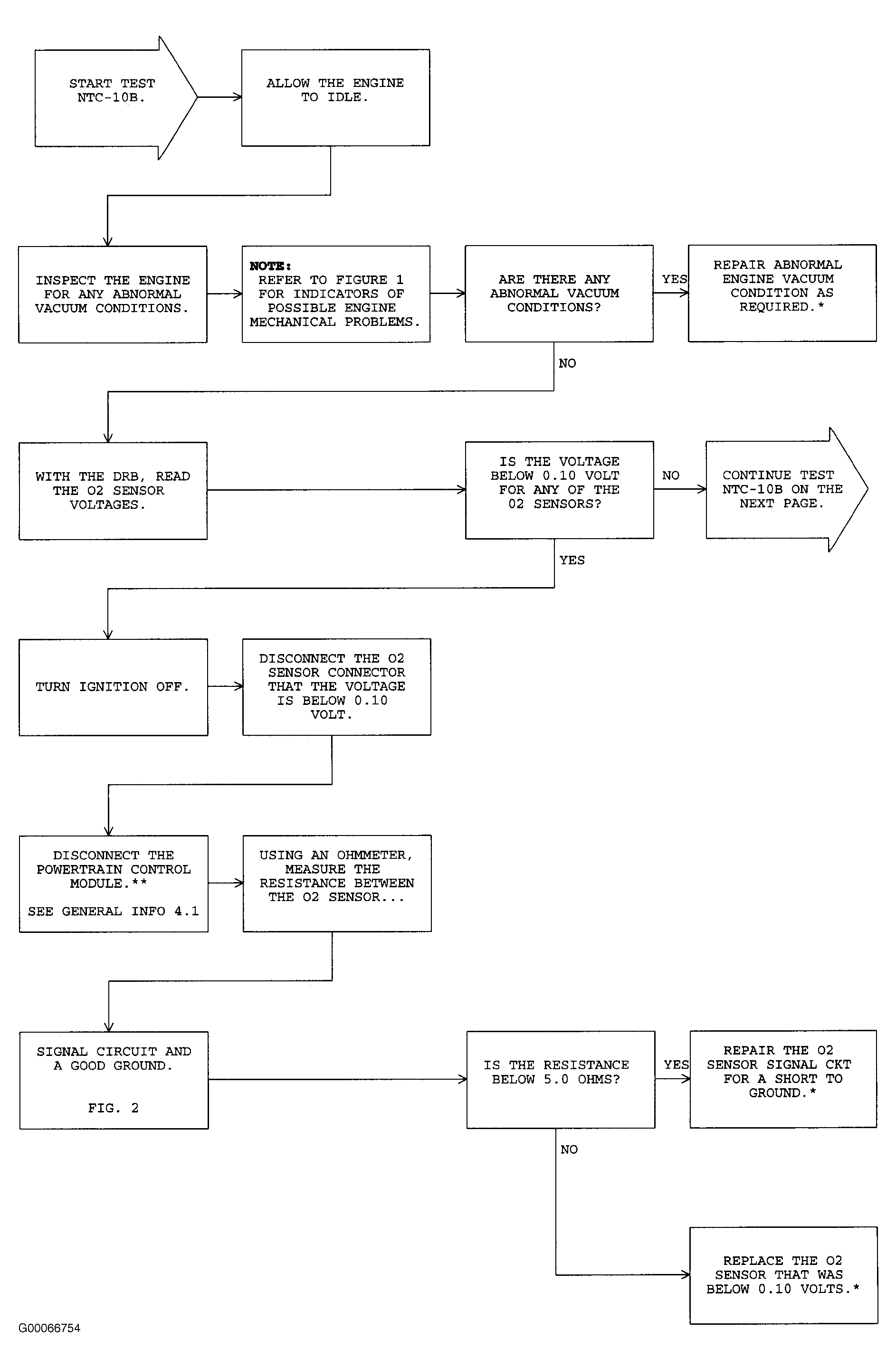

Fig 2: NTC-10B: Checking Oxygen Sensor Switching (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

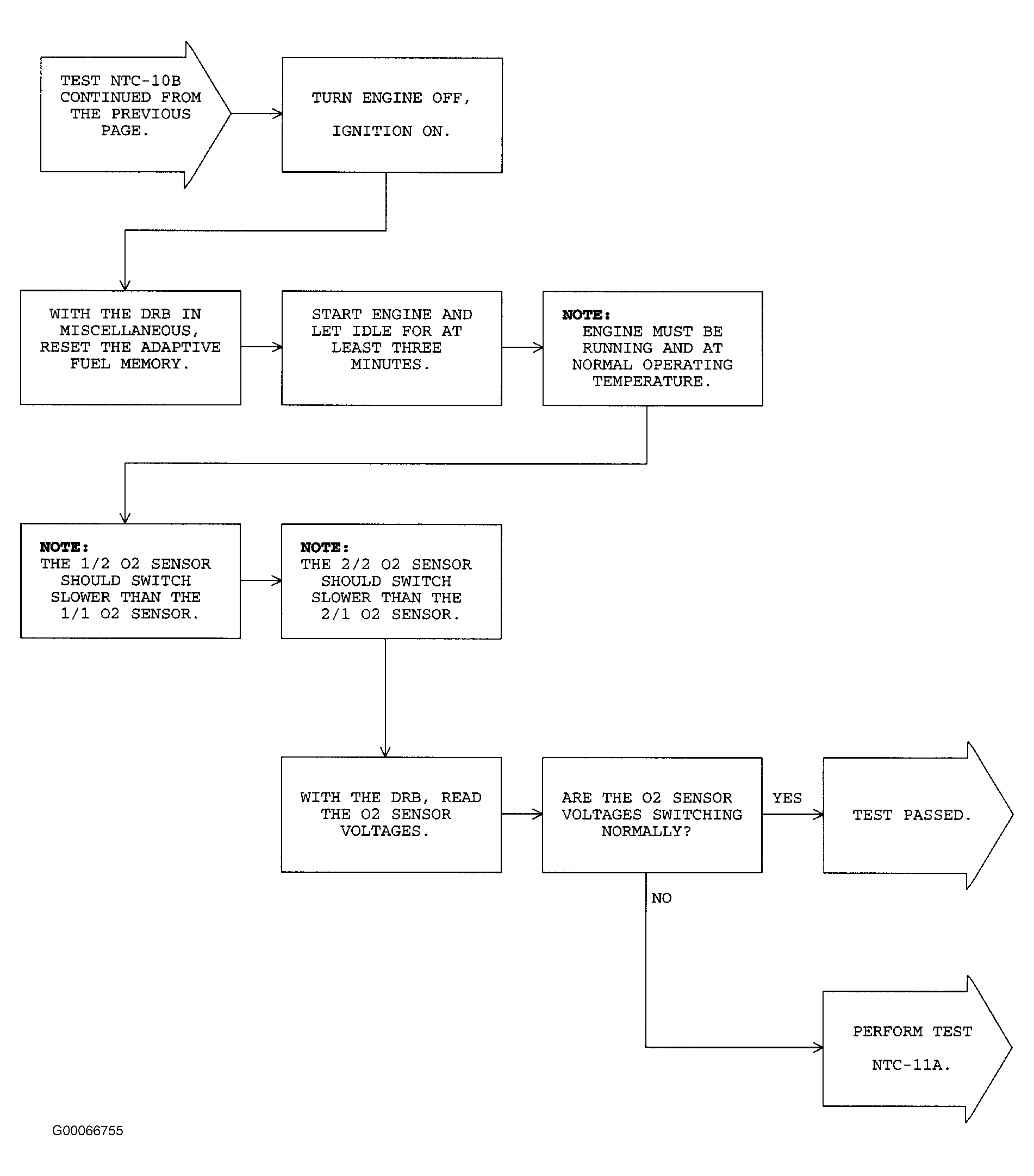

Fig 3: NTC-10B: Checking Oxygen Sensor Switching (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
