Power Window Regulator: Removal

  1. Remove door trim panel. See DOOR TRIM PANEL
  2. Remove inner belt weatherstrip.
  3. Remove door glass.
  4. Disconnect wire connector from power window motor.
  5. Remove screws attaching window regulator to inner door trim panel. See Fig 1.
  6. Remove nut attaching window regulator to bottom of door.
  7. Remove nuts attaching power window motor to inner door trim panel.
  8. Remove window regulator and motor from door.

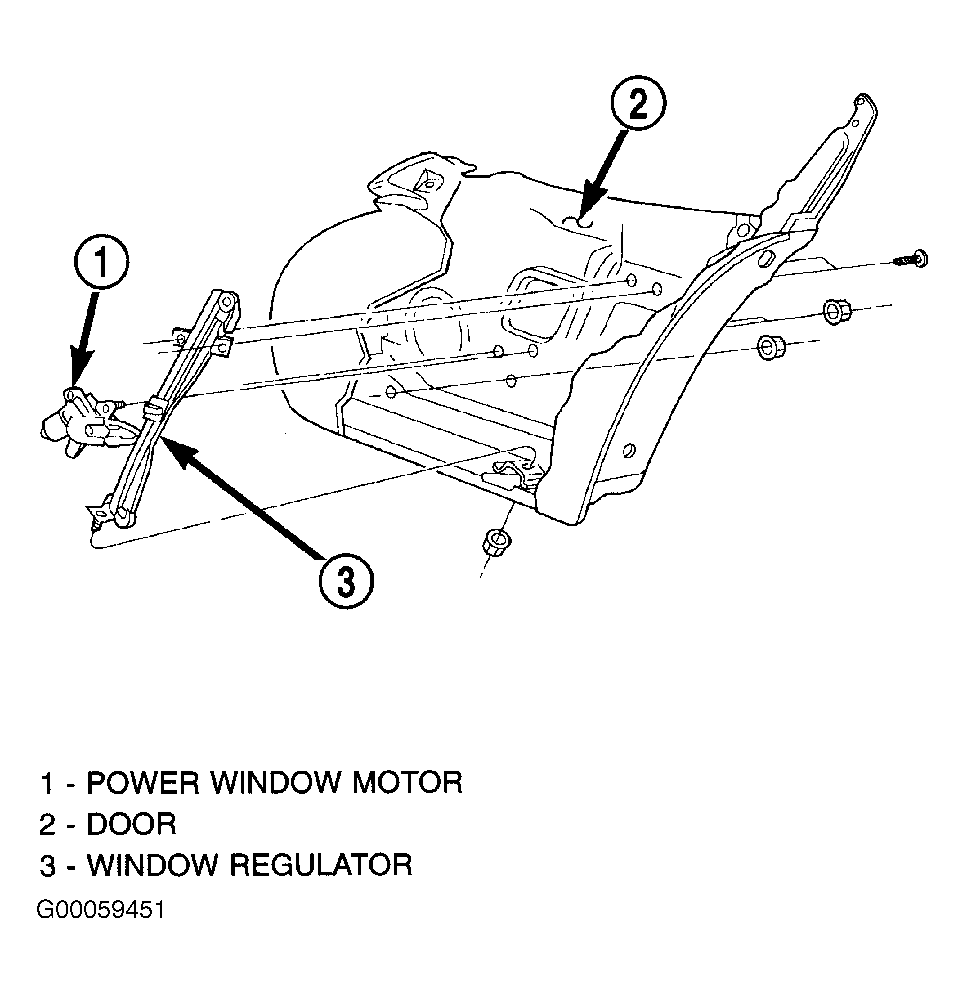

Fig 1: Door Power Window Regulator & Track Removal & Installation
G00059451Courtesy of DAIMLERCHRYSLER CORPORATION
