Removal & Installation

Remove wiring harness connectors from SCM. See Figure and Fig 1 . Depress 2 locking tabs on bottom of SCM and rotate SCM upward, until retaining tabs can be removed from steering gear. See Fig 2 . To install, reverse removal procedure.

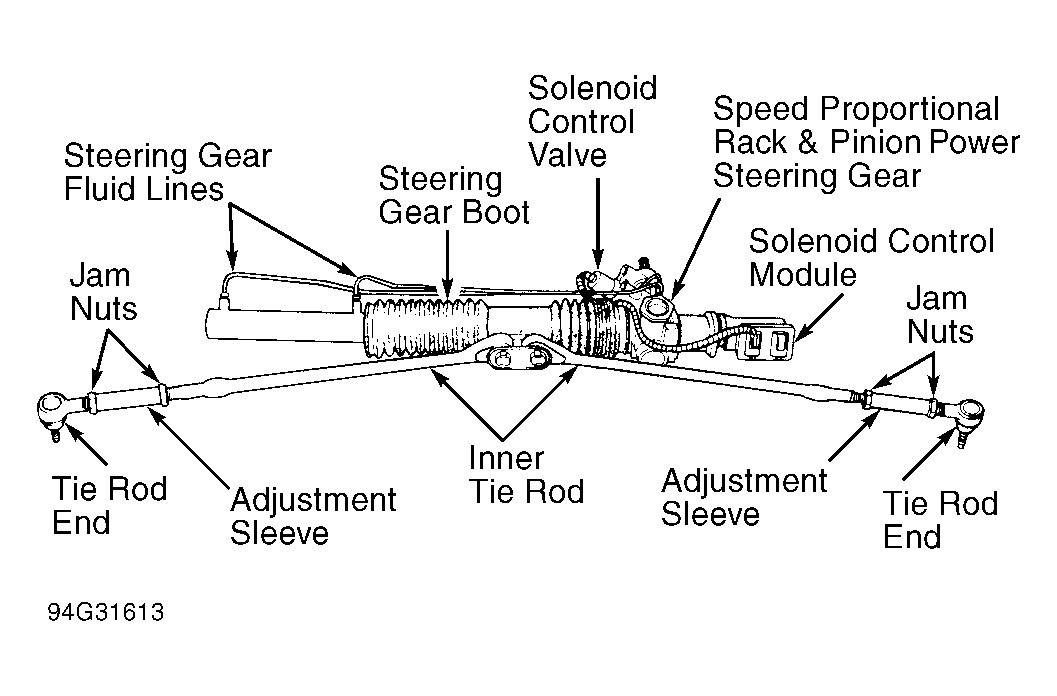

Fig 1: Locating Solenoid Control Module (Typical)

Courtesy of CHRYSLER CORP.

Fig 2: Removing Solenoid Control Module (Typical)

Courtesy of CHRYSLER CORP.
