TC-41A: EVAP Solenoid Circuit

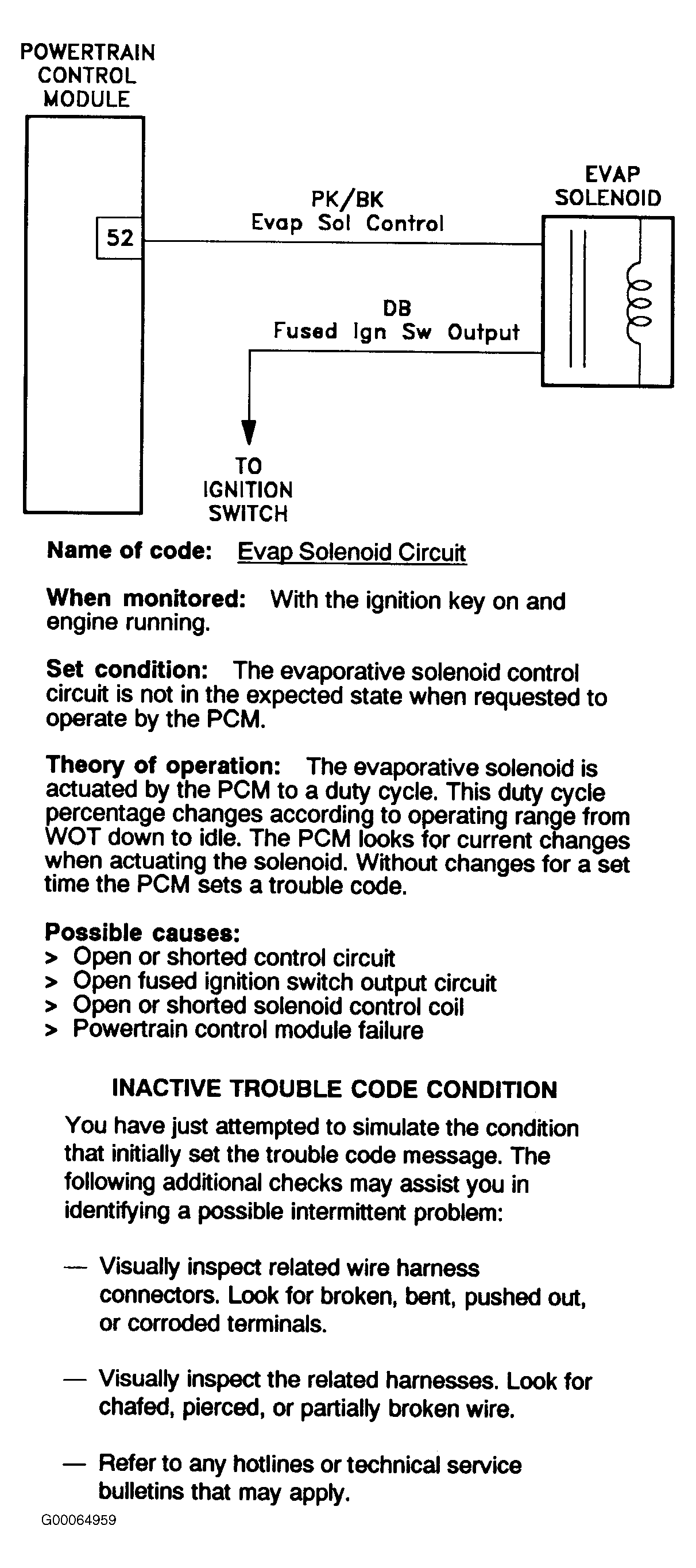

Fig 1: TC-41A: EVAP Solenoid Circuit (1 Of 6)

G00064959

Courtesy of DAIMLERCHRYSLER CORPORATION

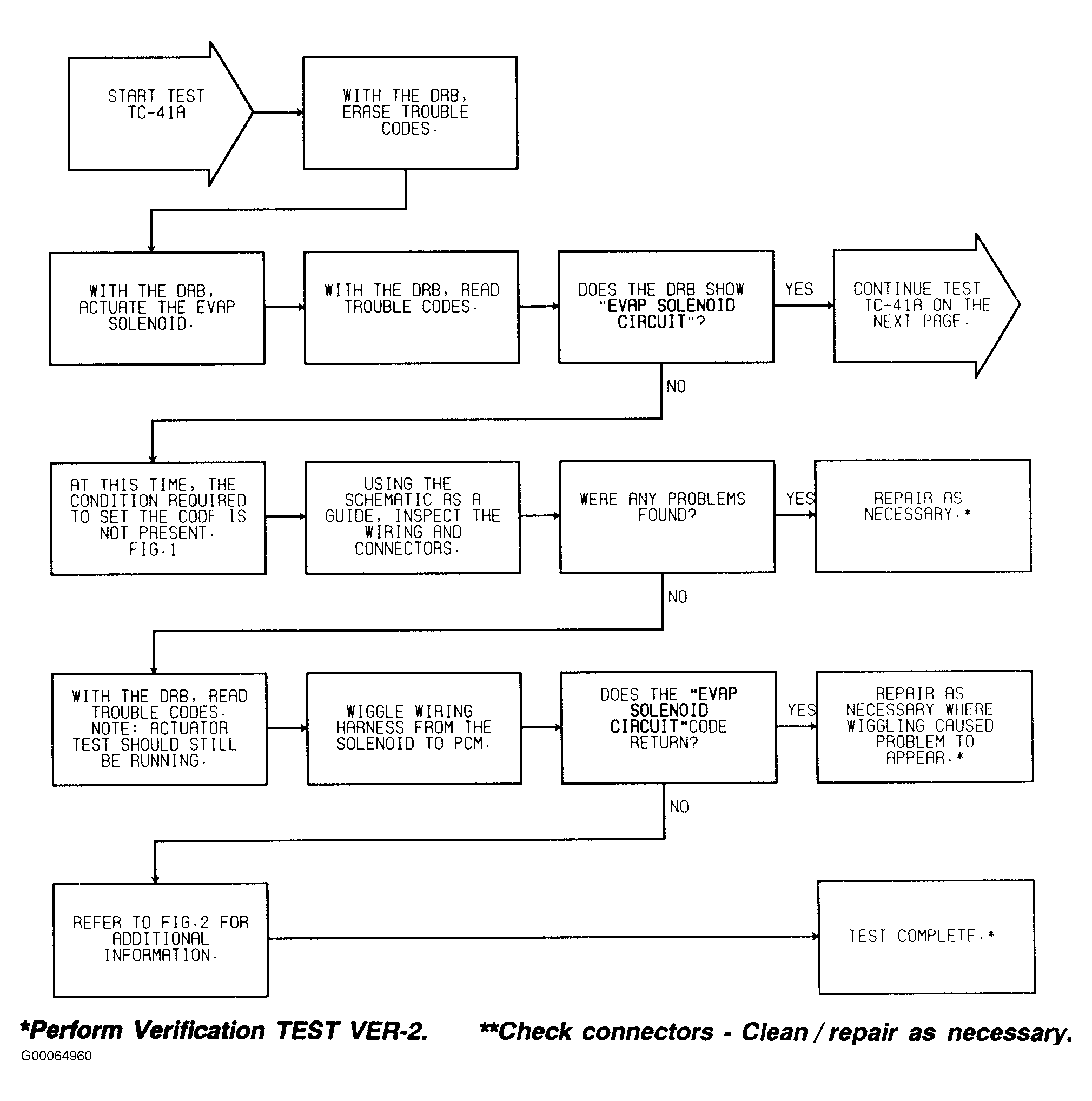

Fig 2: TC-41A: EVAP Solenoid Circuit (2 Of 6)

G00064960

Courtesy of DAIMLERCHRYSLER CORPORATION

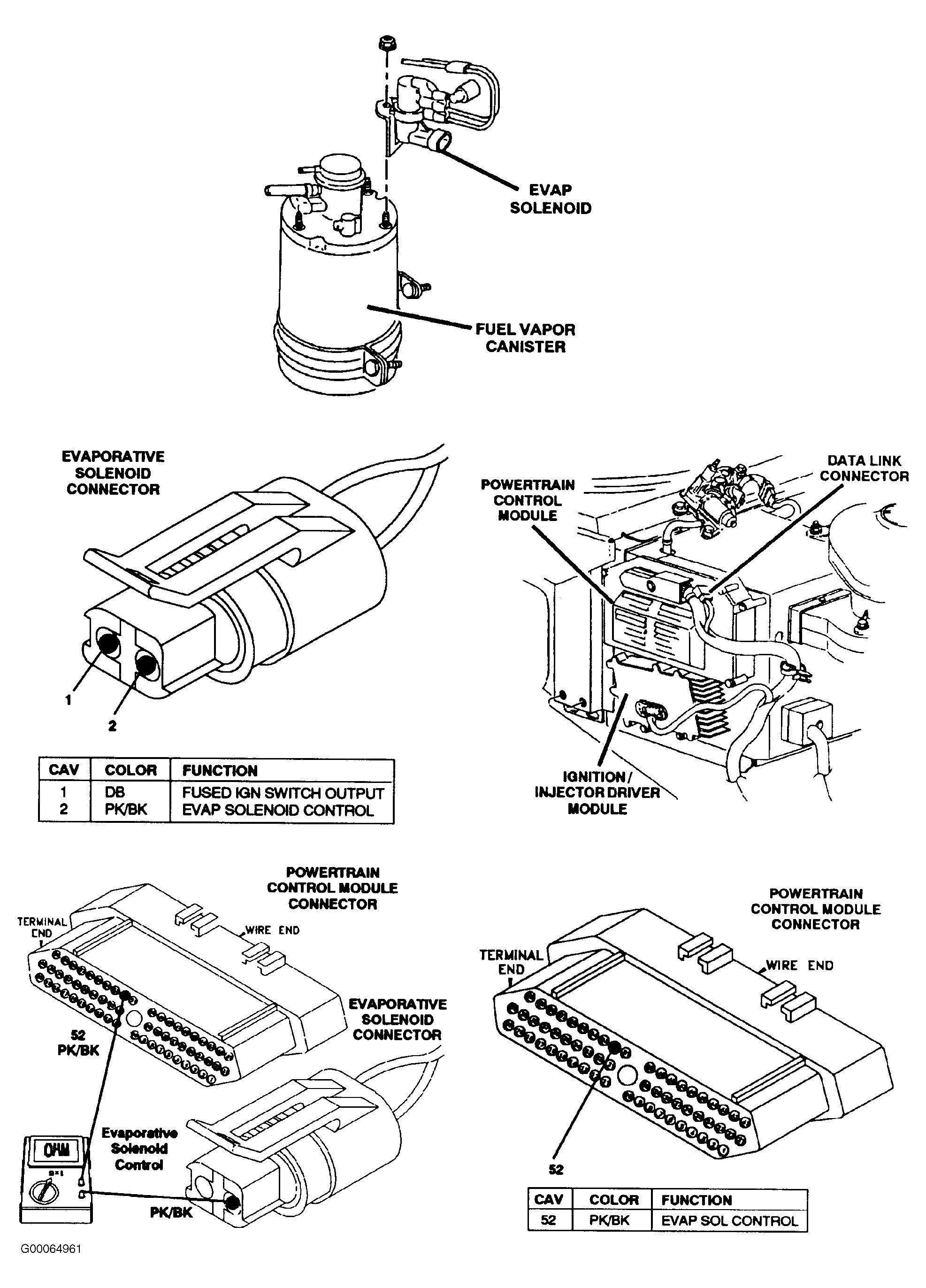

Fig 3: TC-41A: EVAP Solenoid Circuit (3 Of 6)

G00064961

Courtesy of DAIMLERCHRYSLER CORPORATION

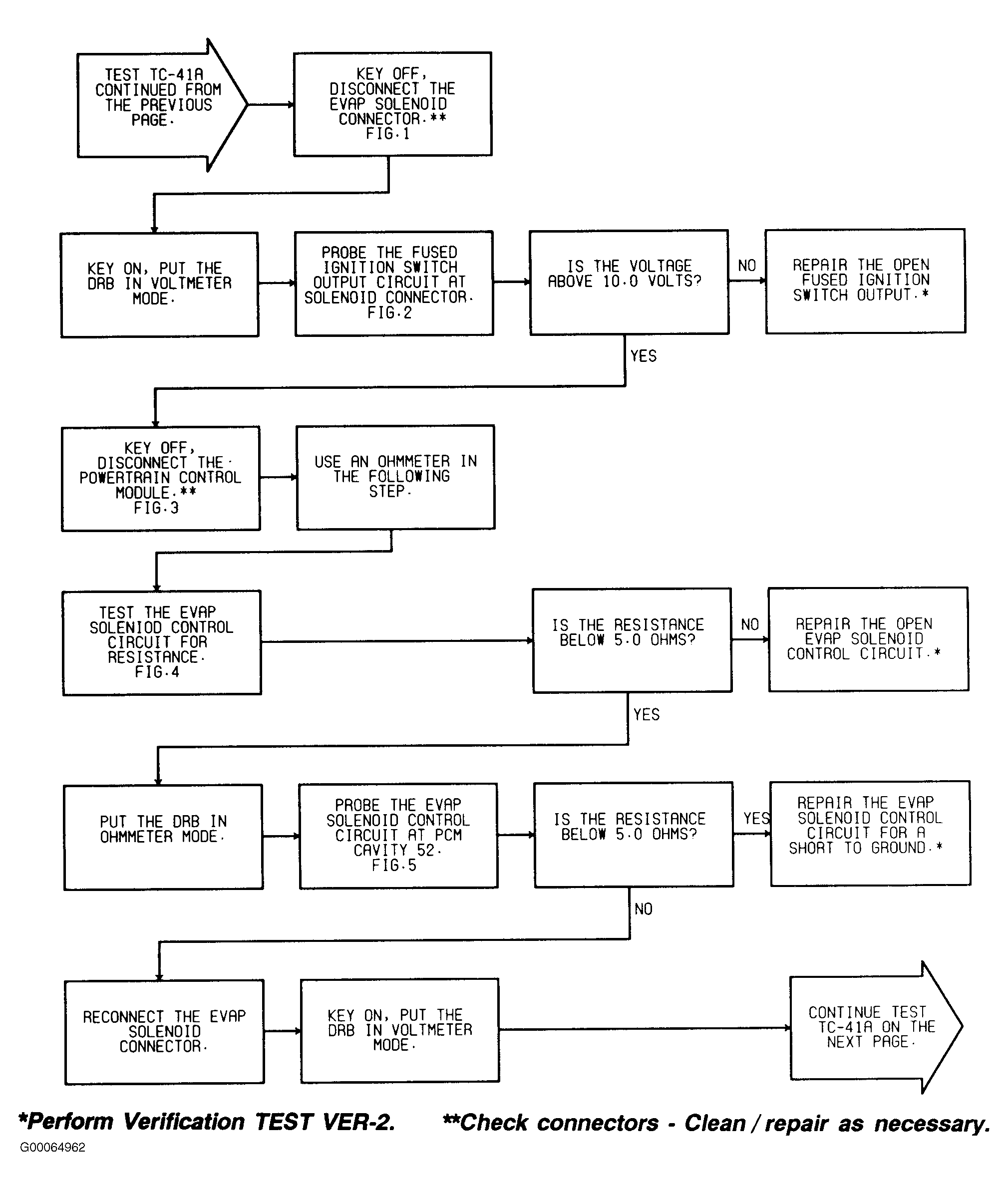

Fig 4: TC-41A: EVAP Solenoid Circuit (4 Of 6)

G00064962

Courtesy of DAIMLERCHRYSLER CORPORATION

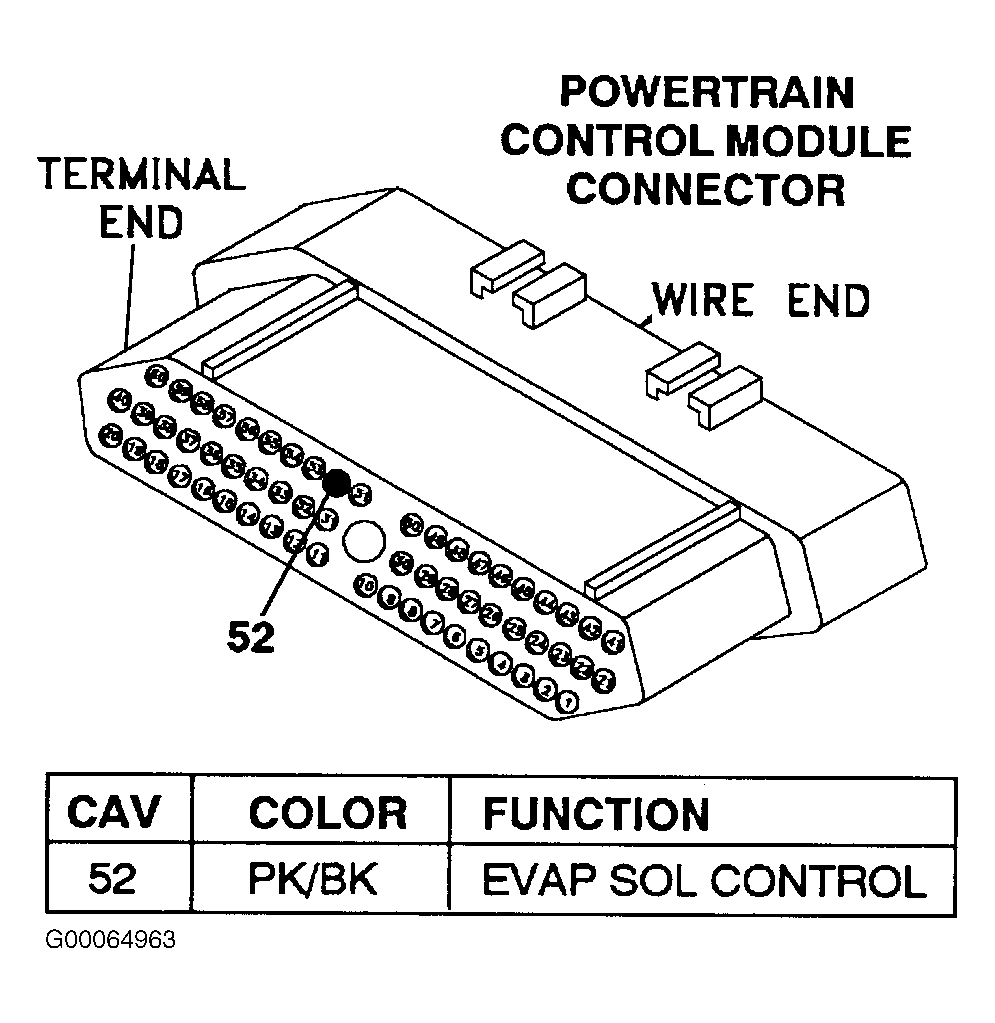

Fig 5: TC-41A: EVAP Solenoid Circuit (5 Of 6)

G00064963

Courtesy of DAIMLERCHRYSLER CORPORATION

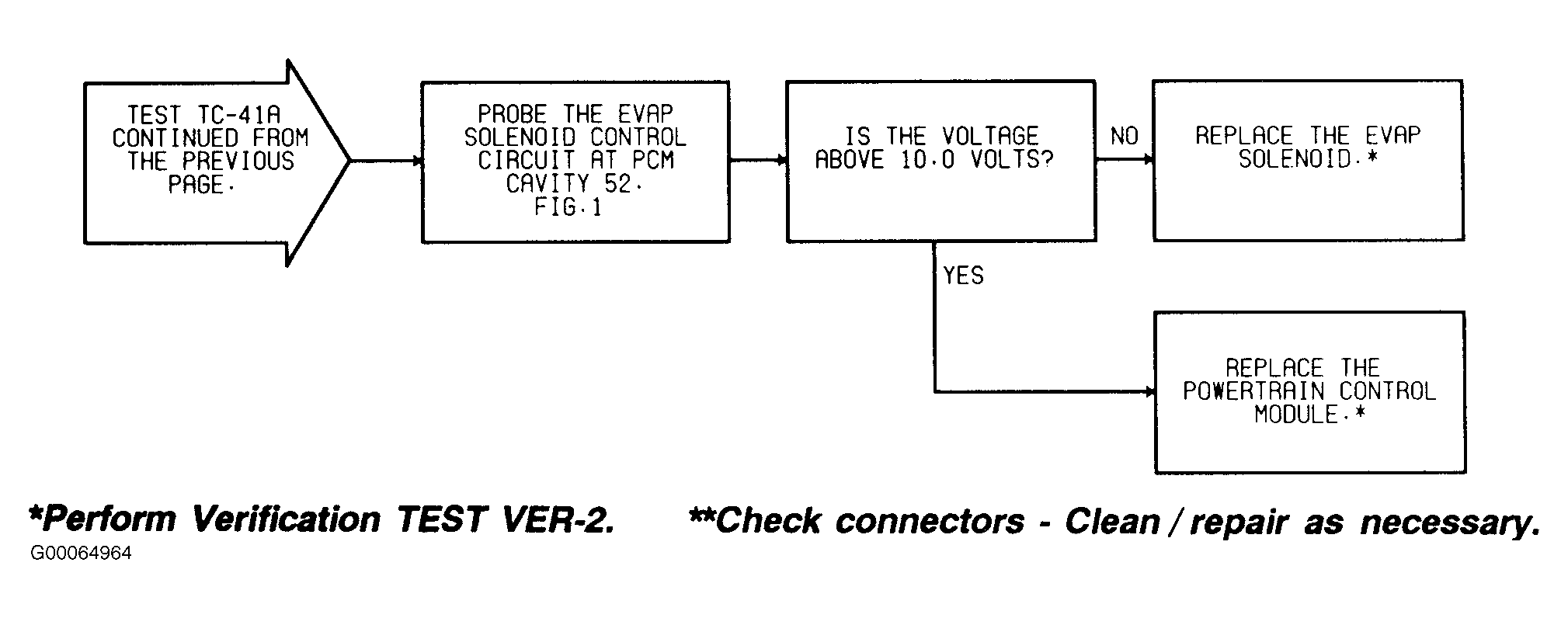

Fig 6: TC-41A: EVAP Solenoid Circuit (6 Of 6)

G00064964

Courtesy of DAIMLERCHRYSLER CORPORATION
