Test 14A: Repairing RKE Arm/Disarm Function

NOTE: Perform Test 1A  before proceeding. For Diagnostic flow chart, see Fig 1 . For Figure references within flow charts, refer to .

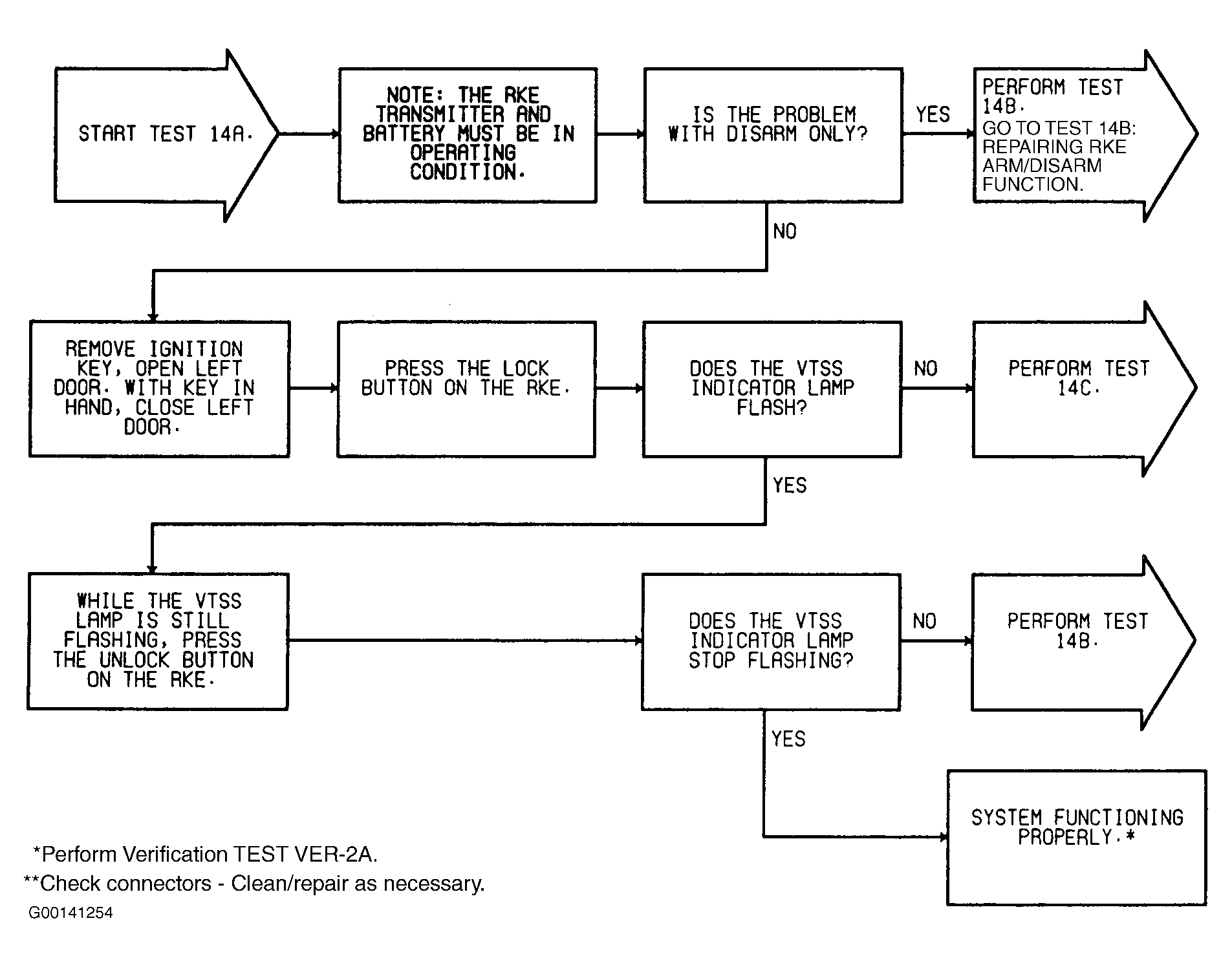

Fig 1: Test 14A: Repairing RKE Arm/Disarm Function Diagnostic Flow Chart

Courtesy of CHRYSLER CORP.

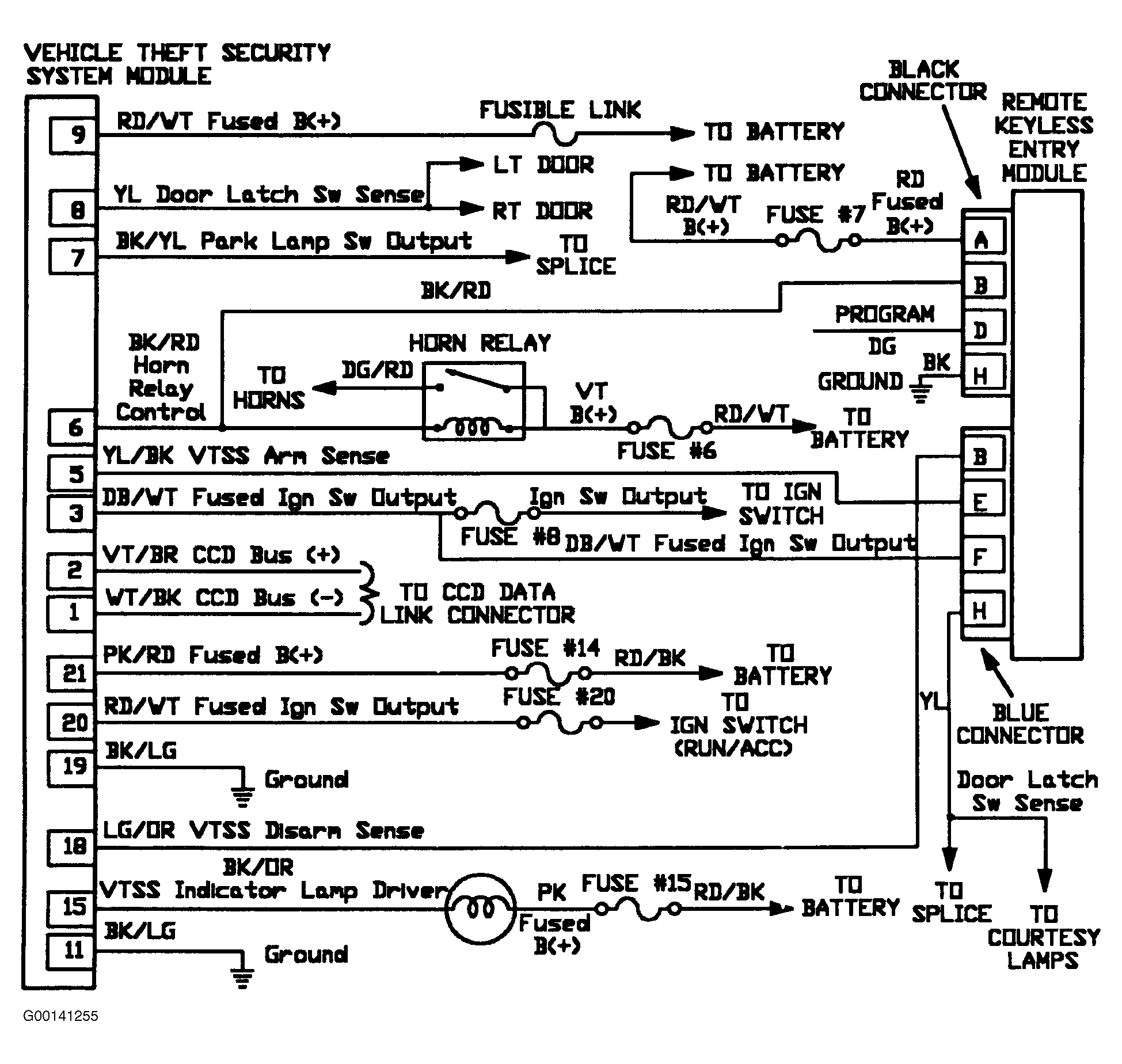

Fig 2: TEST 14A: Circuit Connector Views & Component Locations

Courtesy of CHRYSLER CORP.
