Test 49A - Checking Wiring & Sending Unit For Proper

OPERATION

Fig 1: Test 49A Schematic - Checking Wiring & Sending Unit for Proper Operation
G91I14678

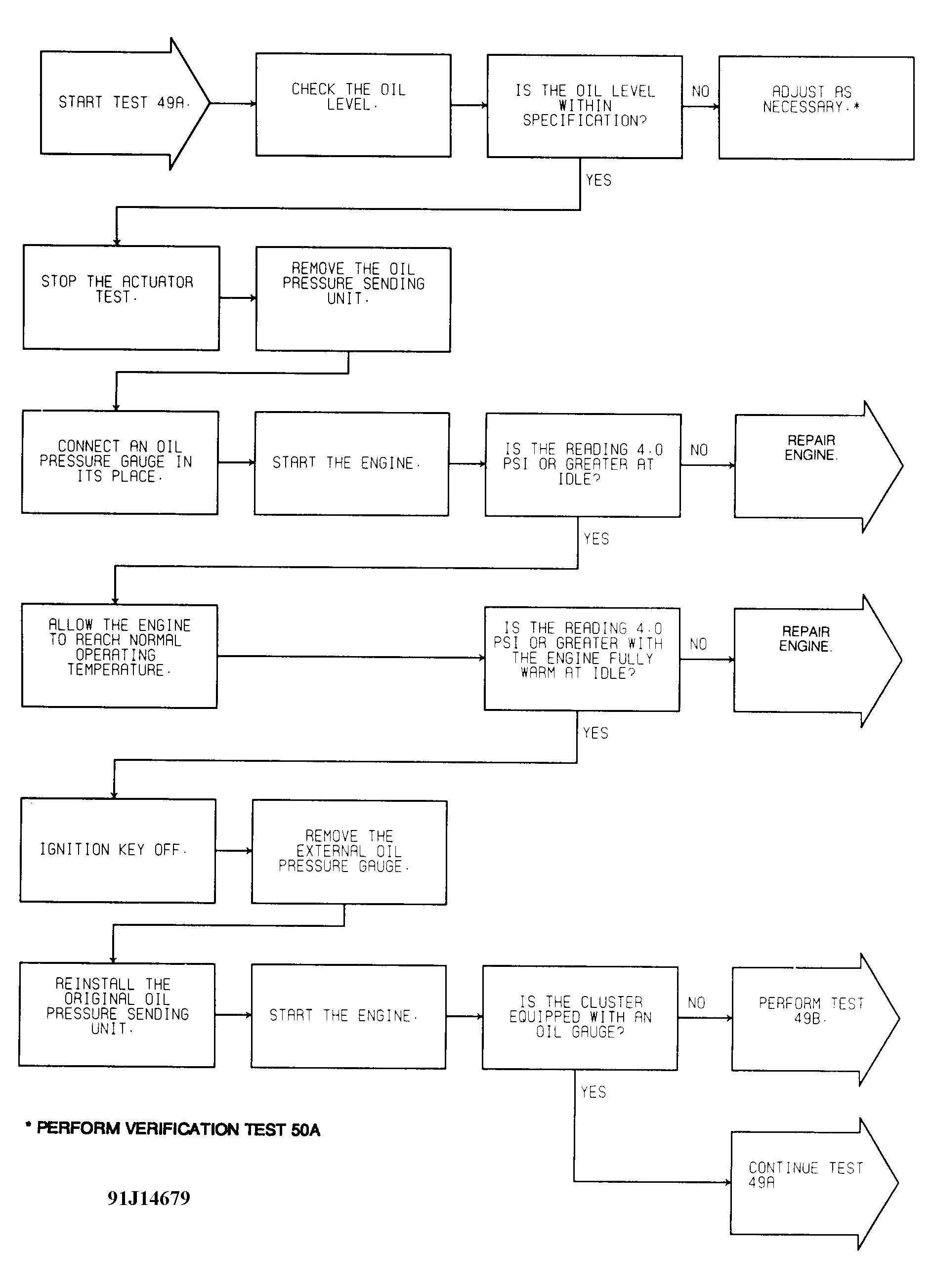

Fig 2: Test 49A Flow Chart (1 of 3) - Checking Wiring & Sending Unit for Proper Operation
G91J14679

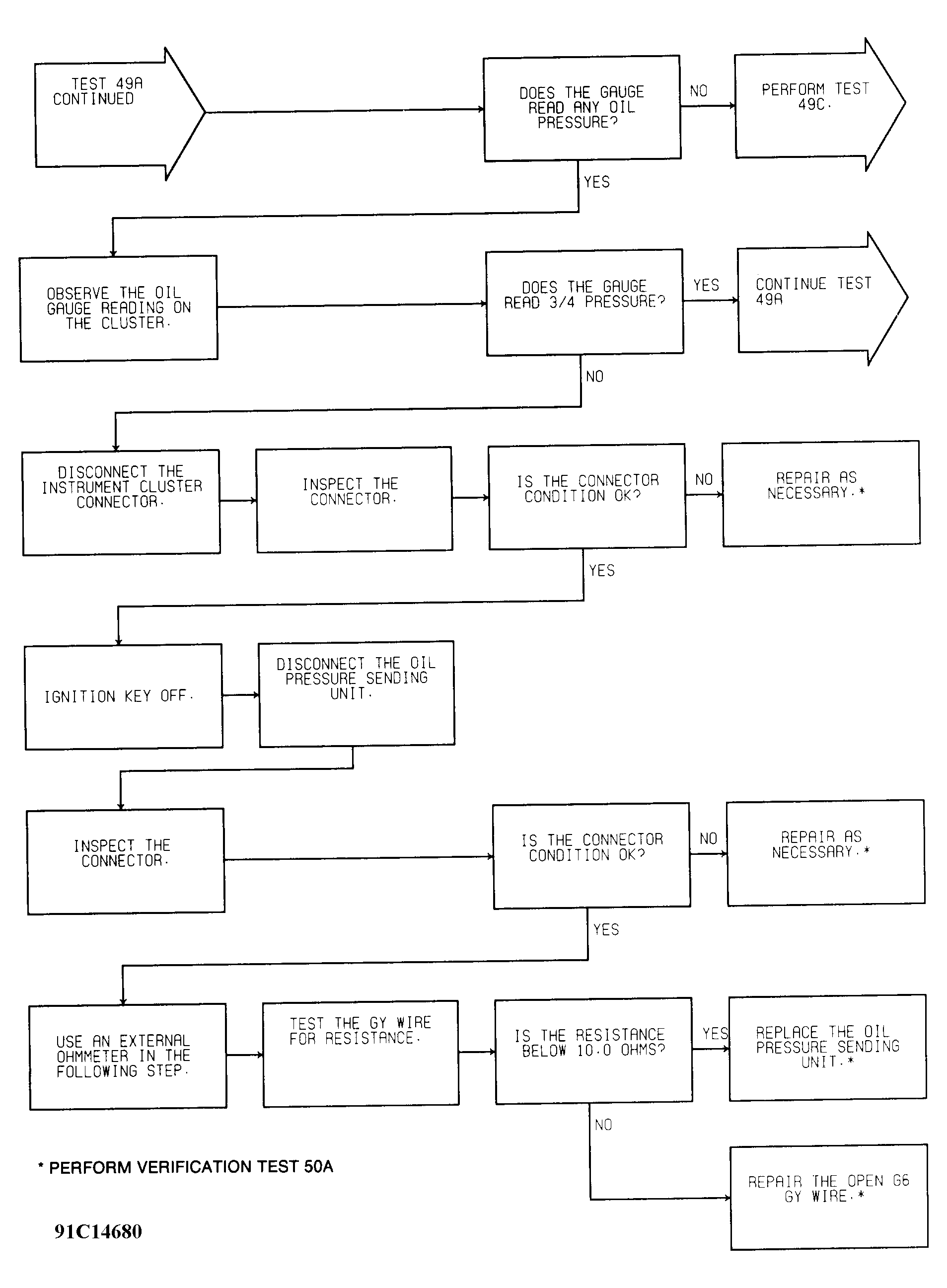

Fig 3: Test 49A Flow Chart (2 of 3) - Checking Wiring & Sending Unit for Proper Operation
G91C14680

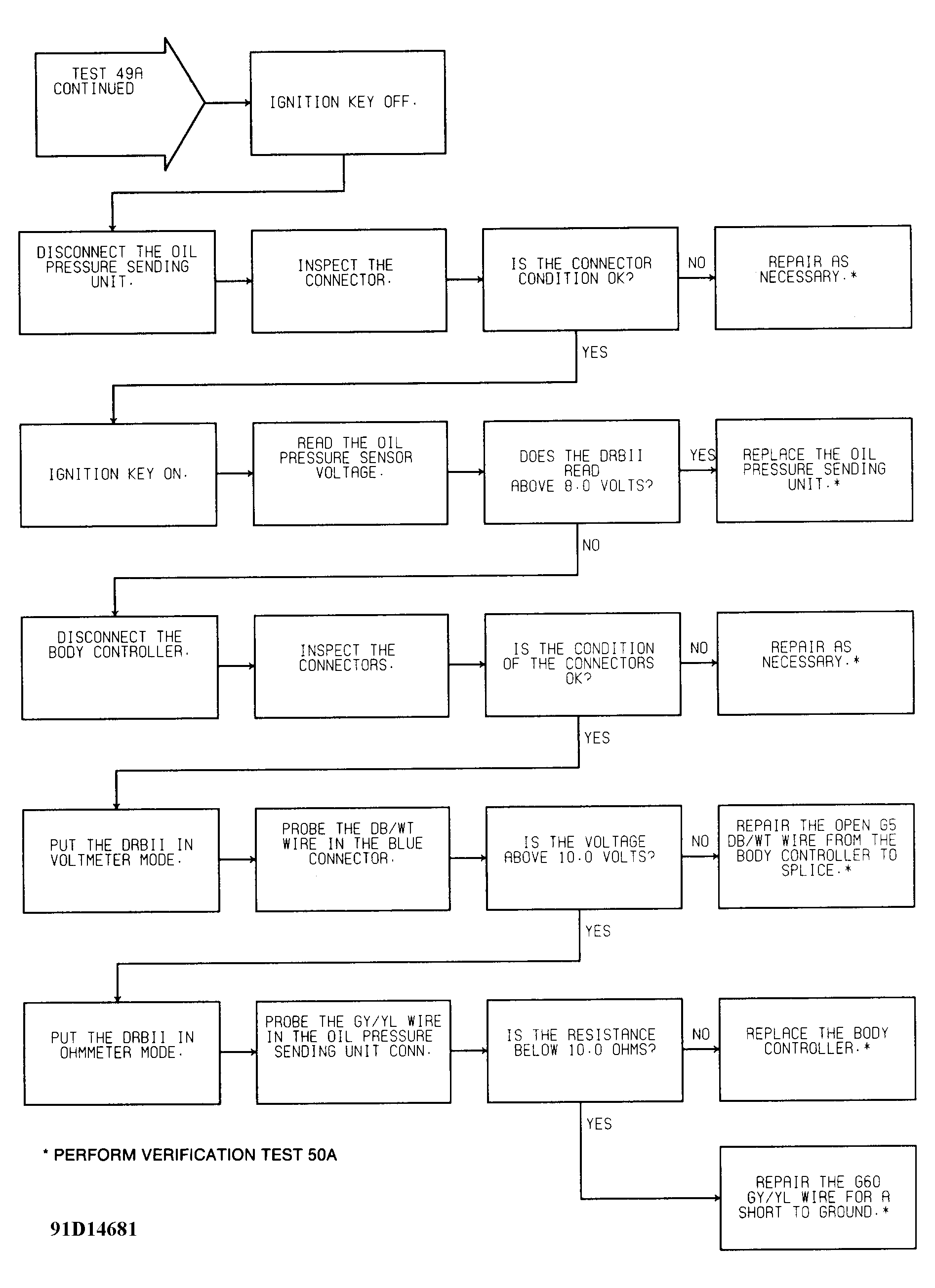

Fig 4: Test 49A Flow Chart (3 of 3) - Checking Wiring & Sending Unit for Proper Operation
G91D14681
