Test 37B - Headlight Time Delay Will Not Work
Test 37B - Headlight Time Delay Will Not Work

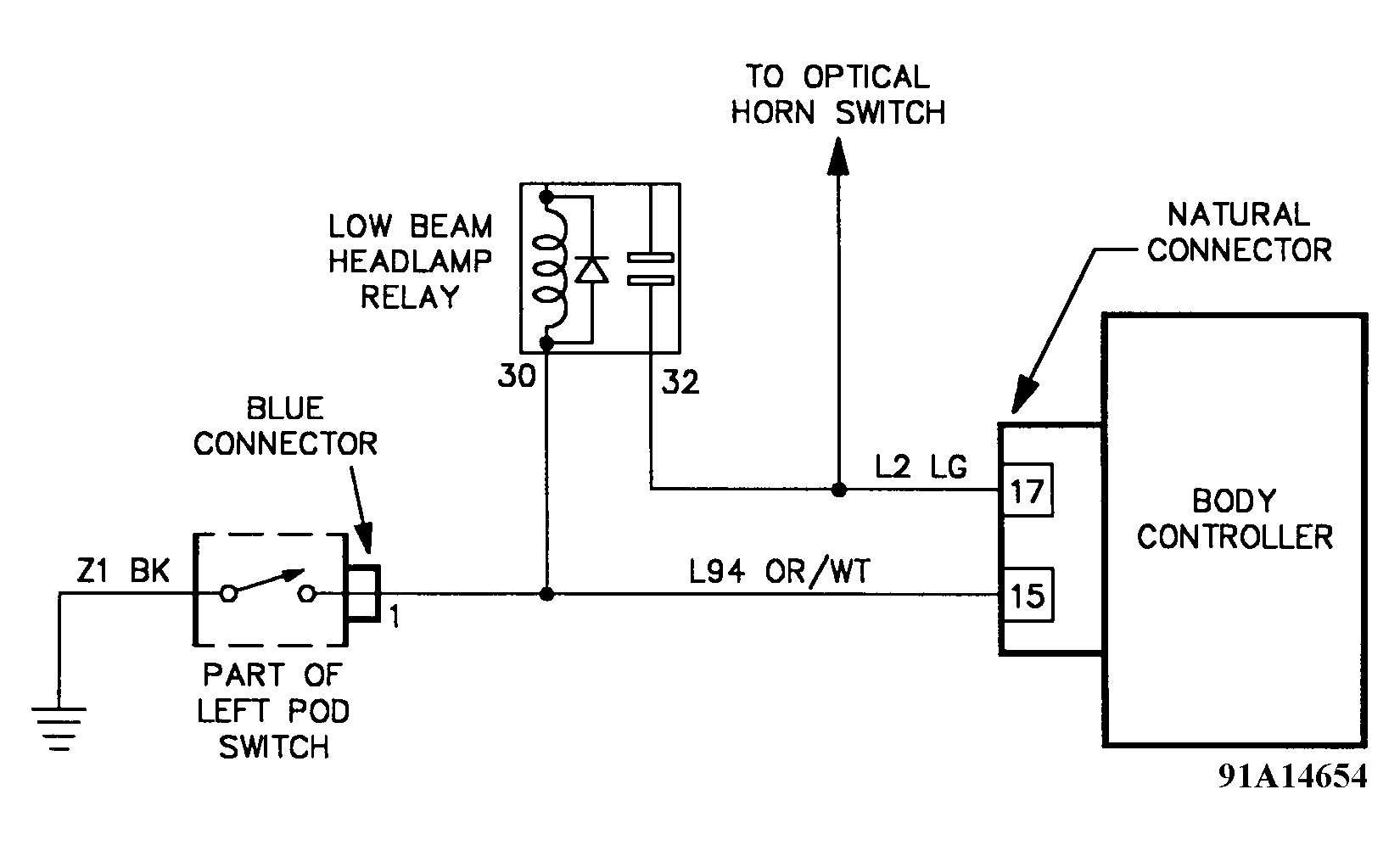

Fig 1: Test 37B Schematic - Headlight Time Delay Will Not Work

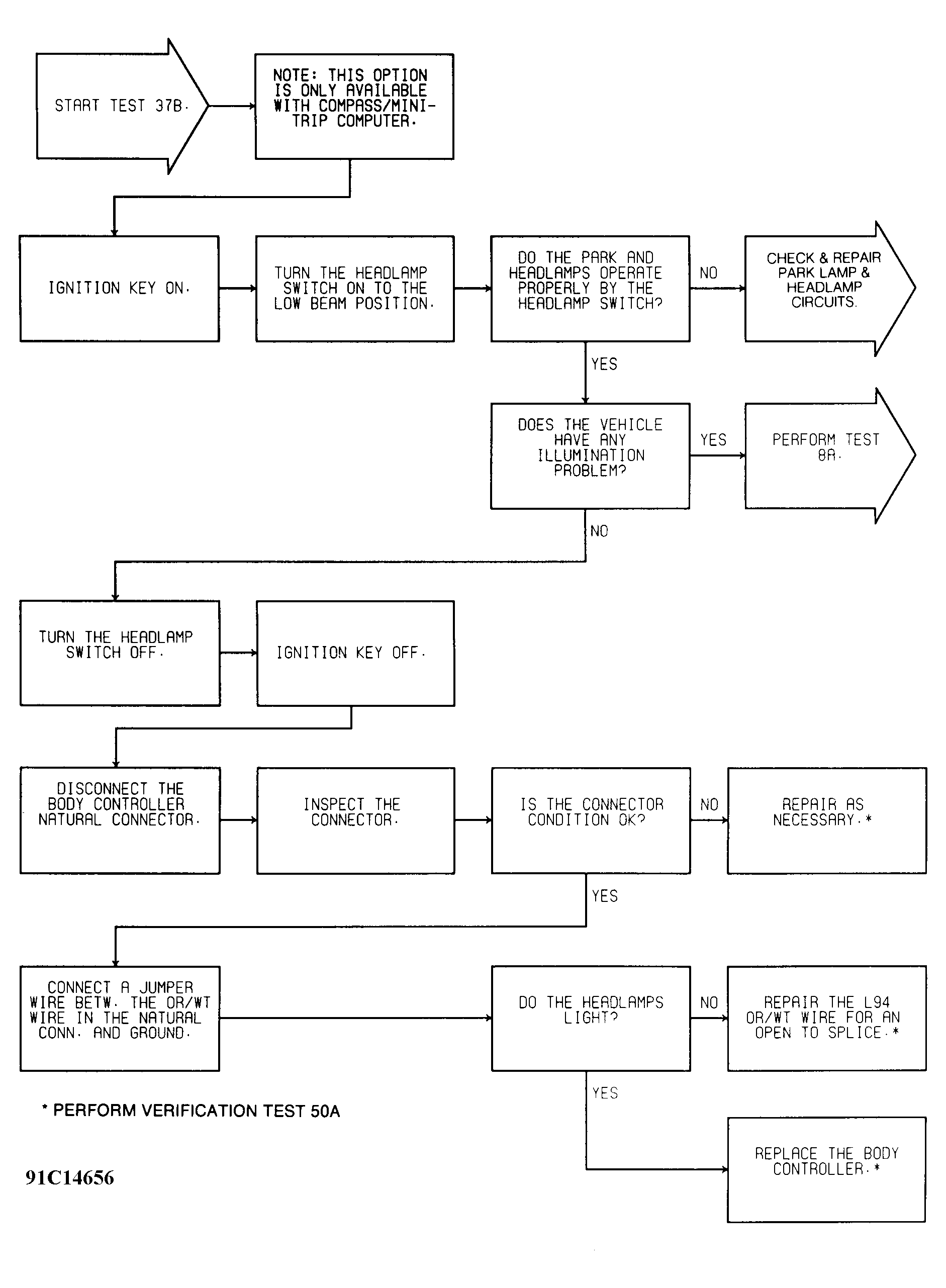

Fig 2: Test 37B Flow Chart - Headlight Time Delay Will Not Work
