Test 28C - Checking Wiring & Body Controller For Shorts

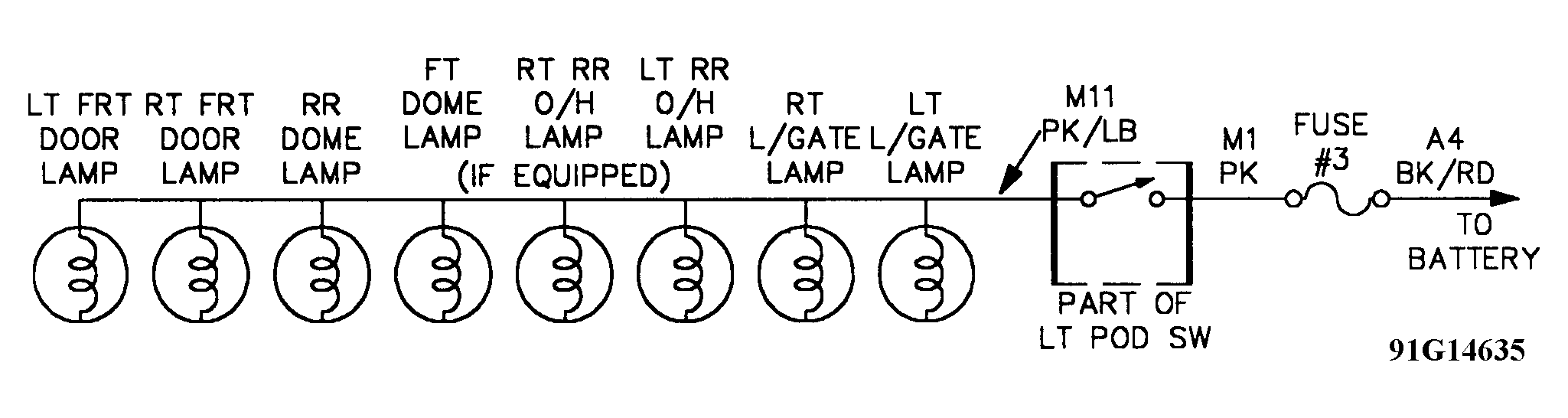

Fig 1: Test 28C Schematic - Checking Wiring & Body Controller for Shorts
G91G14635

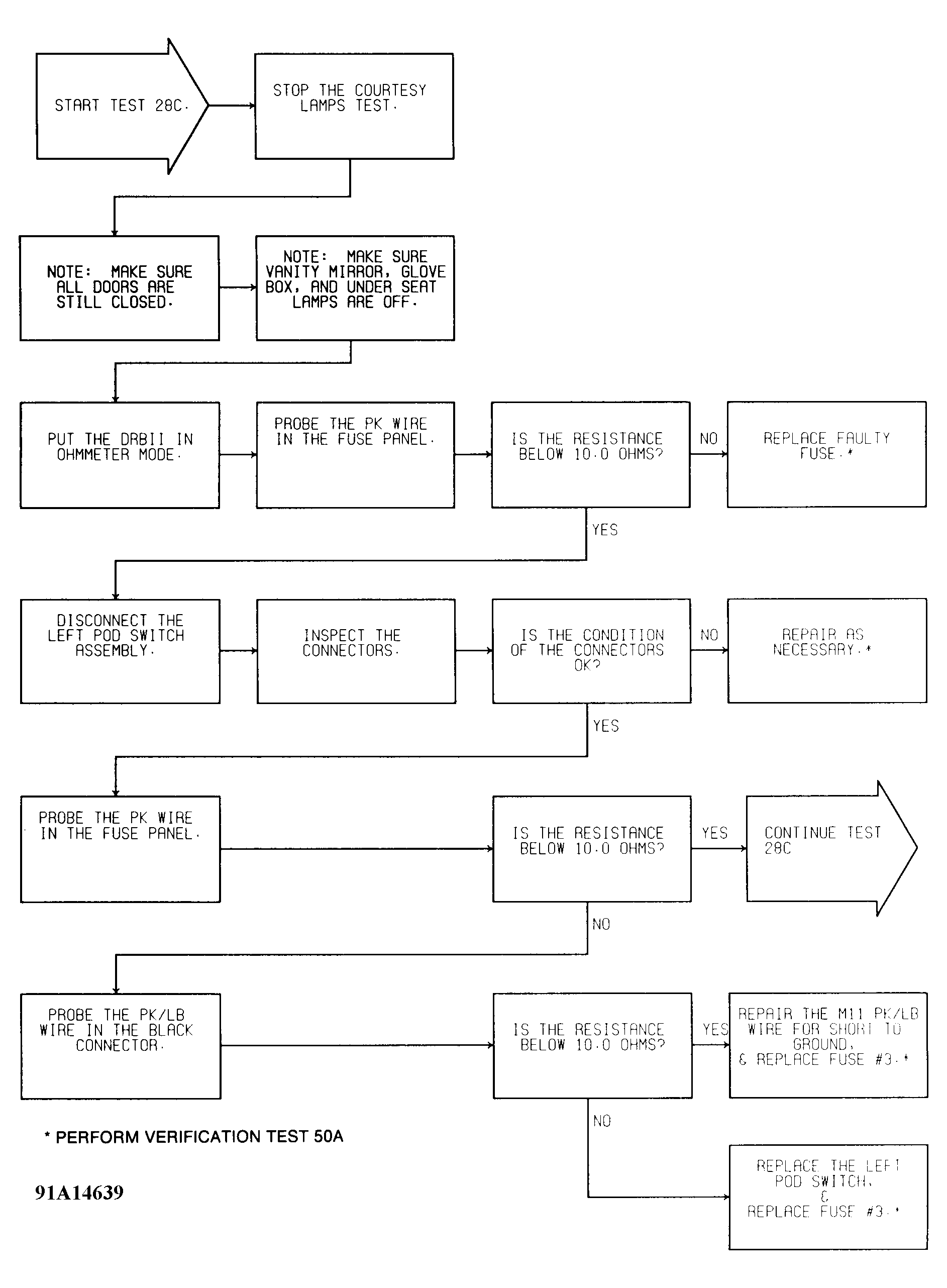

Fig 2: Test 28C Flow Chart (1 of 2) - Checking Wiring & Body Controller for Shorts
G91A14639

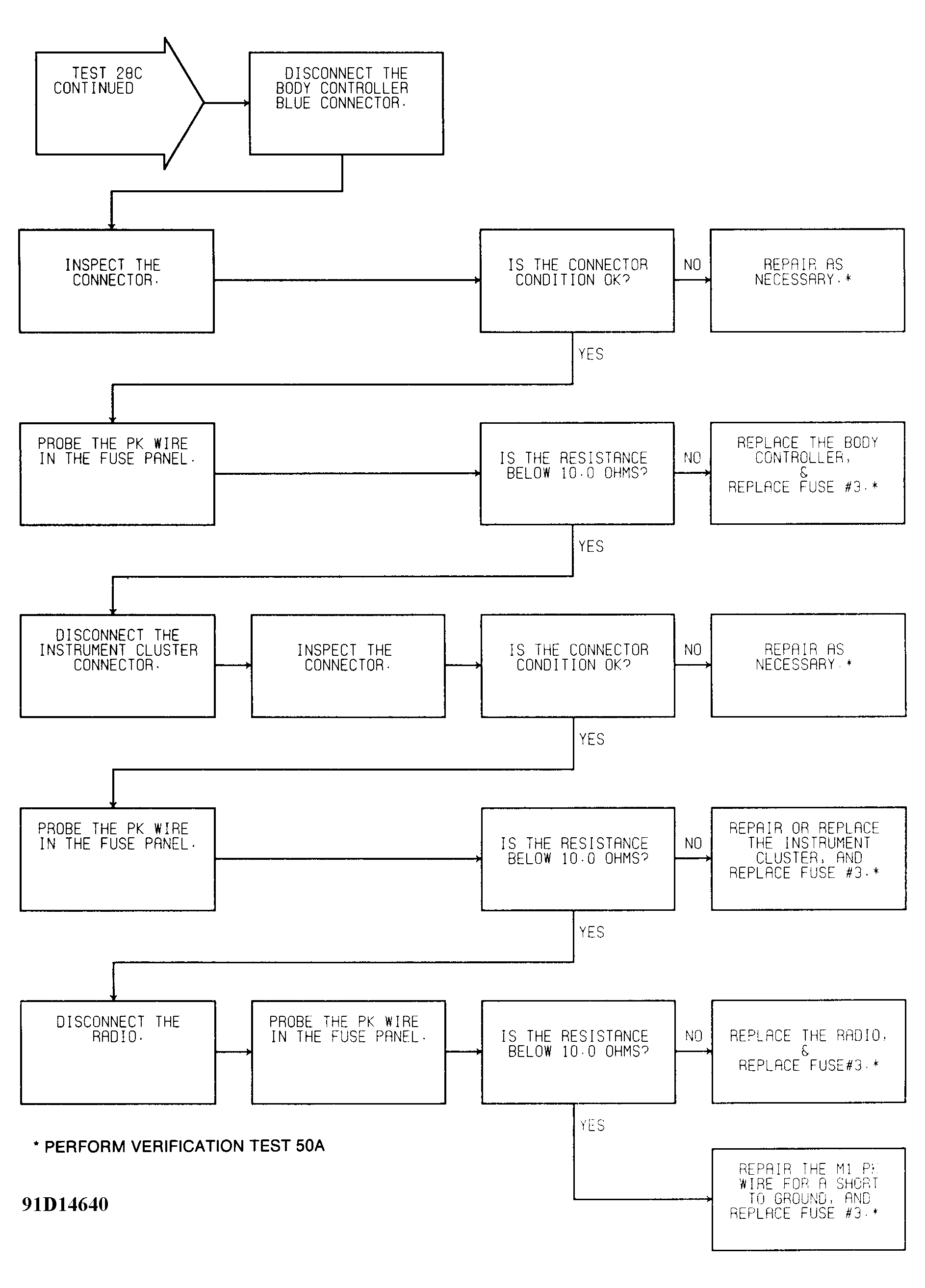

Fig 3: Test 28C Flow Chart (2 of 2) - Checking Wiring & Body Controller for Shorts
G91D14640
