Test 22A - Intermittent Wiper Problem Id

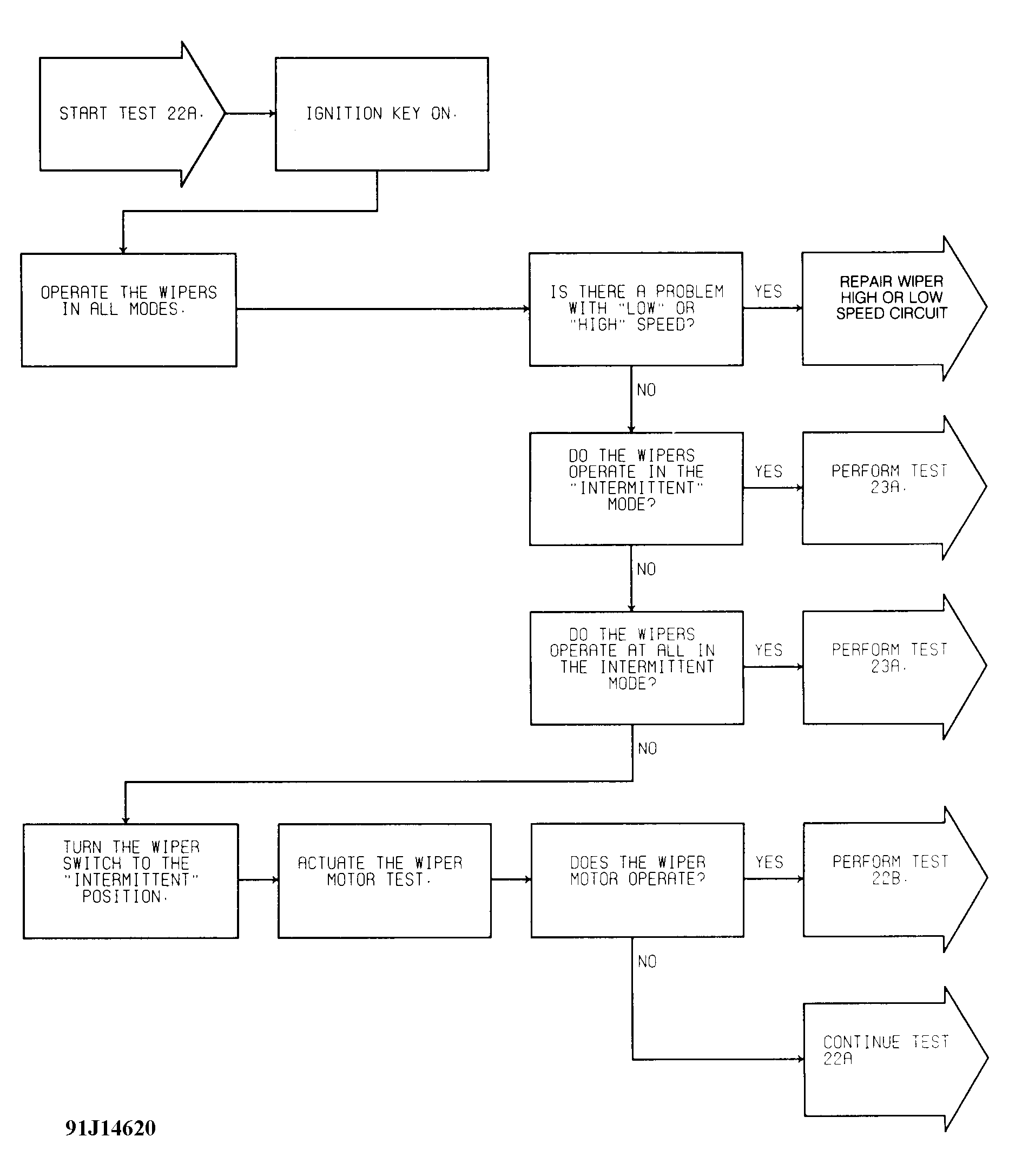

Fig 1: Test 22A Flow Chart (1 of 3) - Intermittent Wiper Problem ID

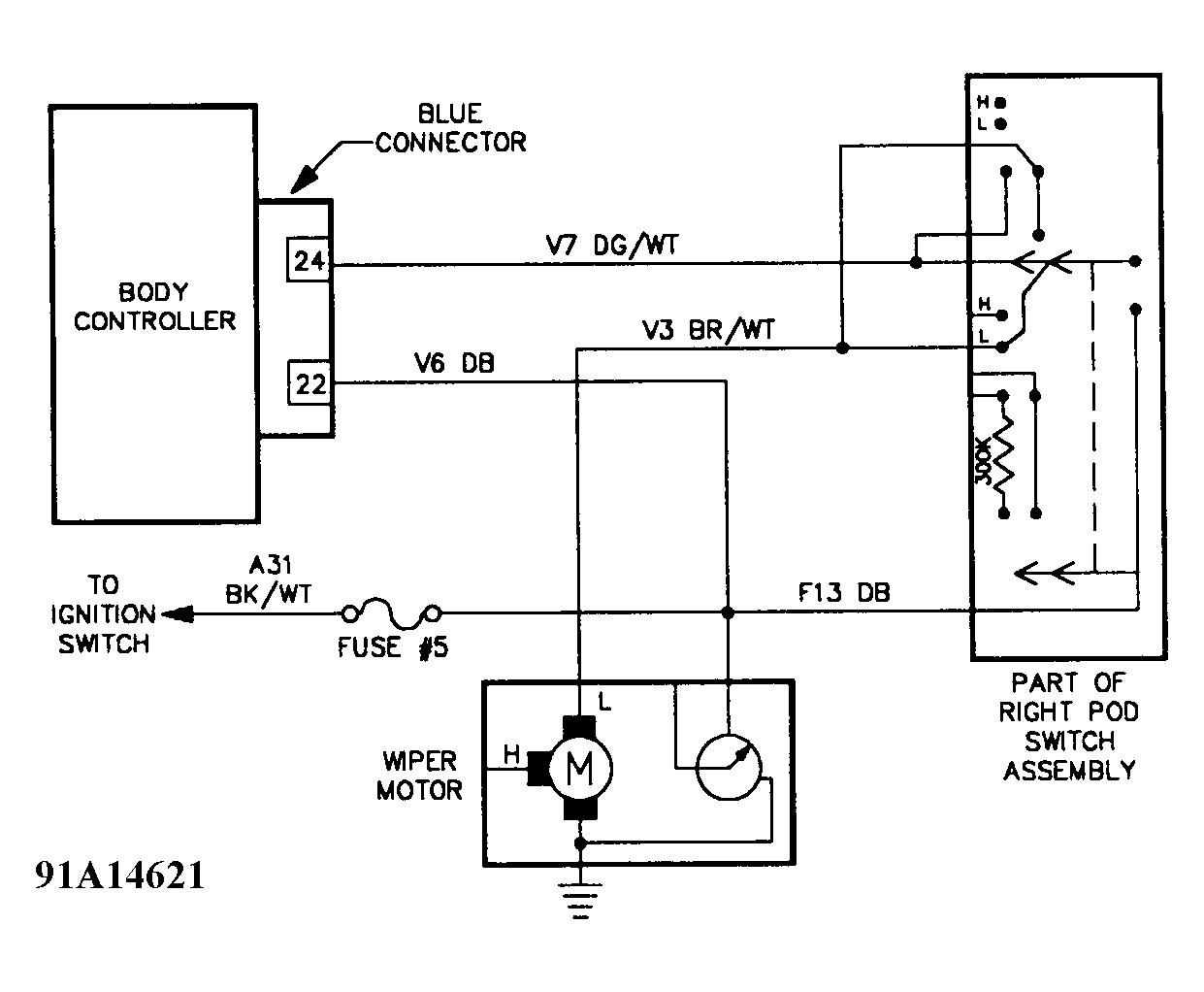

Fig 2: Test 22A Schematic - Intermittent Wiper Problem ID

Fig 3: Test 22A Flow Chart (2 of 3) - Intermittent Wiper Problem ID

Fig 4: Test 22A Flow Chart (3 of 3) - Intermittent Wiper Problem ID
