Test 12B - Faulty Warning Lamp On Base Electro/Mechanical

CLUSTER ID

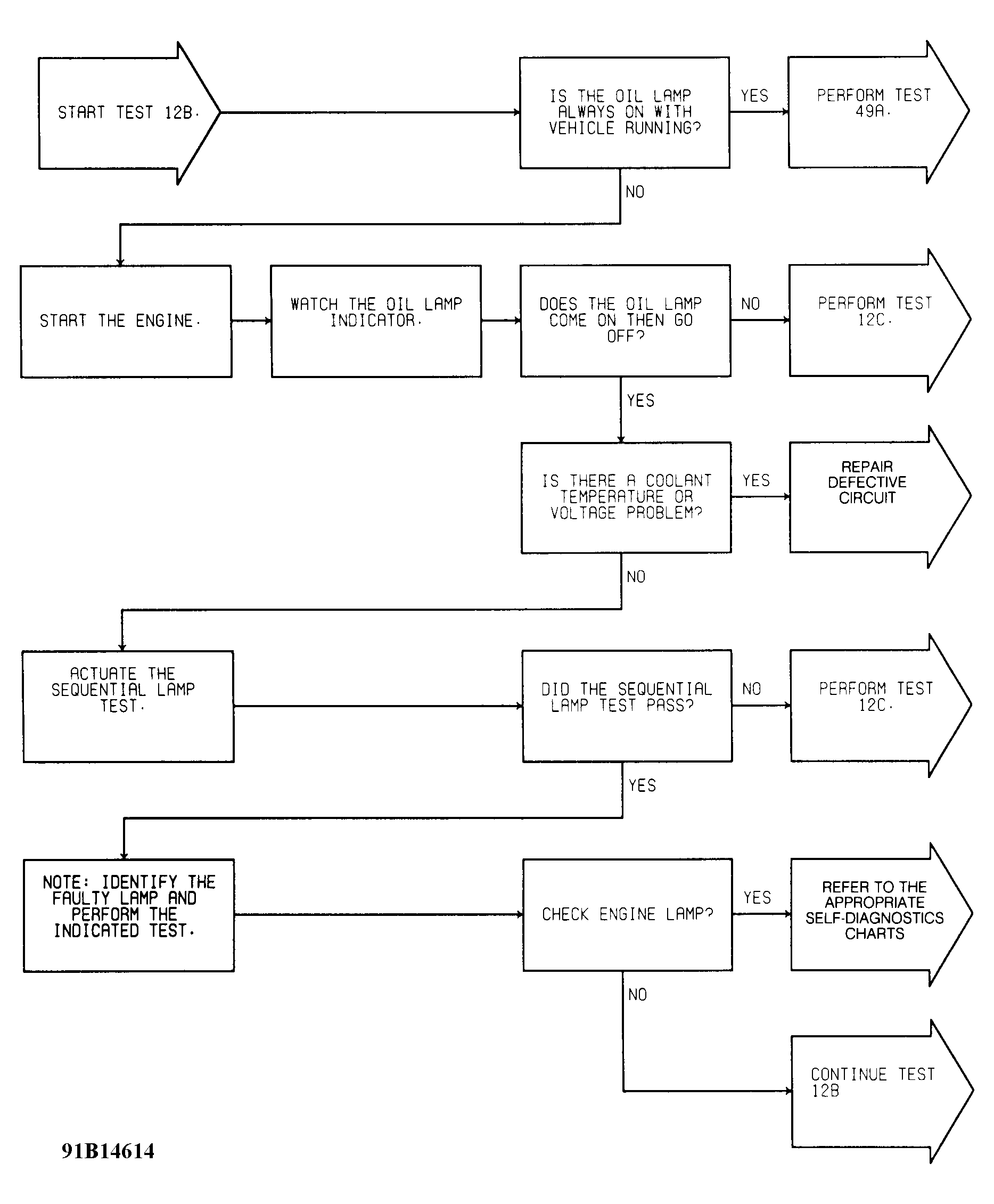

Fig 1: Test 12B (1 of 2) - Faulty Warning Lamp on Base Electro/Mechanical Cluster ID
G91B14614

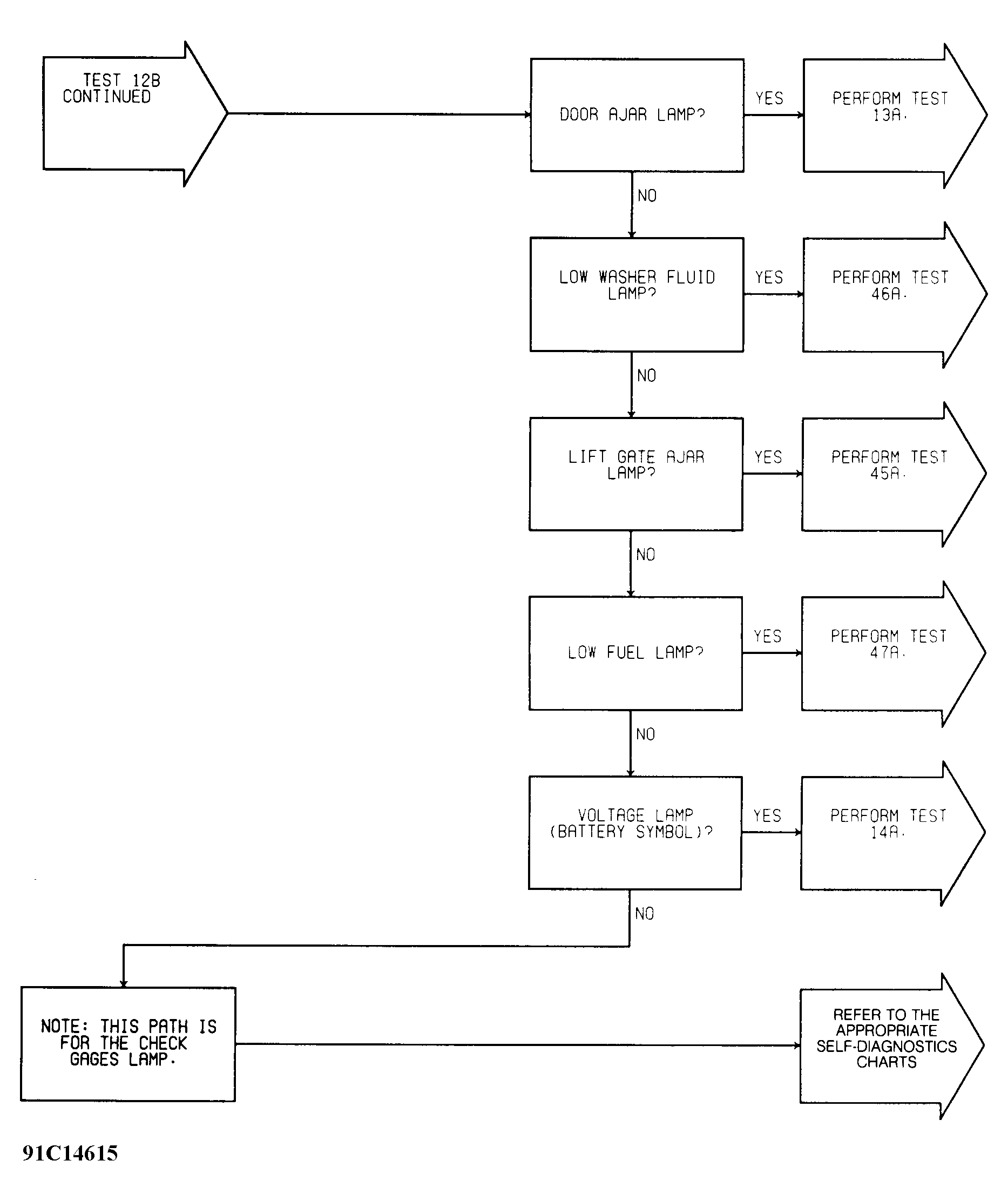

Fig 2: Test 12B (2 of 2) - Faulty Warning Lamp on Base Electro/Mechanical Cluster ID
G91C14615
