Engine Controls - Tests W/Codes - V6/V8
>>
No Start Tests
>>
NS12: System Power & Ground, Map Sensor & Controller
>>
Check For System Power & Ground, Operation Of Map Sensor & Engine Controller
Check For System Power & Ground, Operation Of Map Sensor & Engine Controller

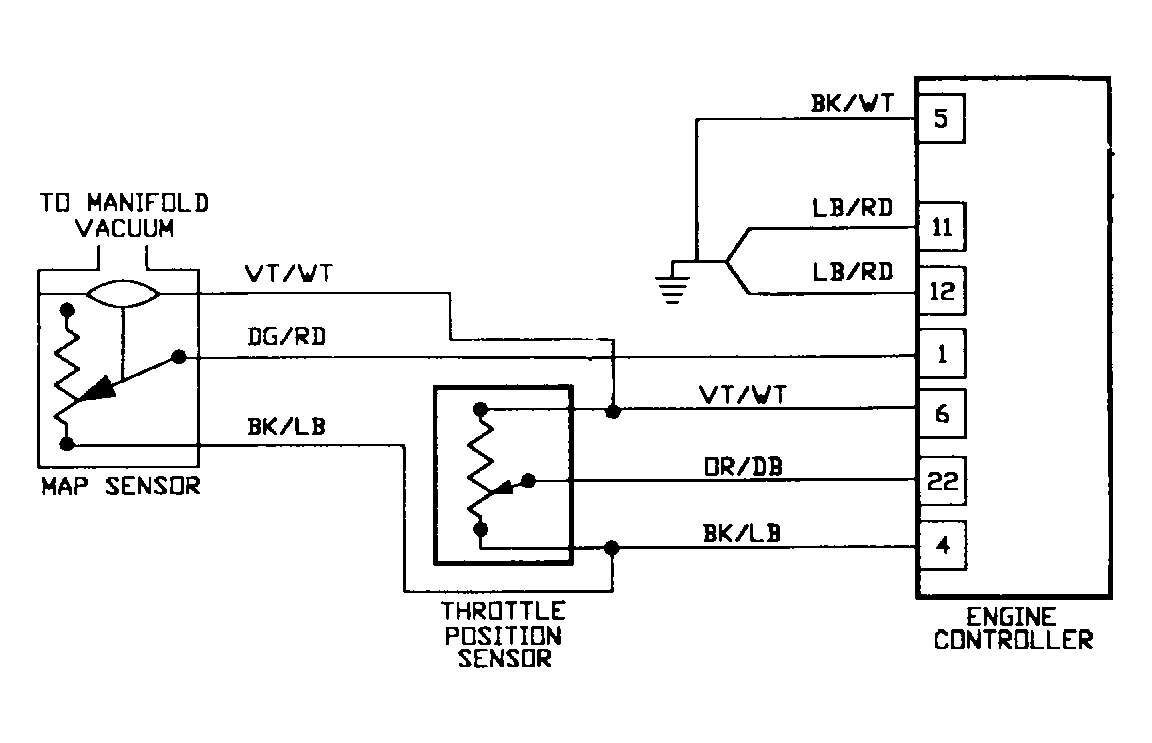

Fig 1: NS12: Circuit Diagram

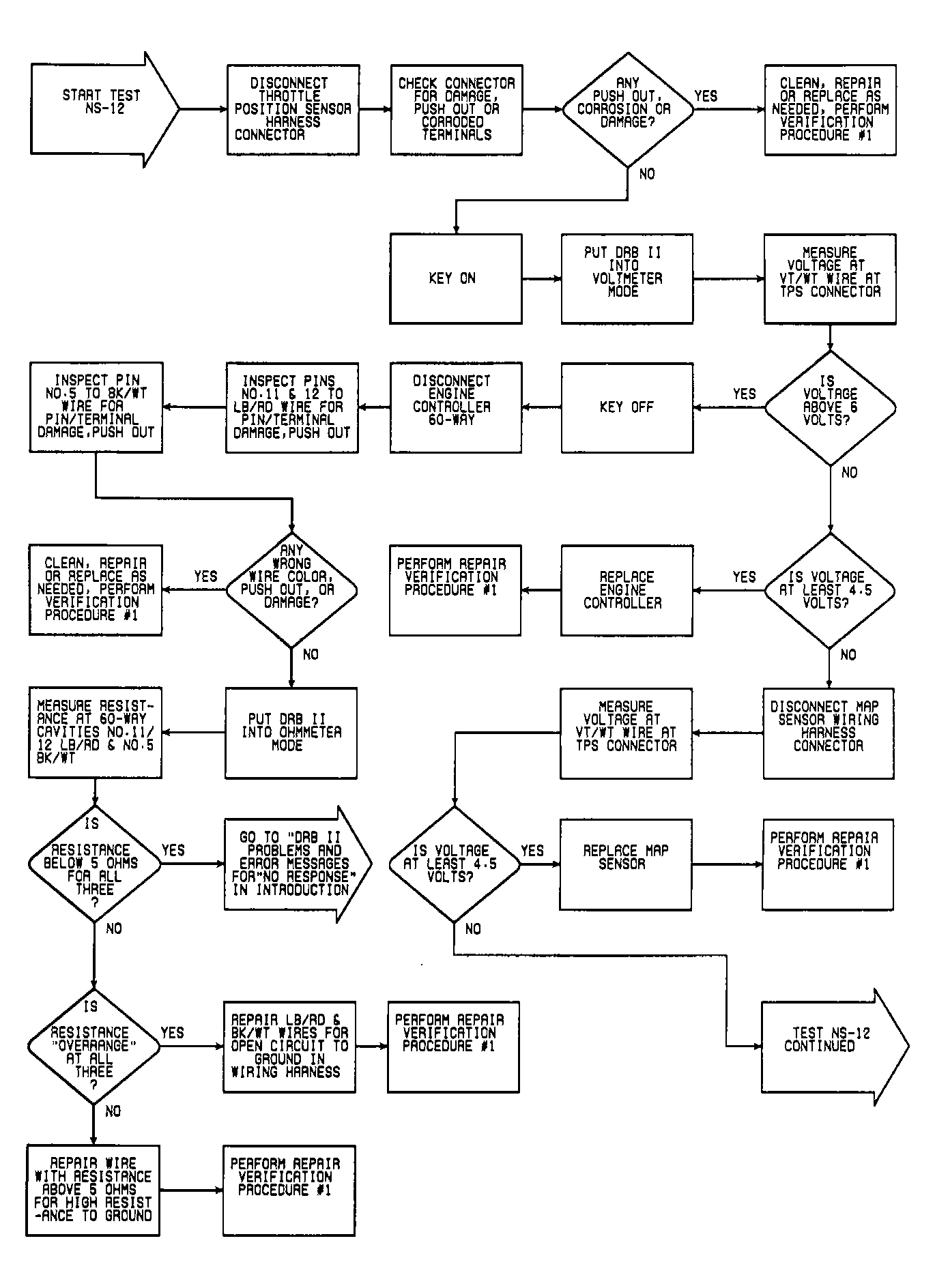

Fig 2: NS12: Flow Chart (1 of 2)

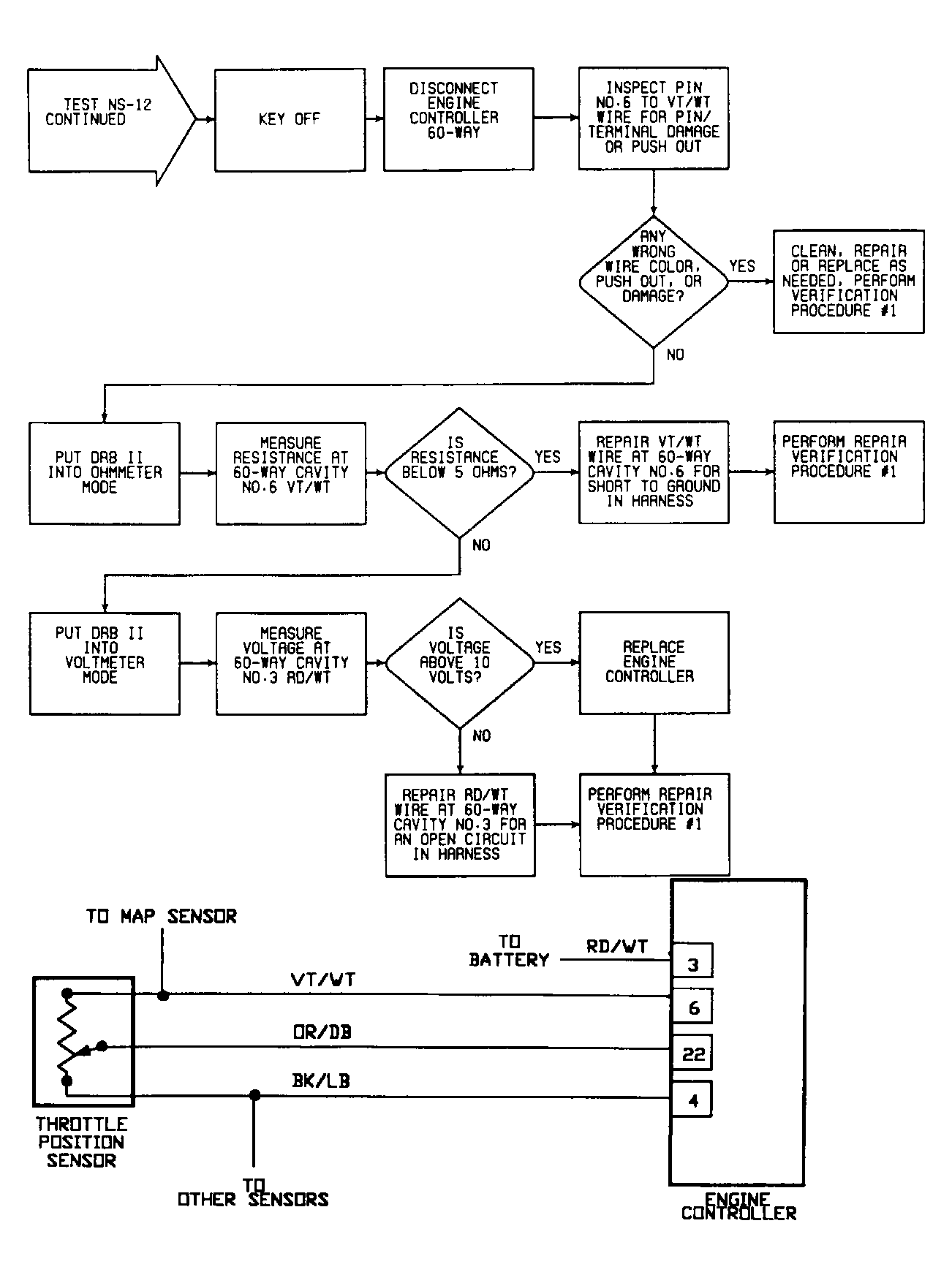

Fig 3: NS12: Flow Chart (2 of 2)
