Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 4C - Electronic Cluster Switch Test
Test 4C - Electronic Cluster Switch Test

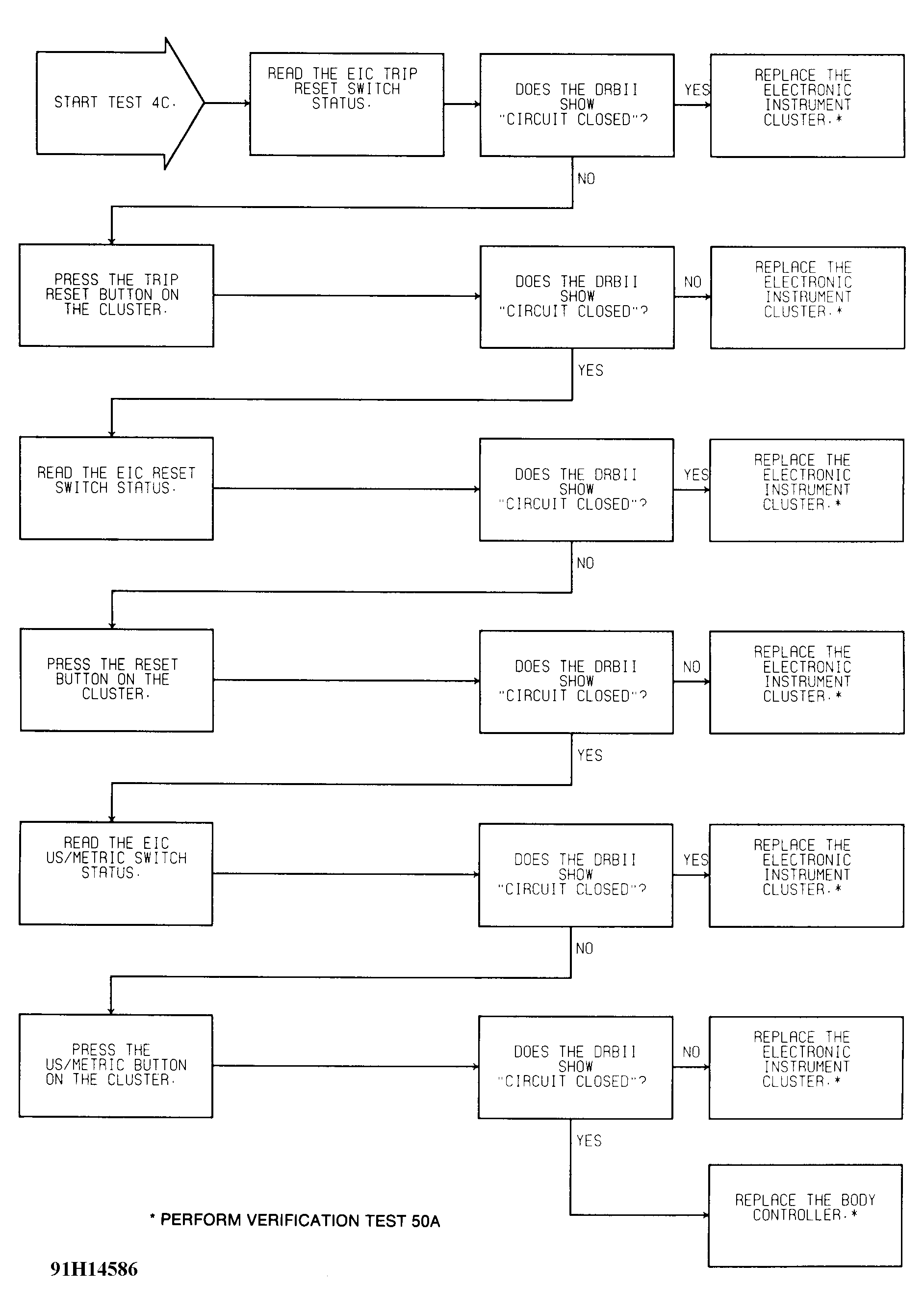

Fig 1: Test 4C - Electronic Cluster Switch Test
