Test 49C - Checking Wiring, Controller & Cluster For Proper

OPERATION

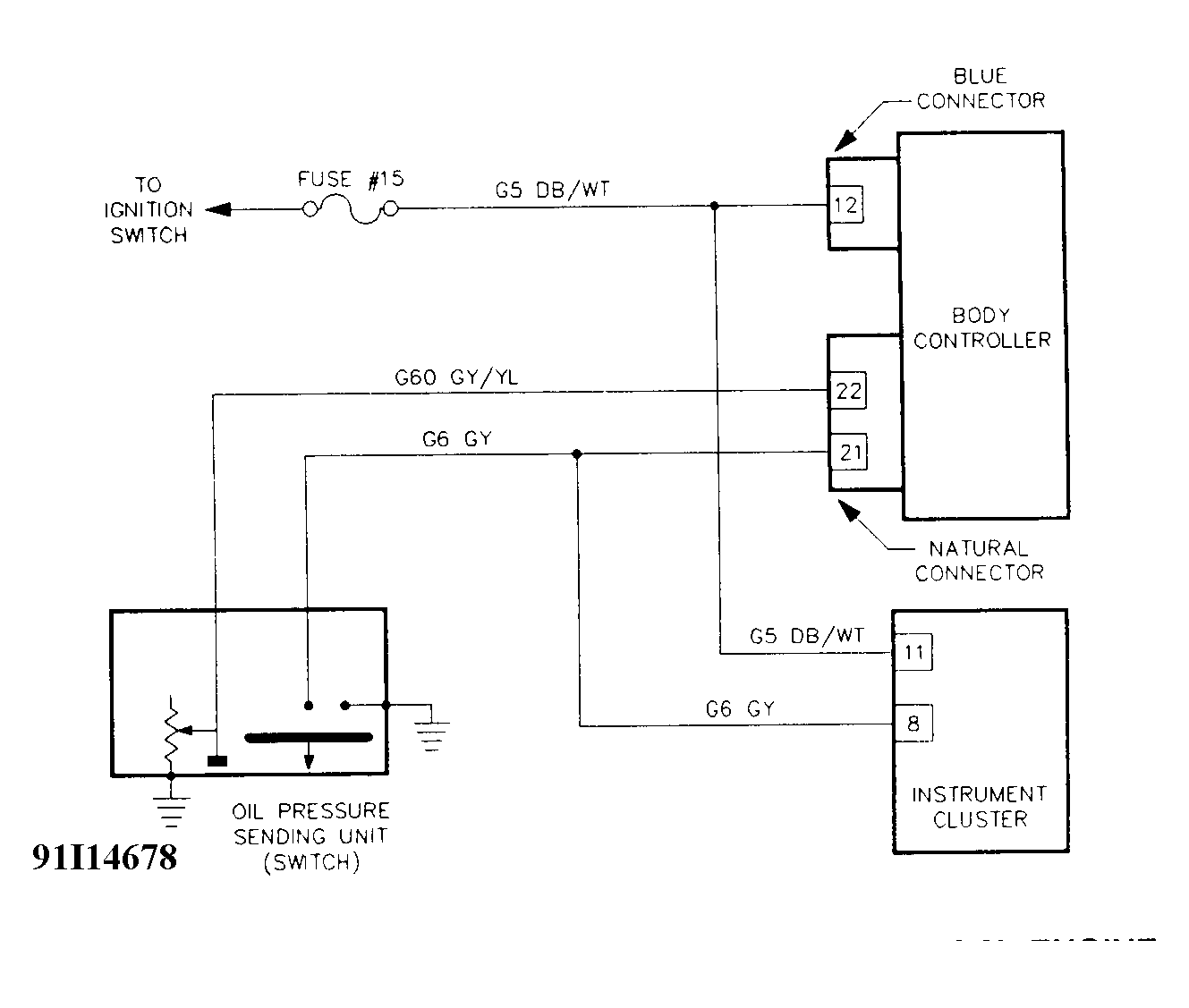

Fig 1: Test 49C Schematic - Checking Wiring, Controller & Cluster for Proper Operation
G91I14678

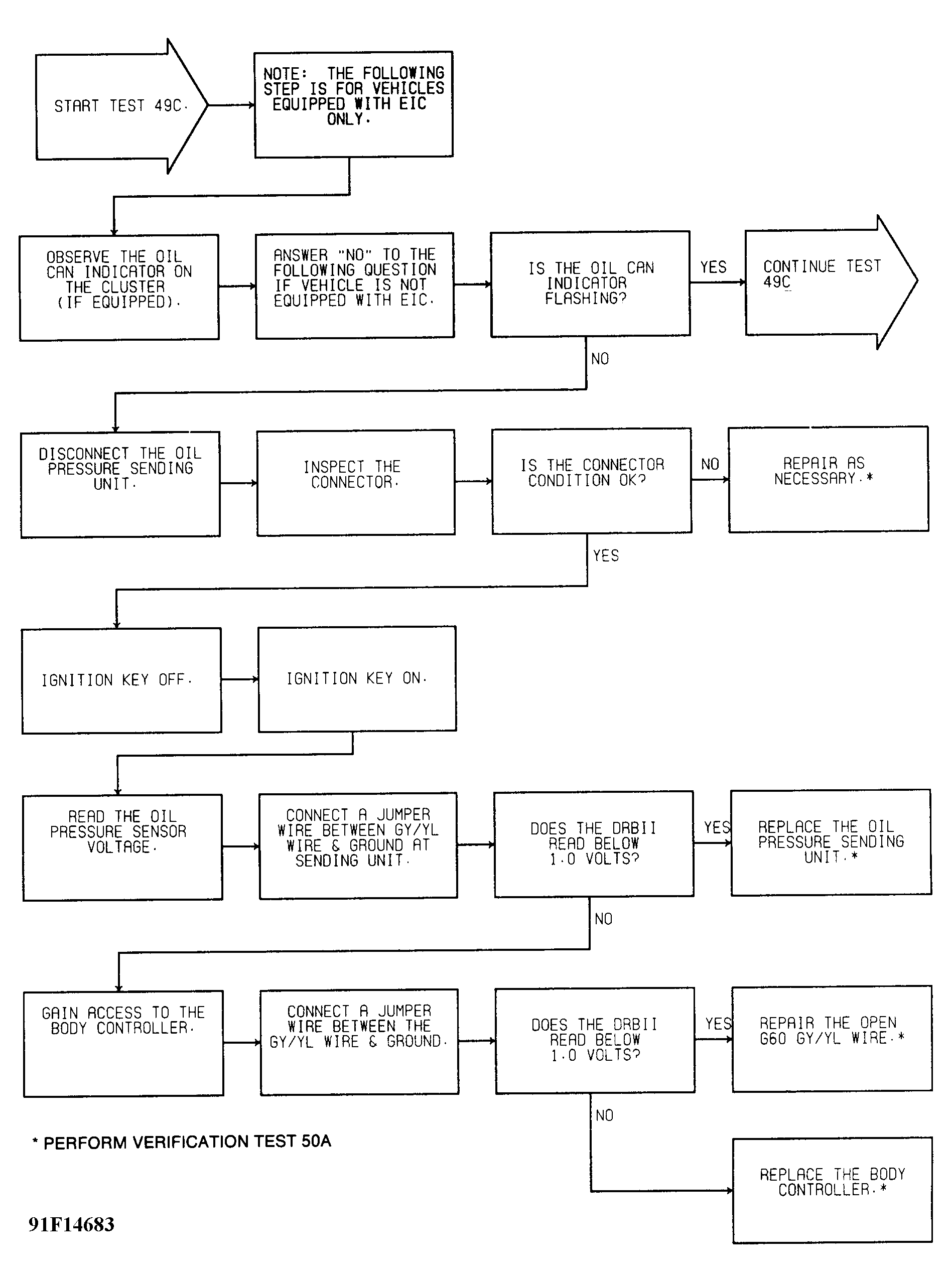

Fig 2: Test 49C Flow Chart (1 of 2) - Checking Wiring, Controller & Cluster for Proper Operation
G91F14683

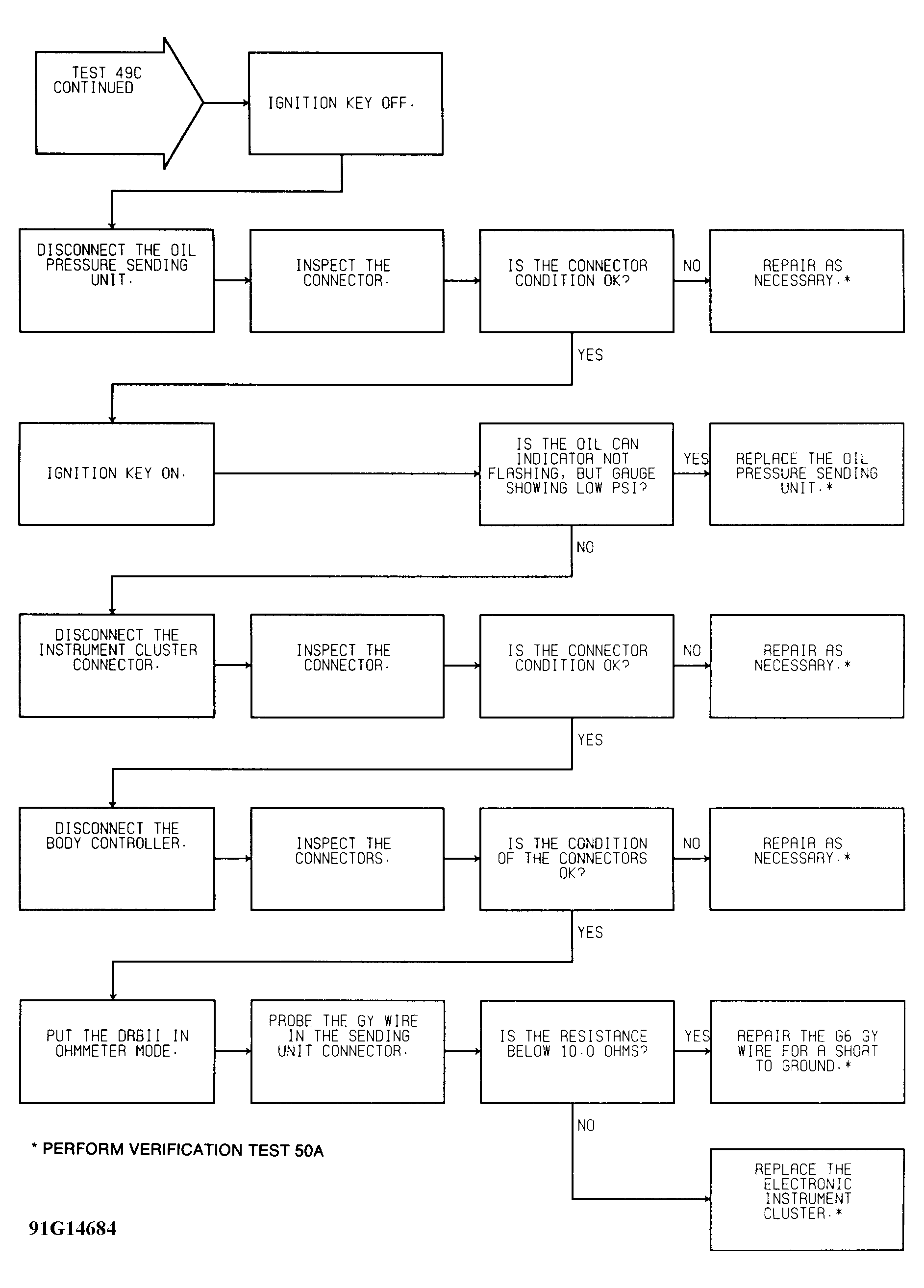

Fig 3: Test 49C Flow Chart (2 of 2) - Checking Wiring, Controller & Cluster for Proper Operation
G91G14684
