Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 109B - Testing For No Response On The DRB-II Screen
Test 109B - Testing For No Response On The DRB-II Screen

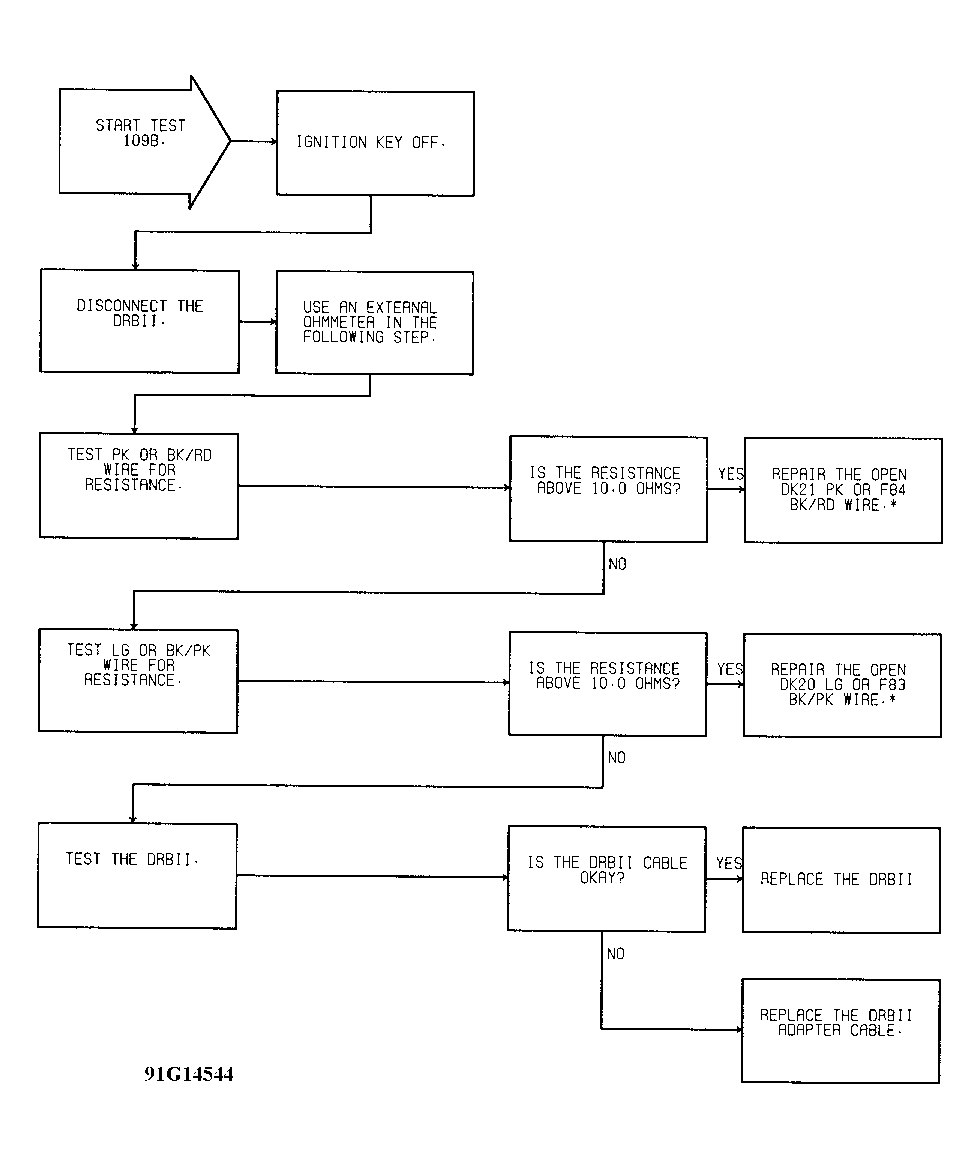

Fig 1: Test 109B - Testing For No Response On The DRB-II Screen
