Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 64A - Testing For Not Receiving Bus Message Correctly On
Test 64A - Testing For Not Receiving Bus Message Correctly On
BUS

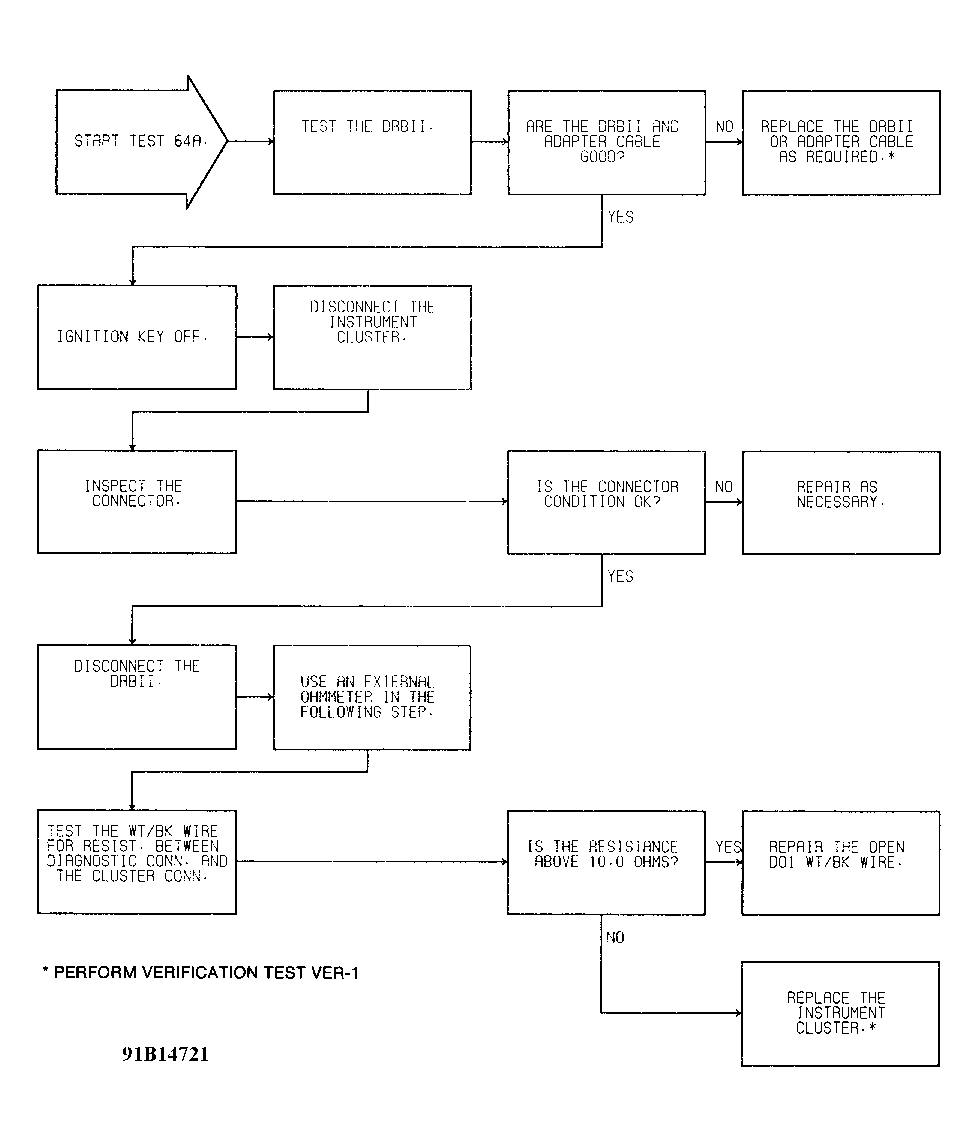

Fig 1: Test 64A - Testing For Not Receiving Bus Message Correctly On Bus
