NS9 - Checking For System Faults

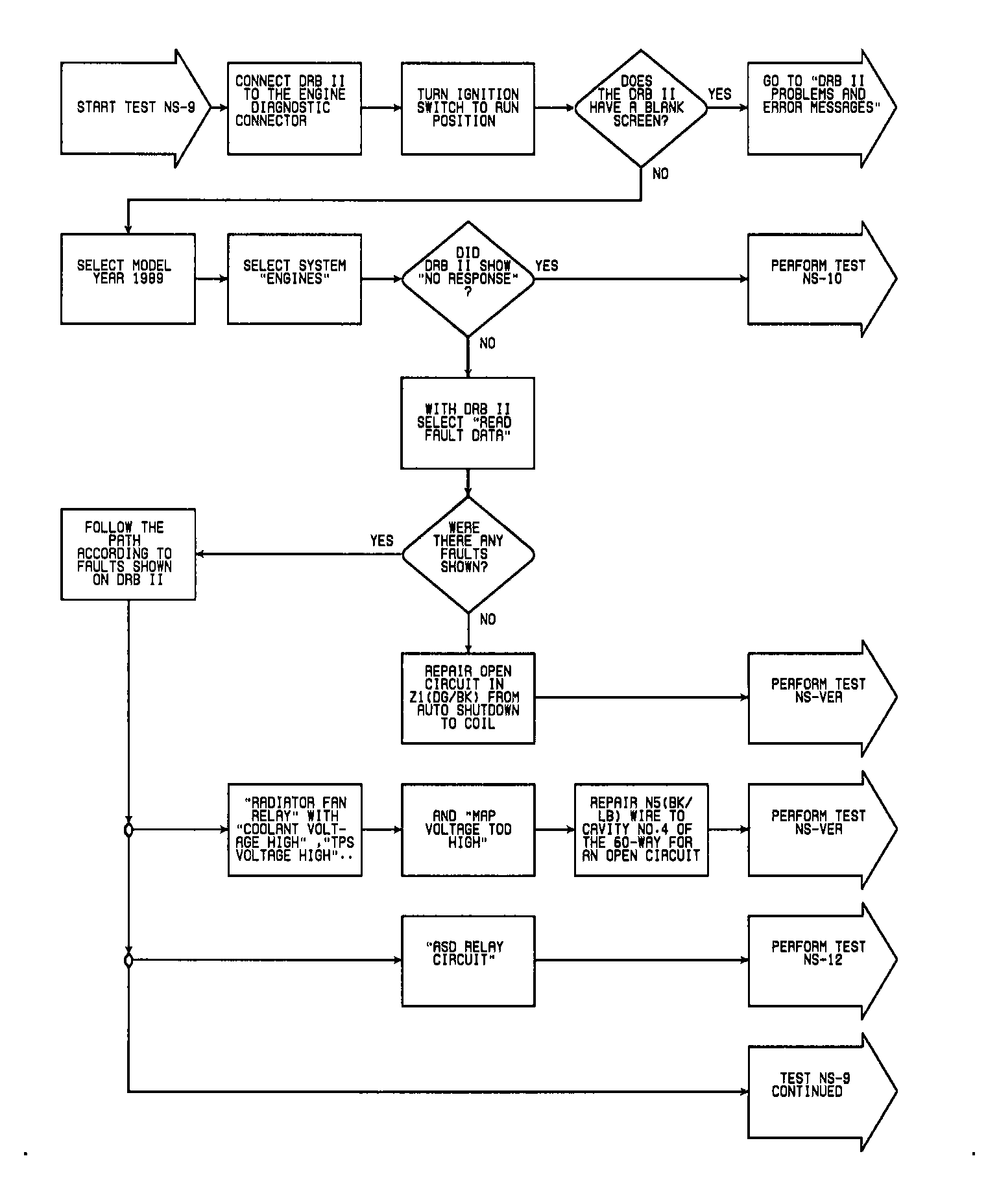

Fig 1: NS9 (1 of 2) - Checking For System Faults

G107344

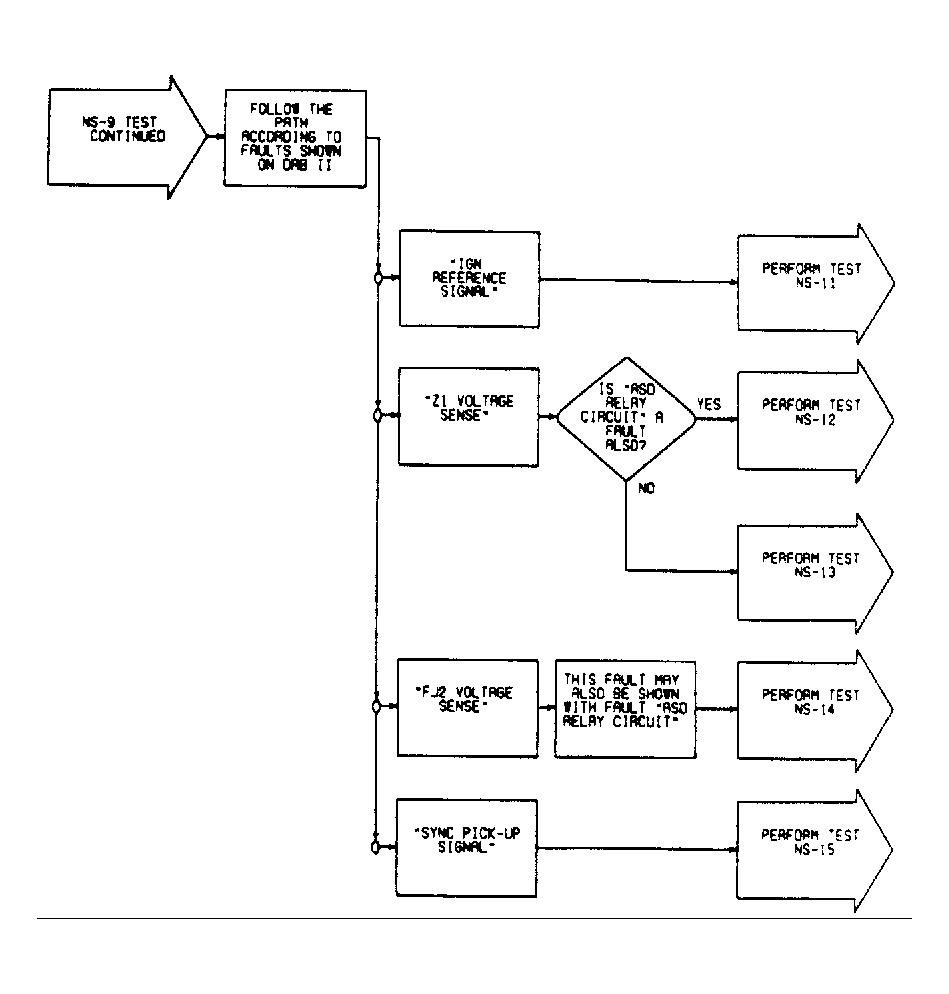

Fig 2: NS9 (2 of 2) - Checking For System Faults (Cont.)

G107345
