VER1 - DRIVEABILITY Verification Test 2

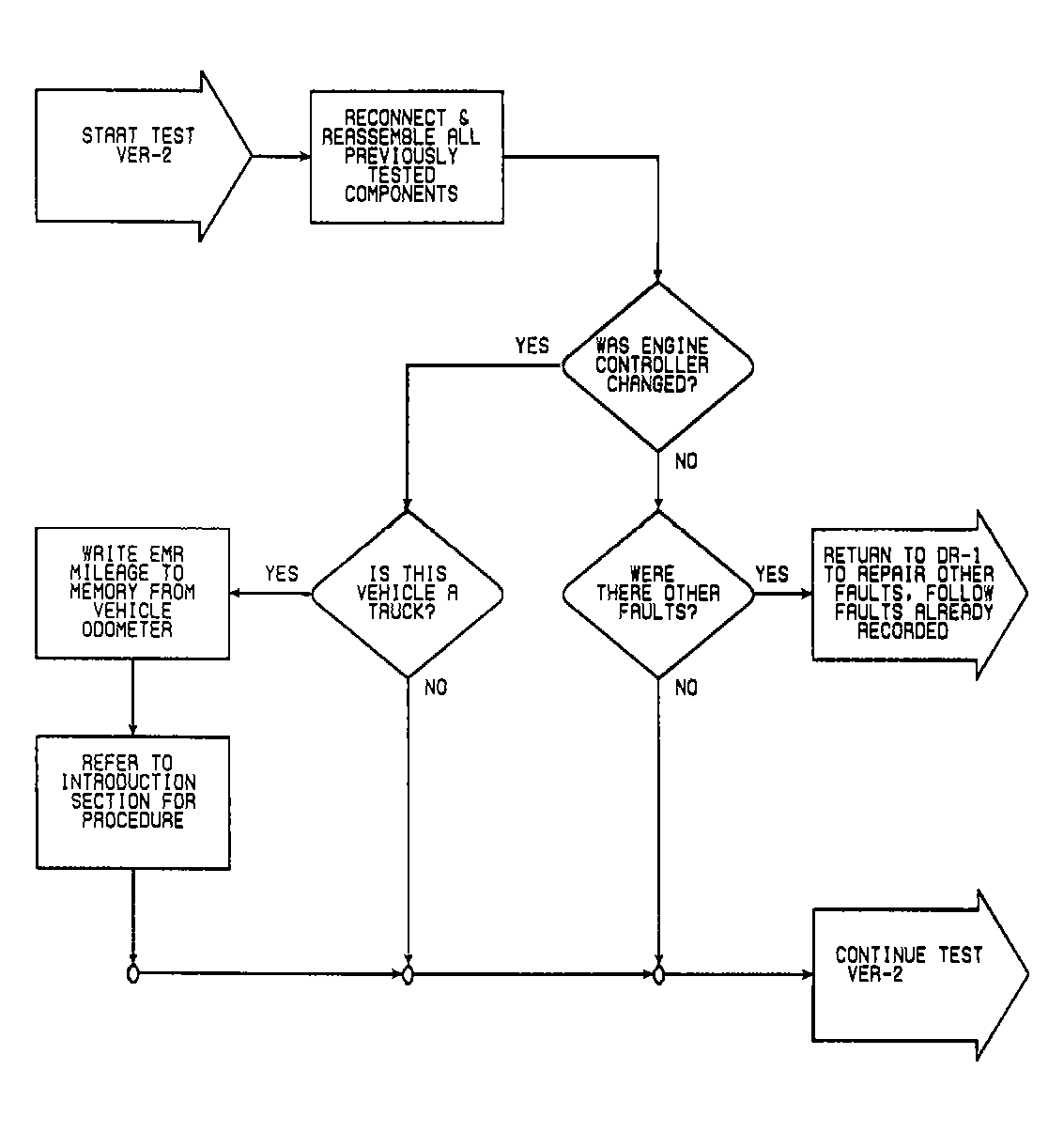

Fig 1: VER2 (1 of 2) - Driveability Verification Test 2

G107442

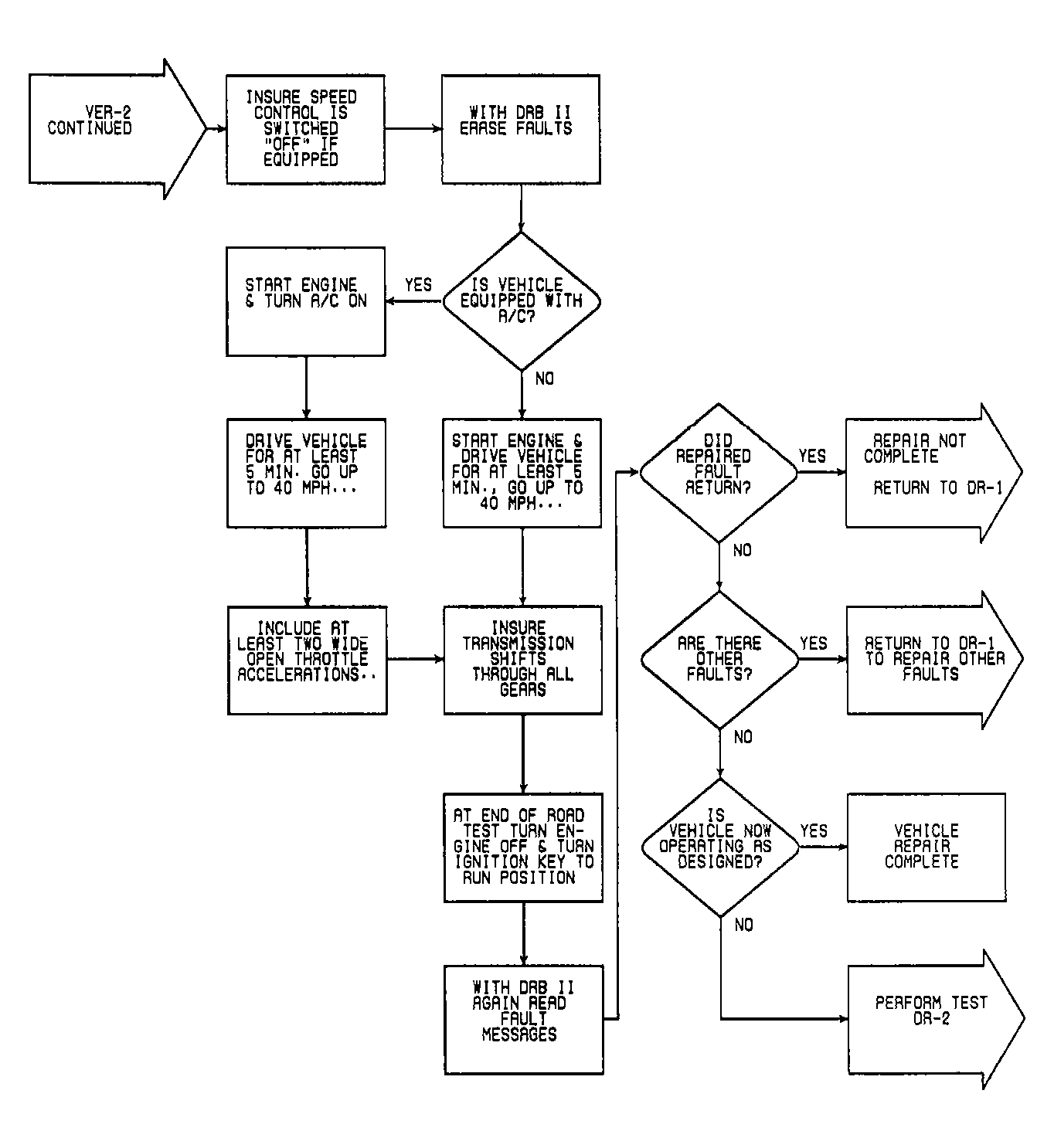

Fig 2: VER2 (2 of 2) - Driveability Verification Test 2 (Cont.)

G107443
