VER1 - DRIVEABILITY Verification Test 1

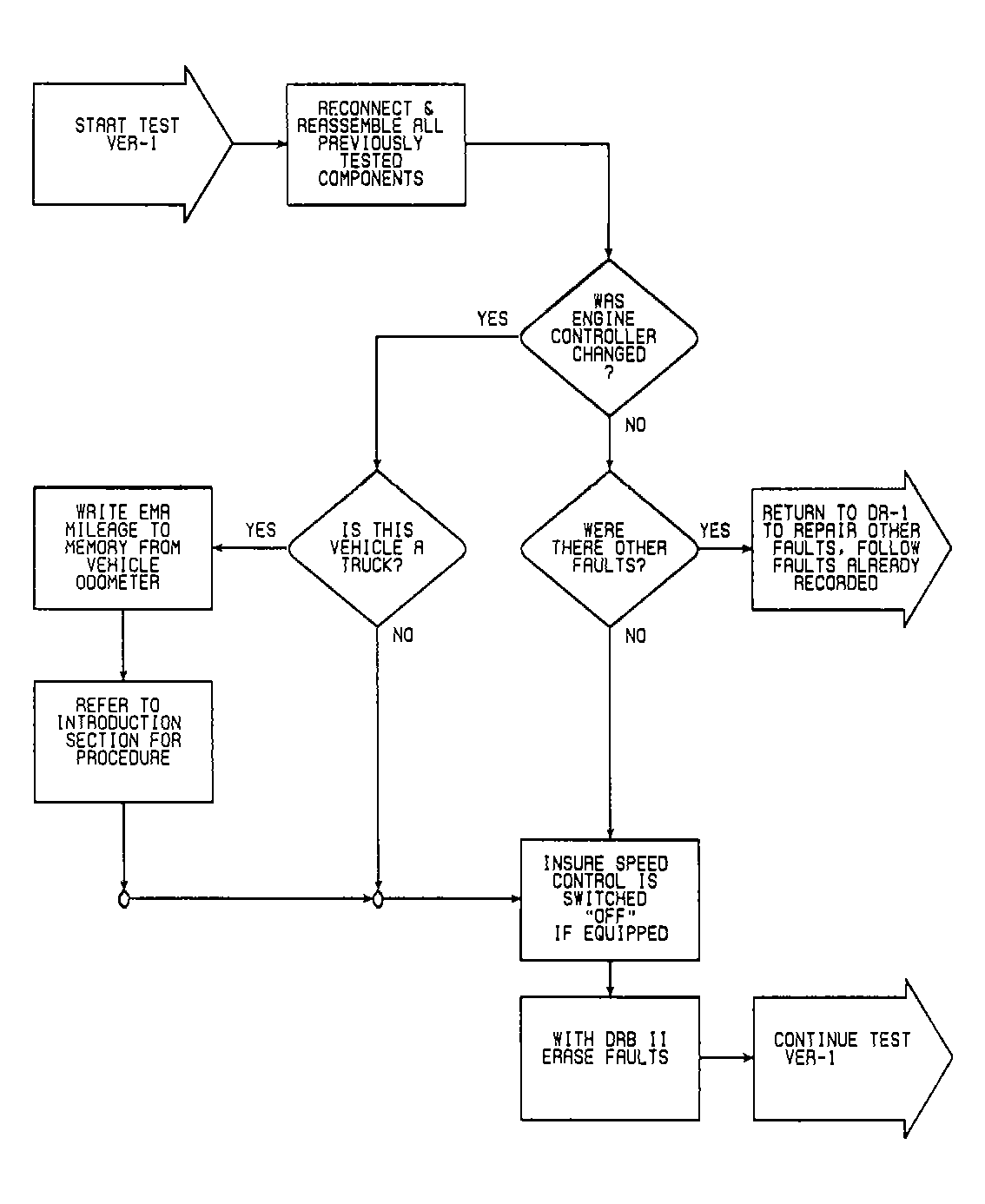

Fig 1: VER1 (1 of 2) - Driveability Verification Test 1

G107440

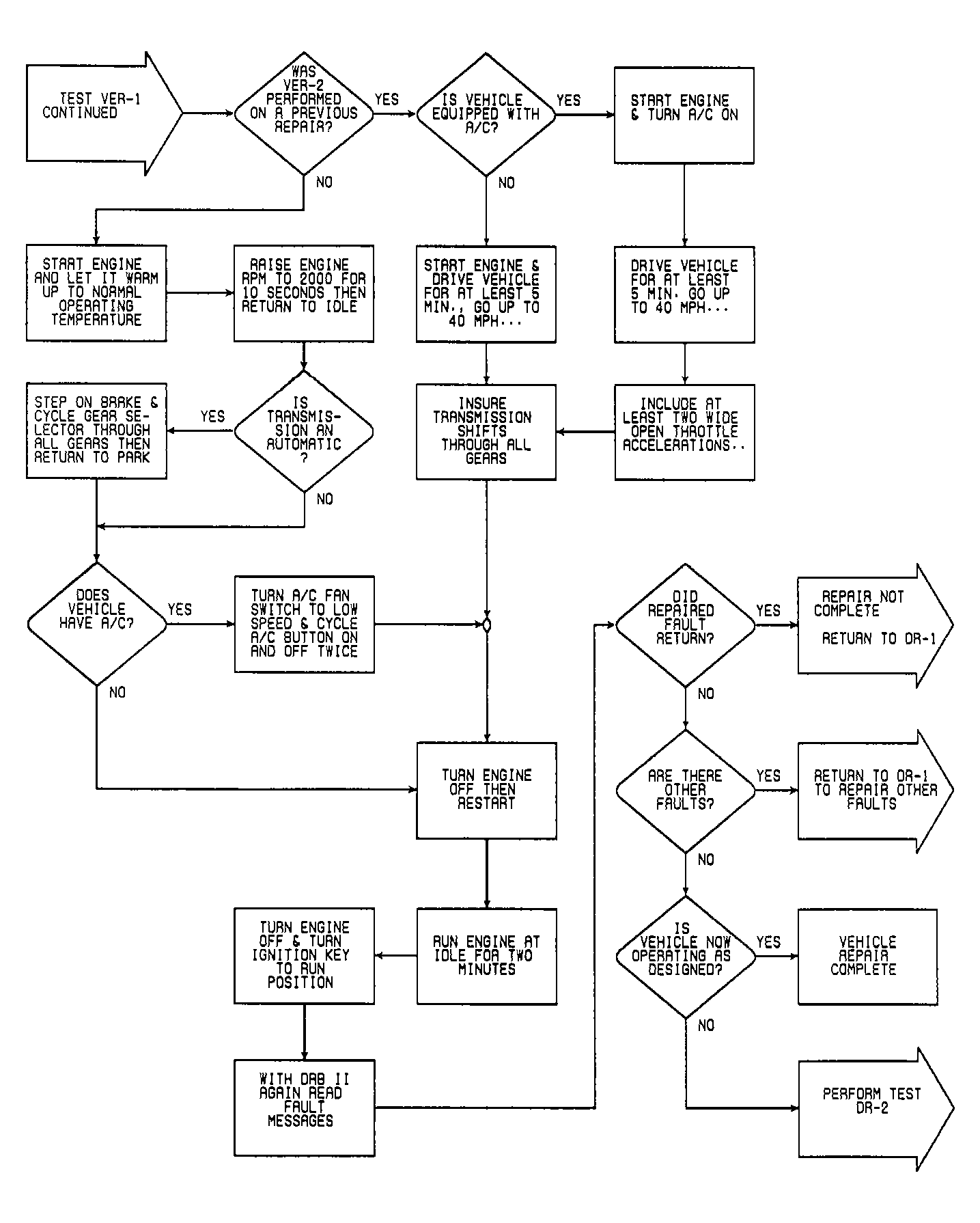

Fig 2: VER1 (2 of 2) - Driveability Verification Test 1 (Cont.)

G107441
