Dr2 - Checking SMEC Controlled Components

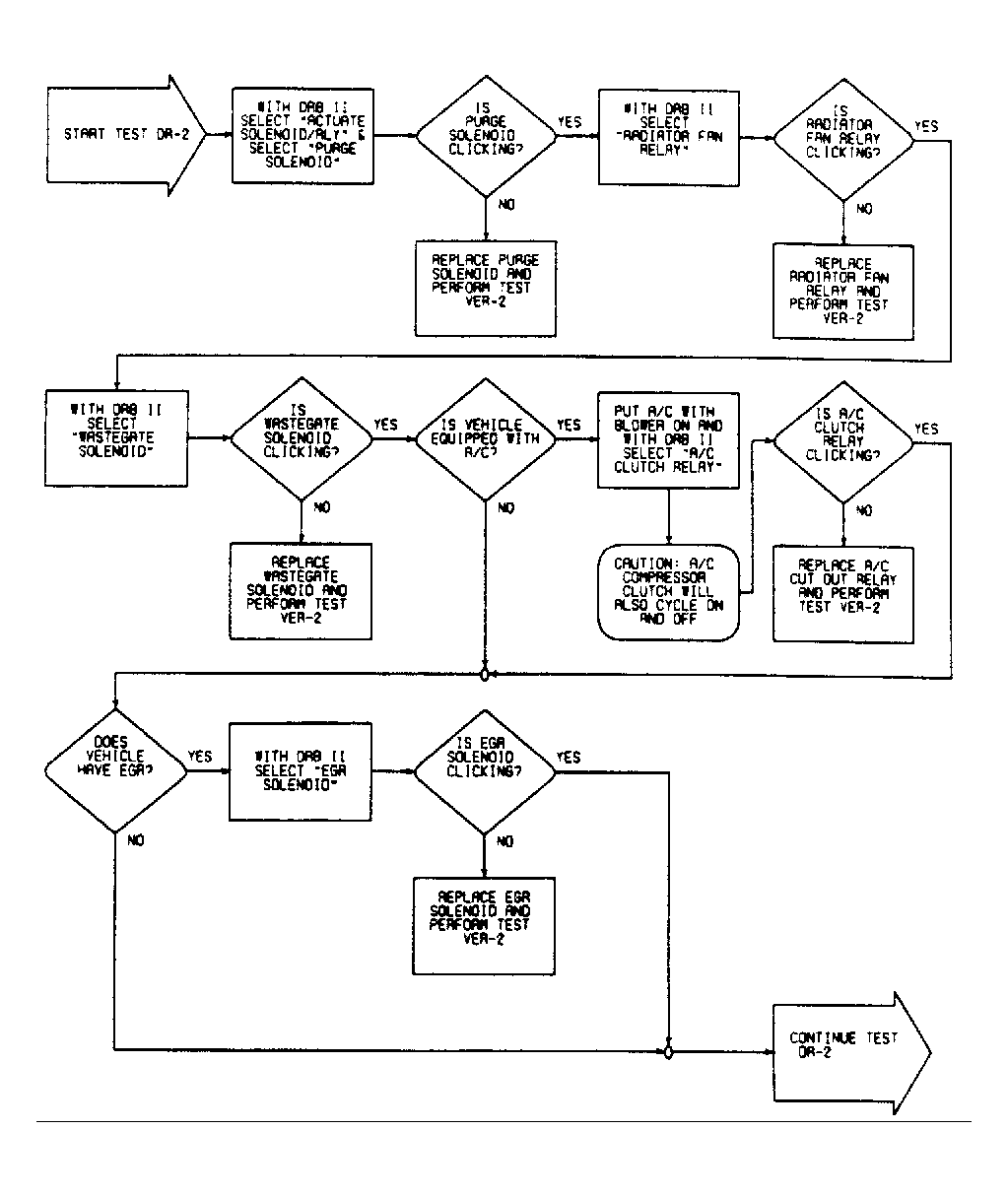

Fig 1: DR2 (1 of 16) - Checking SMEC Controlled Components

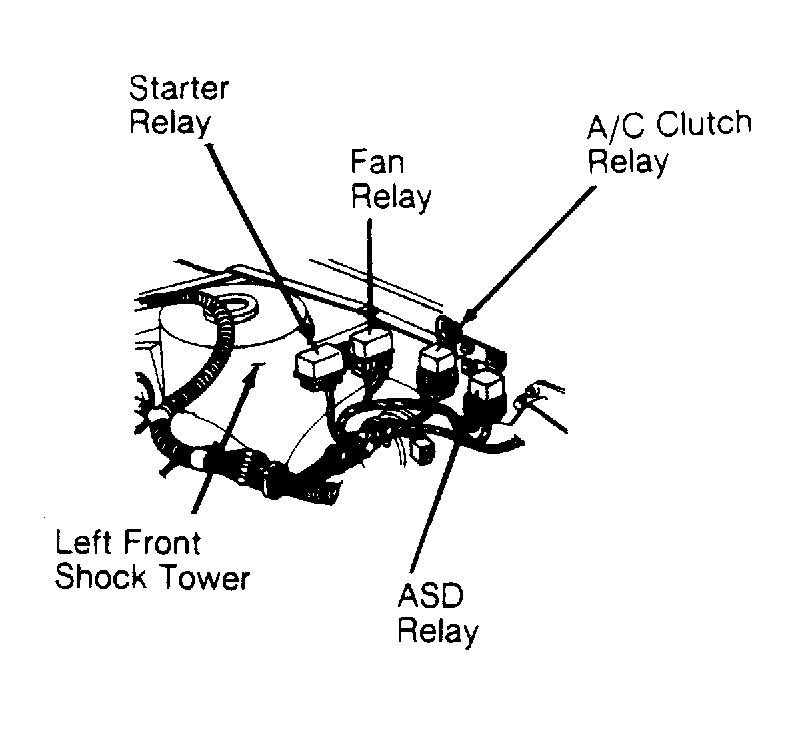

Fig 2: DR2 (2 of 16) - Location Of SMEC Controlled Relays

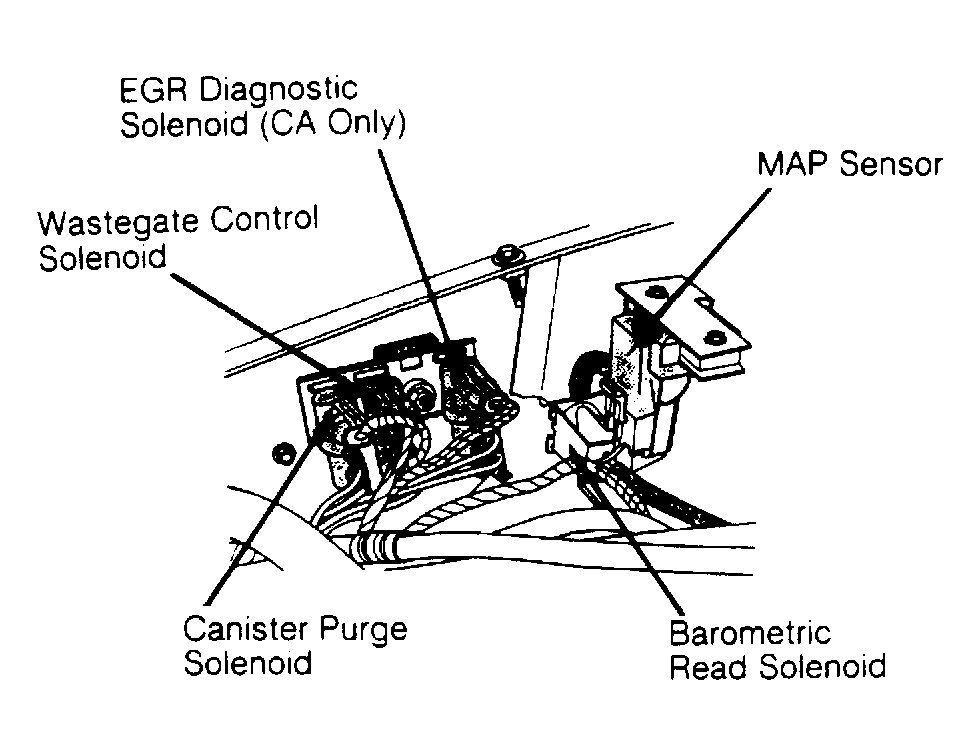

Fig 3: DR2 (3 of 16) - Location Of Canister Purge & Wastegate Solenoids

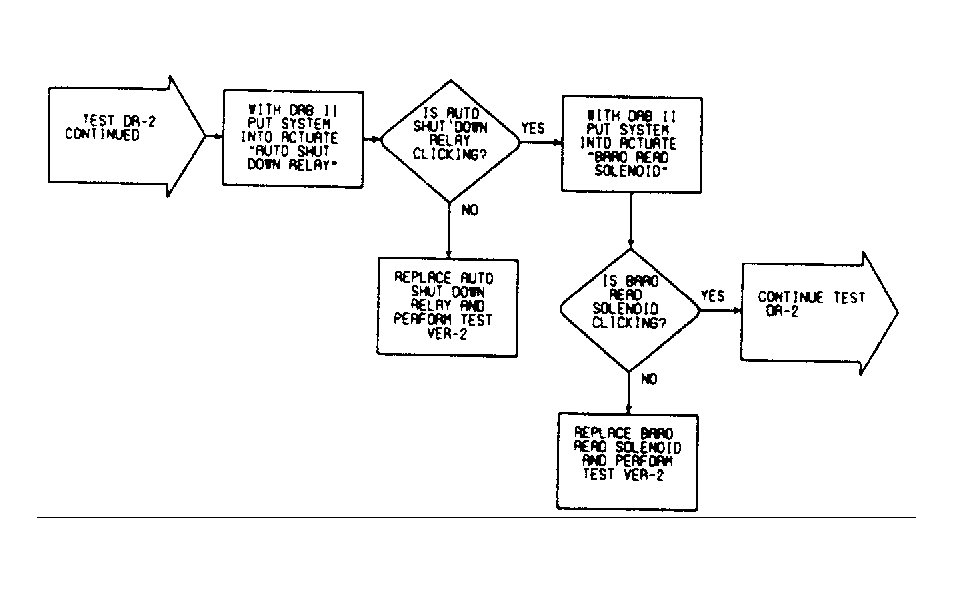

Fig 4: DR2 (4 of 16) - Checking SMEC Controlled Components (Cont.)

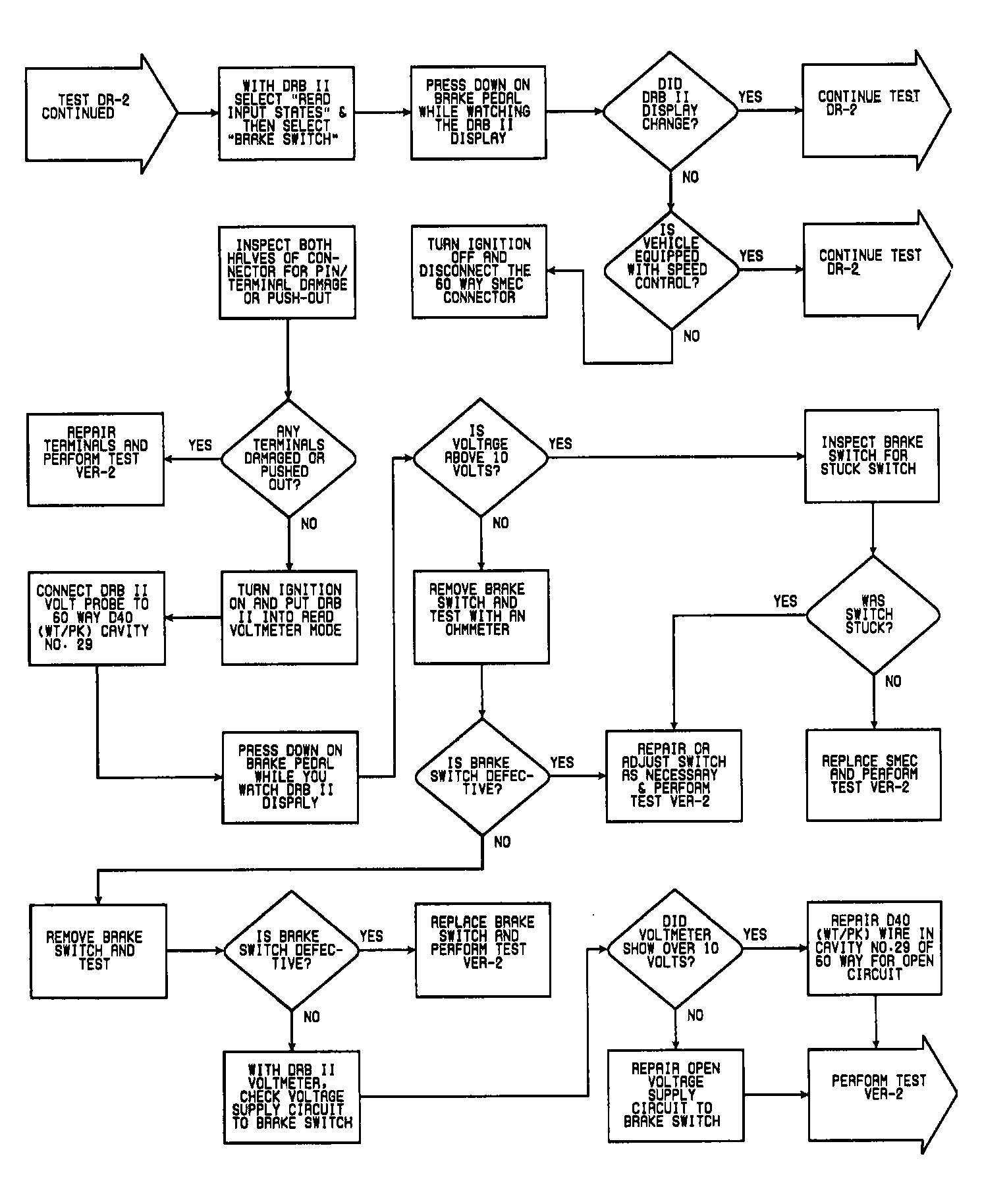

Fig 5: DR2 (5 of 16) - Checking Brake Switch Input Circuit

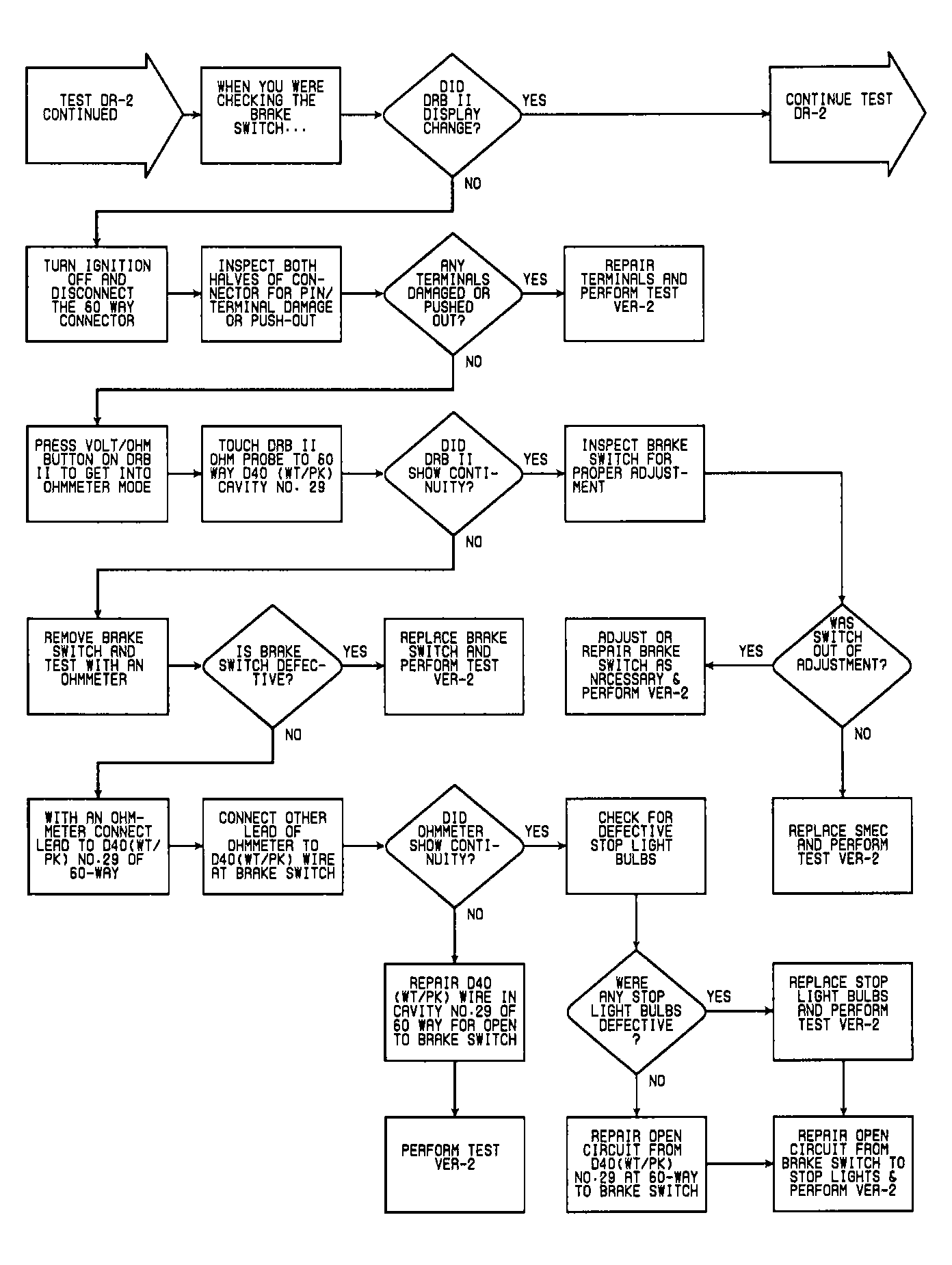

Fig 6: DR2 (6 of 16) - Checking Brake Switch Input Circuit (Cont.)

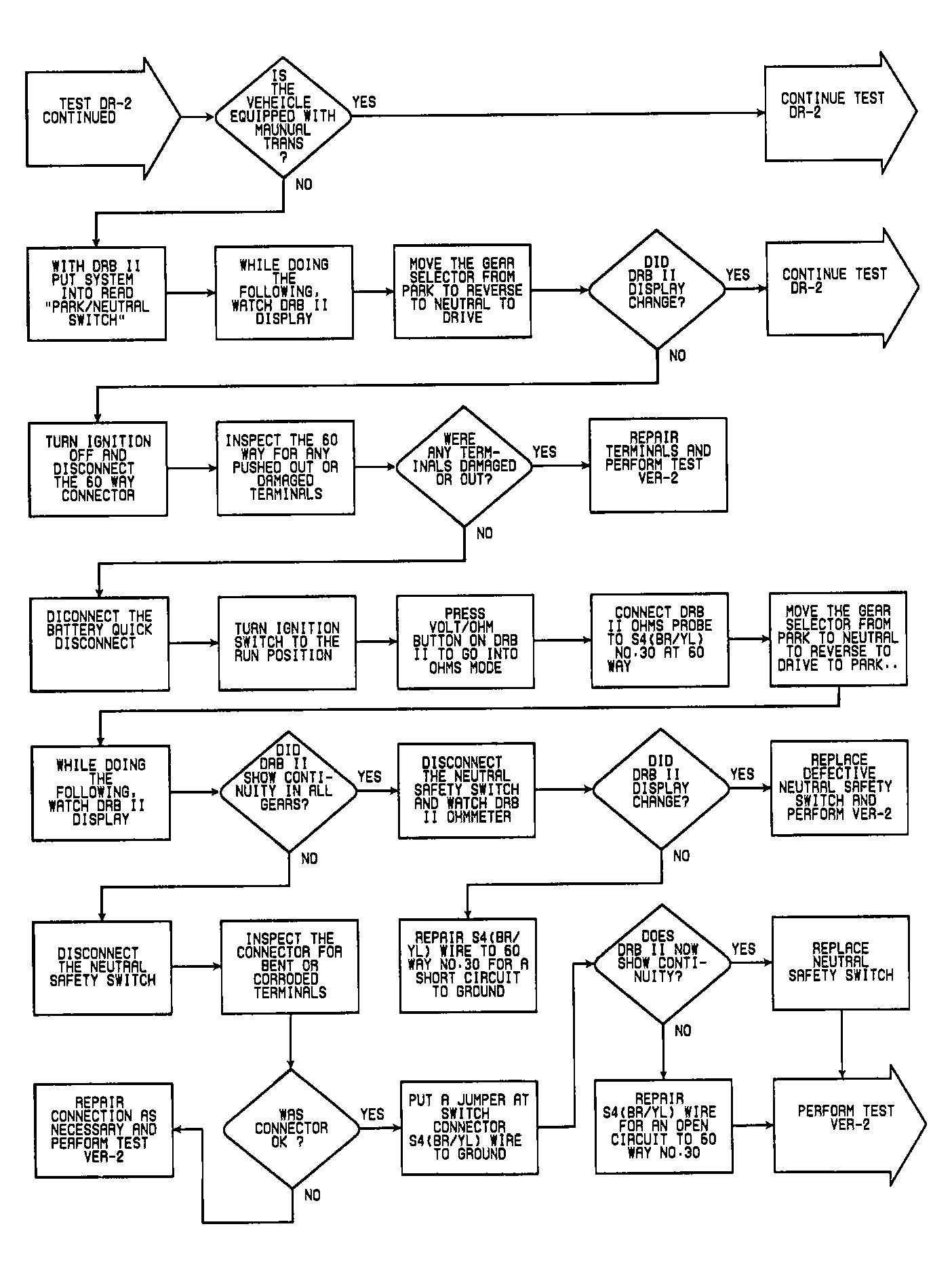

Fig 7: DR2 (7 of 16) - Checking Park/Neutral Switch Input To SMEC

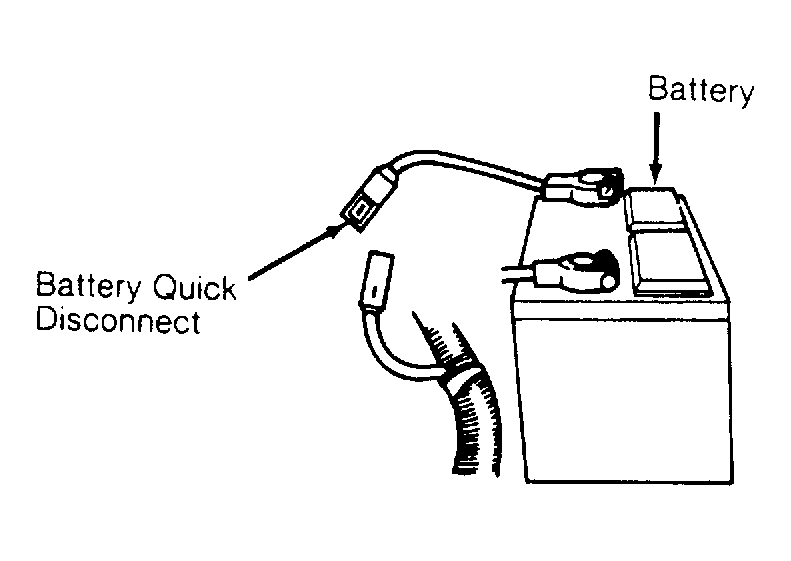

Fig 8: DR2 (8 of 16) - Location of Battery Quick Disconnect Connector

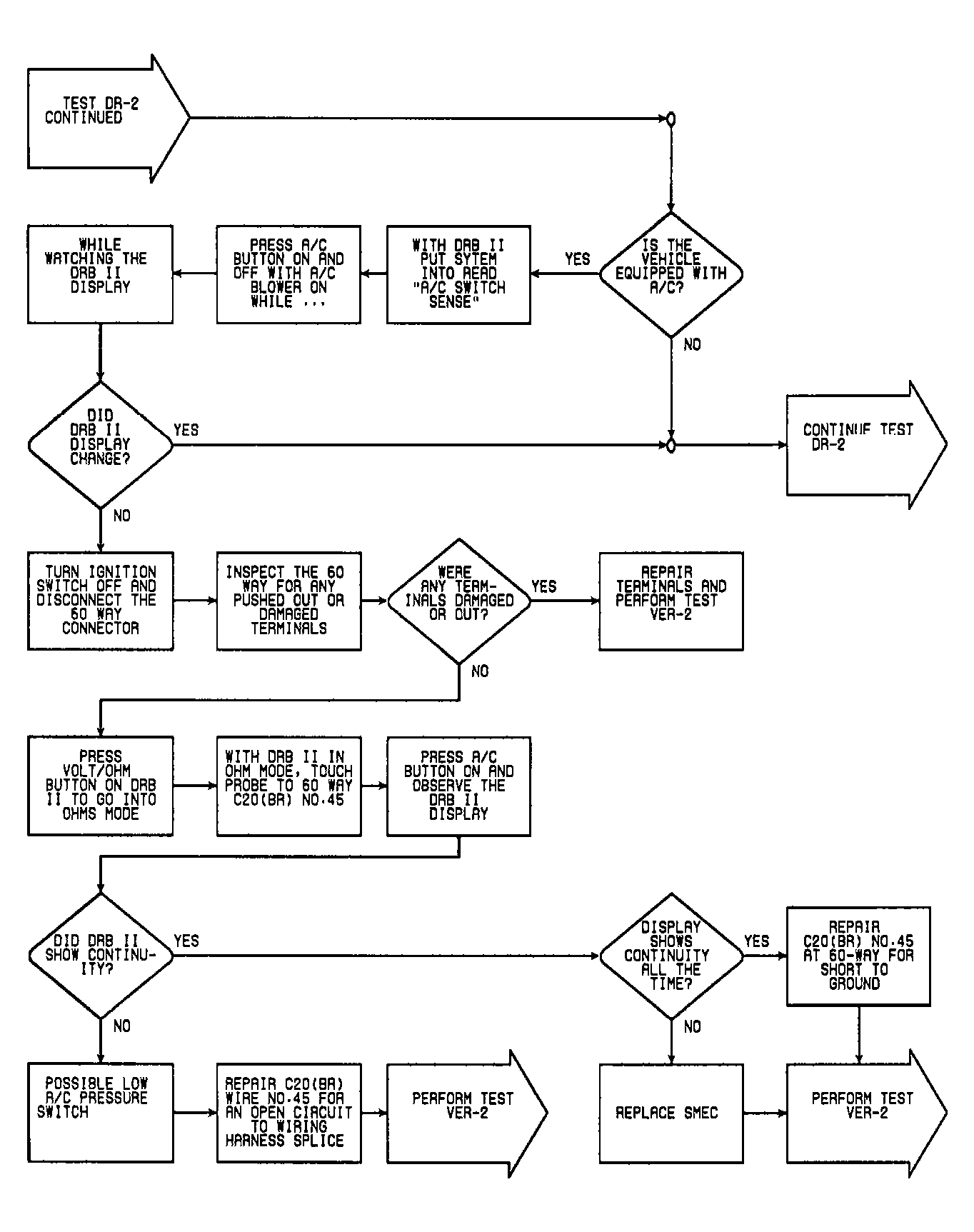

Fig 9: DR2 (9 of 16) - Checking A/C Push Button Switch Input To SMEC

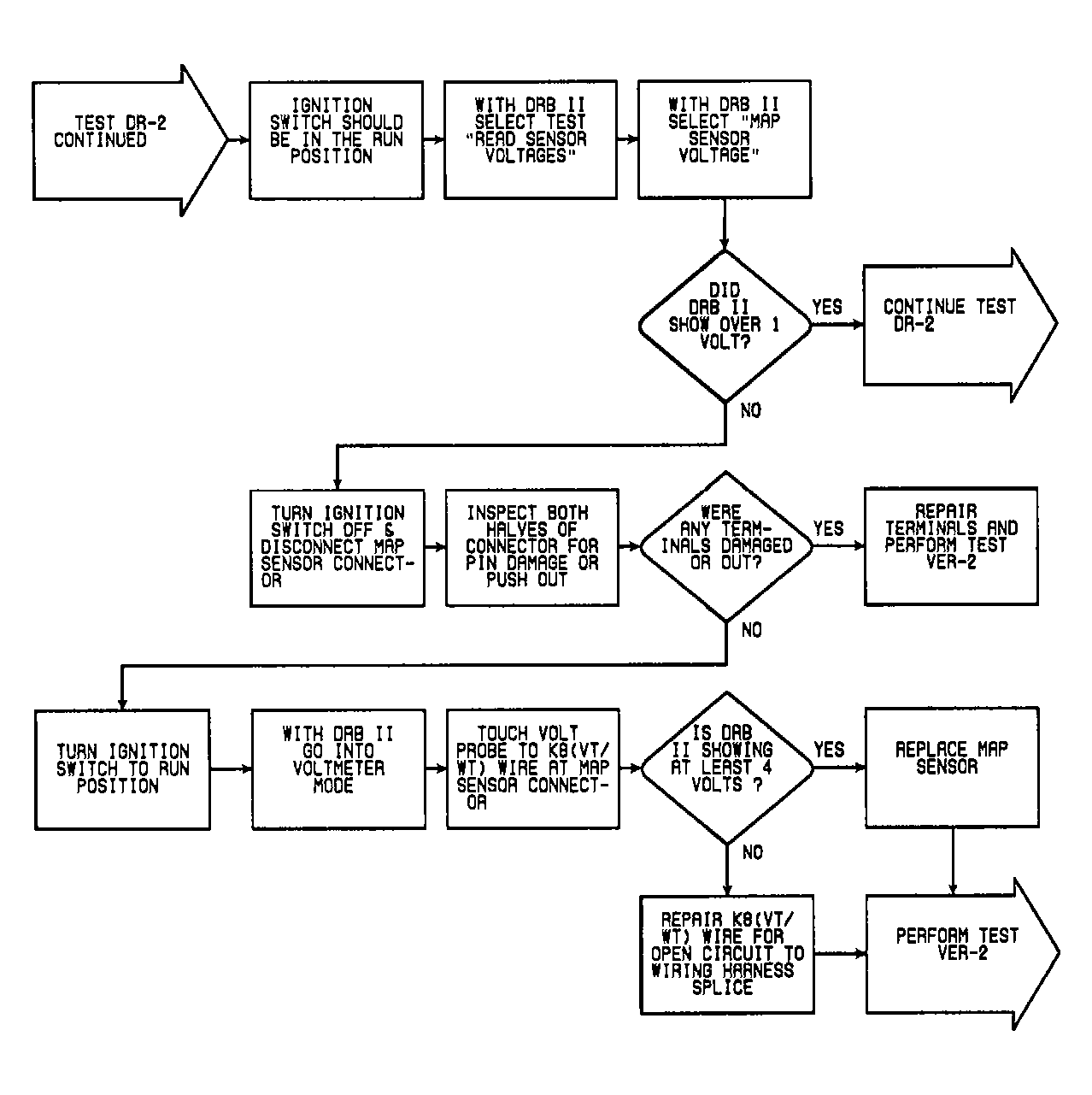

Fig 10: DR2 (10 of 16) - Checking 5 Volt Supply To MAP Sensor

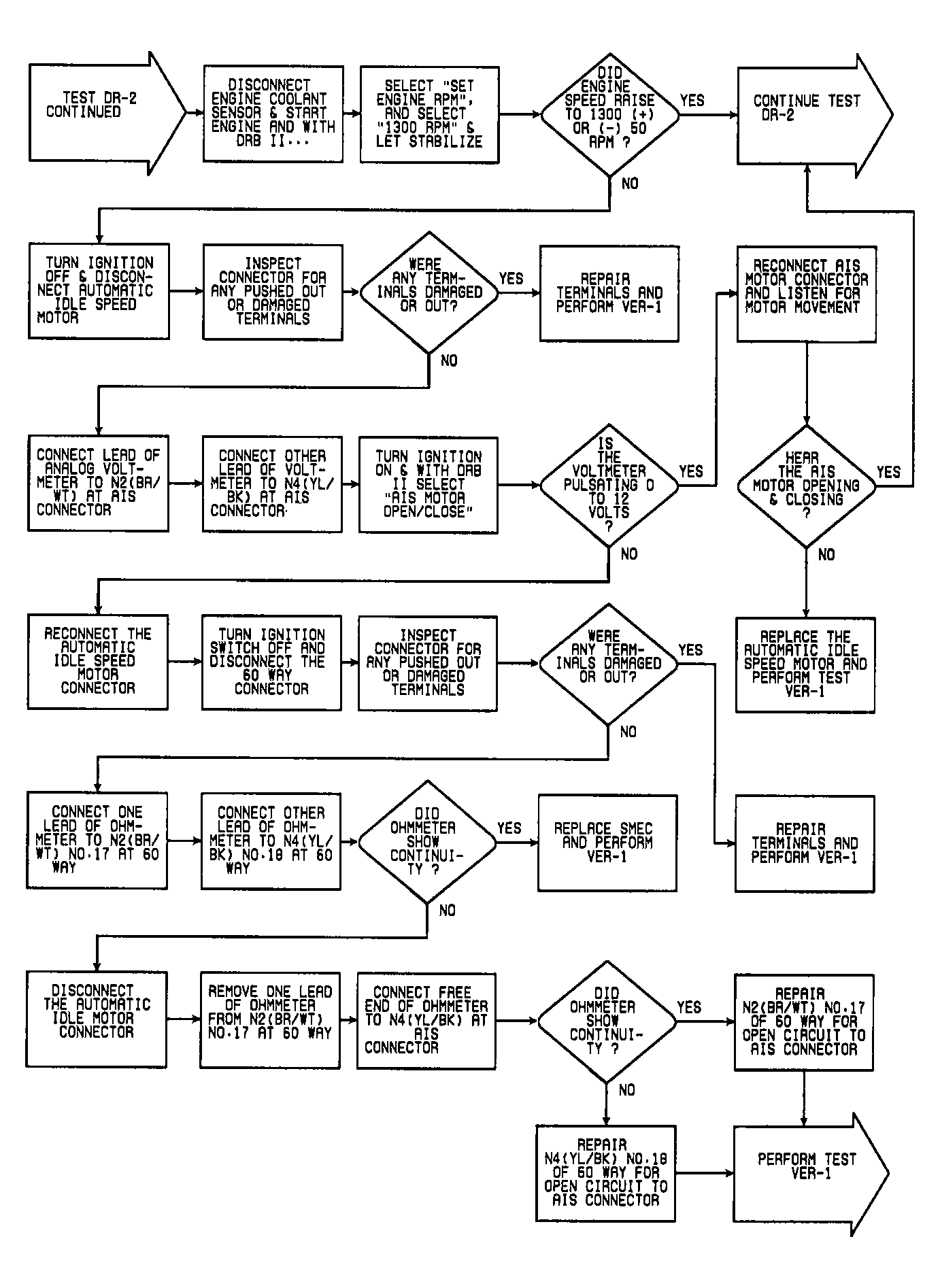

Fig 11: DR2 (11 of 16) - Checking AIS Motor Operation

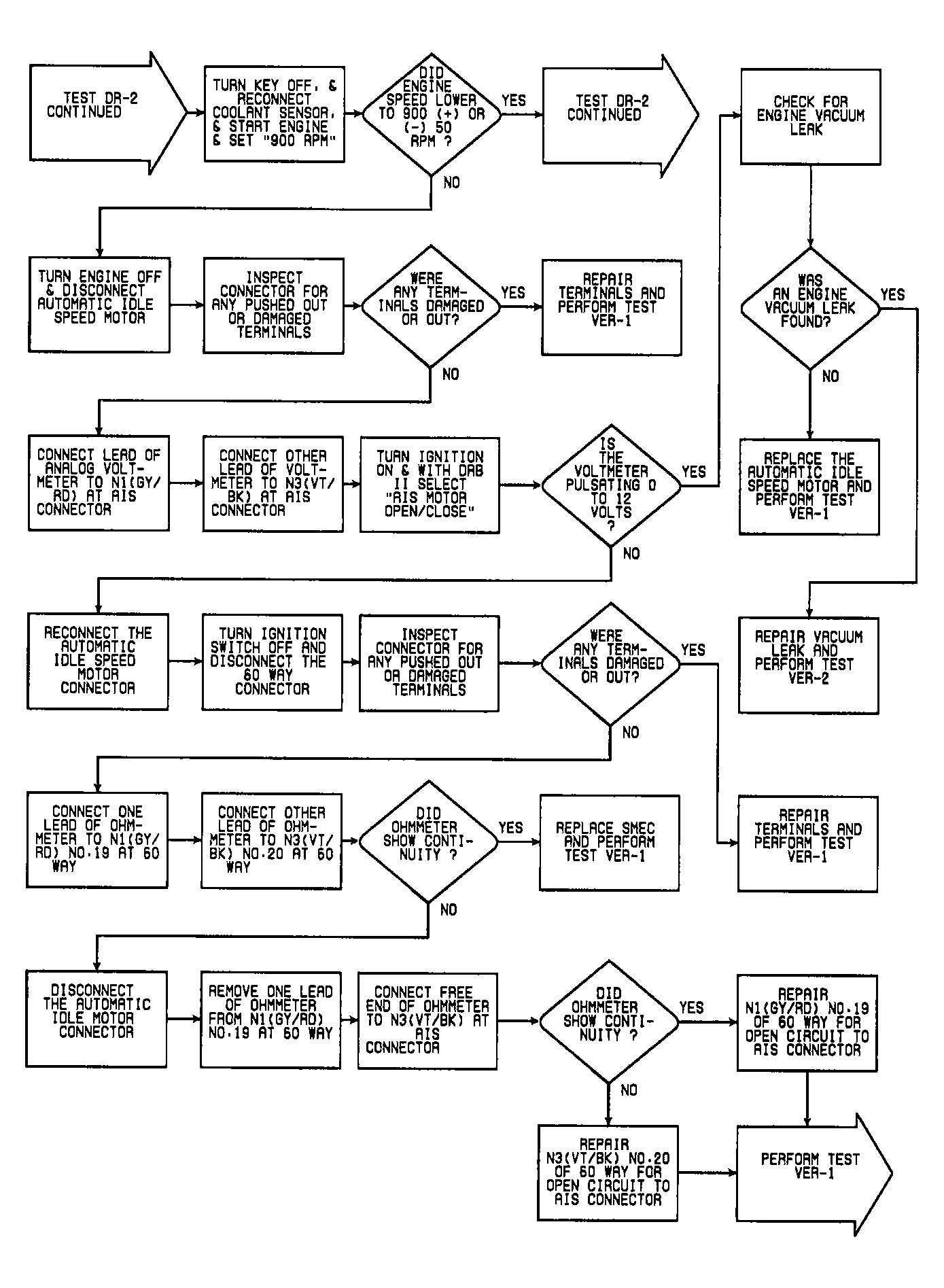

Fig 12: DR2 (12 of 16) - Checking AIS Motor Operation (Cont.)

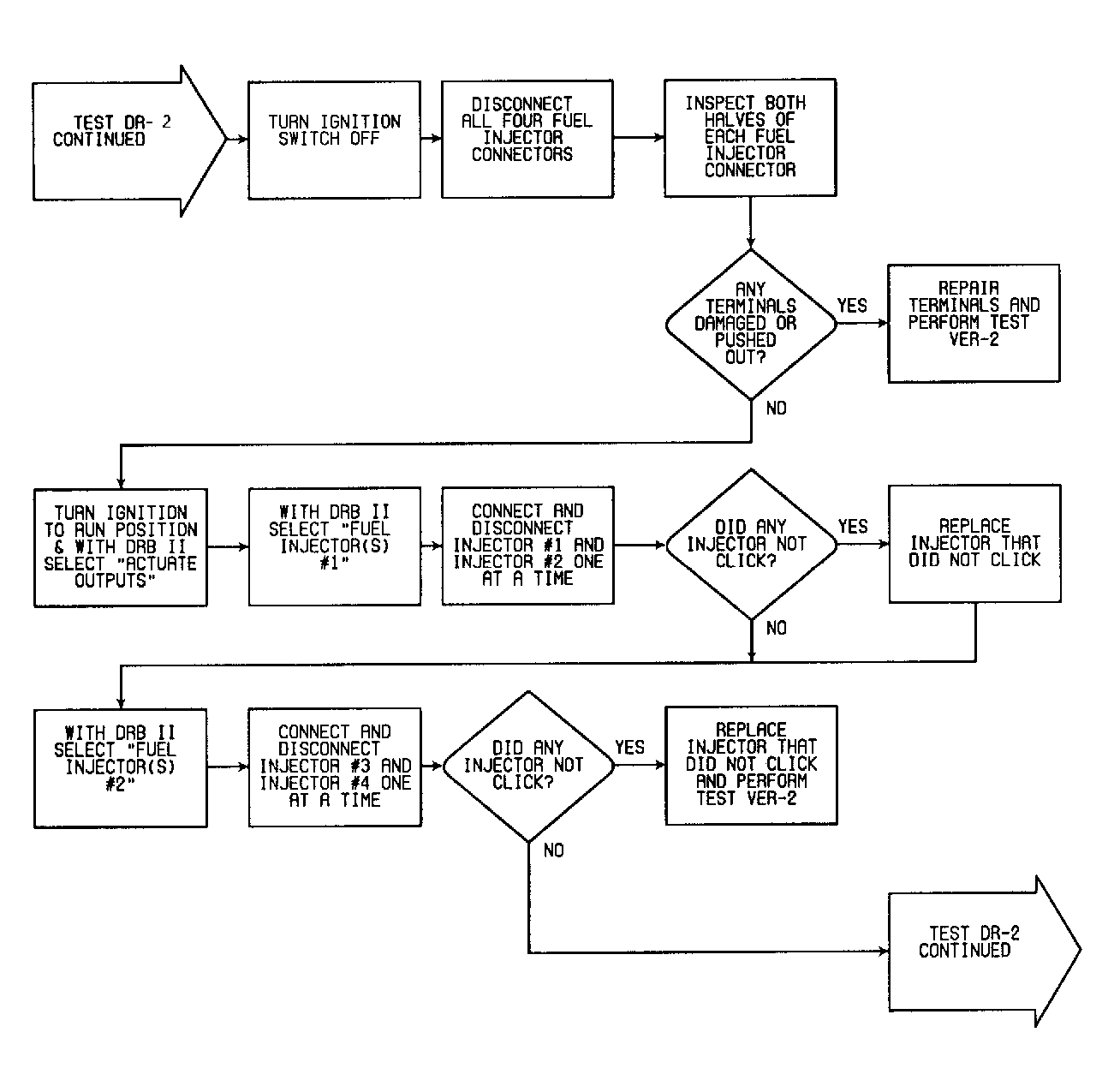

Fig 13: DR2 (13 of 16) - Checking Fuel Injectors

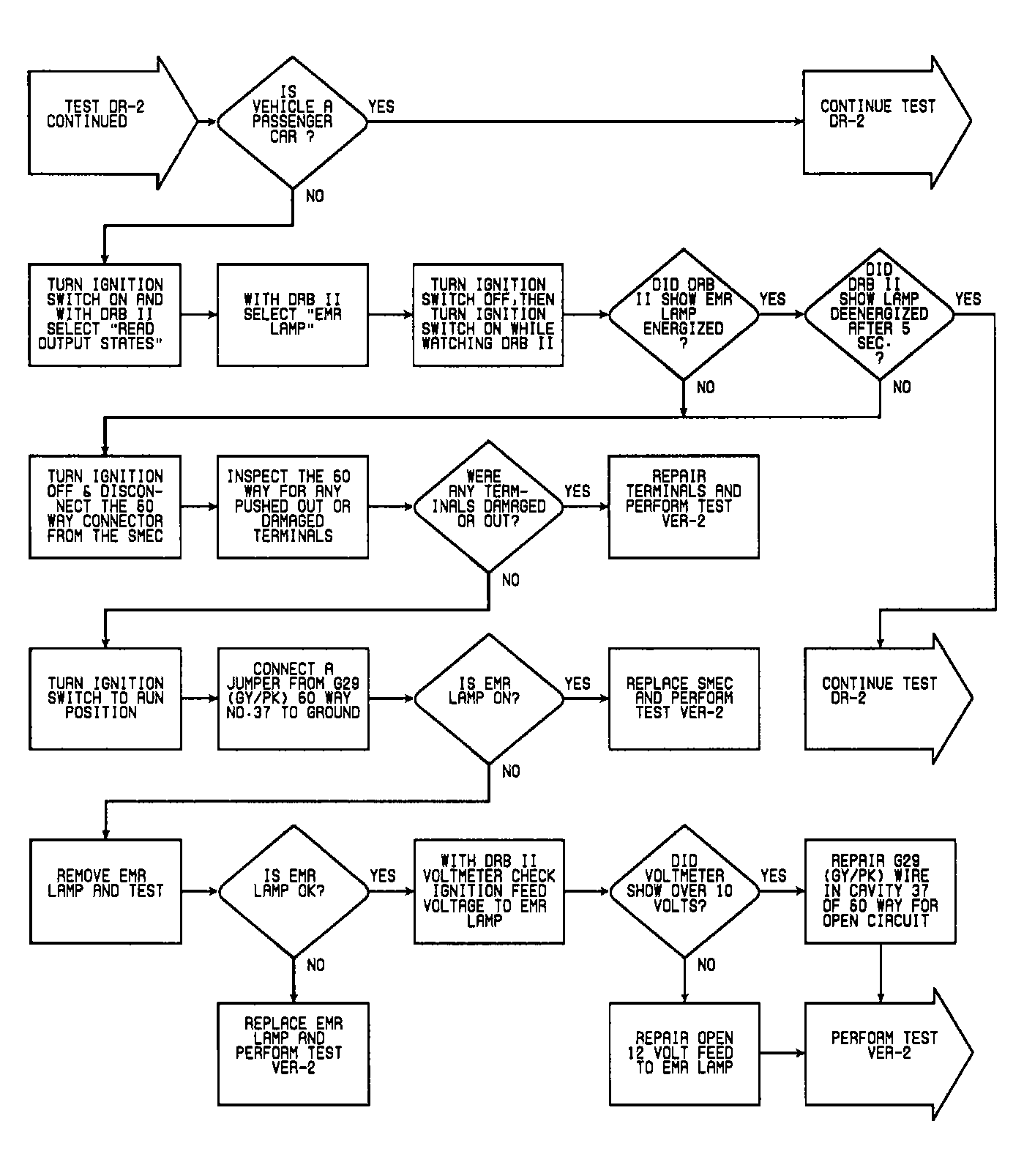

Fig 14: DR2 (14 of 16) - Checking Emissions Maintenance Reminder Light

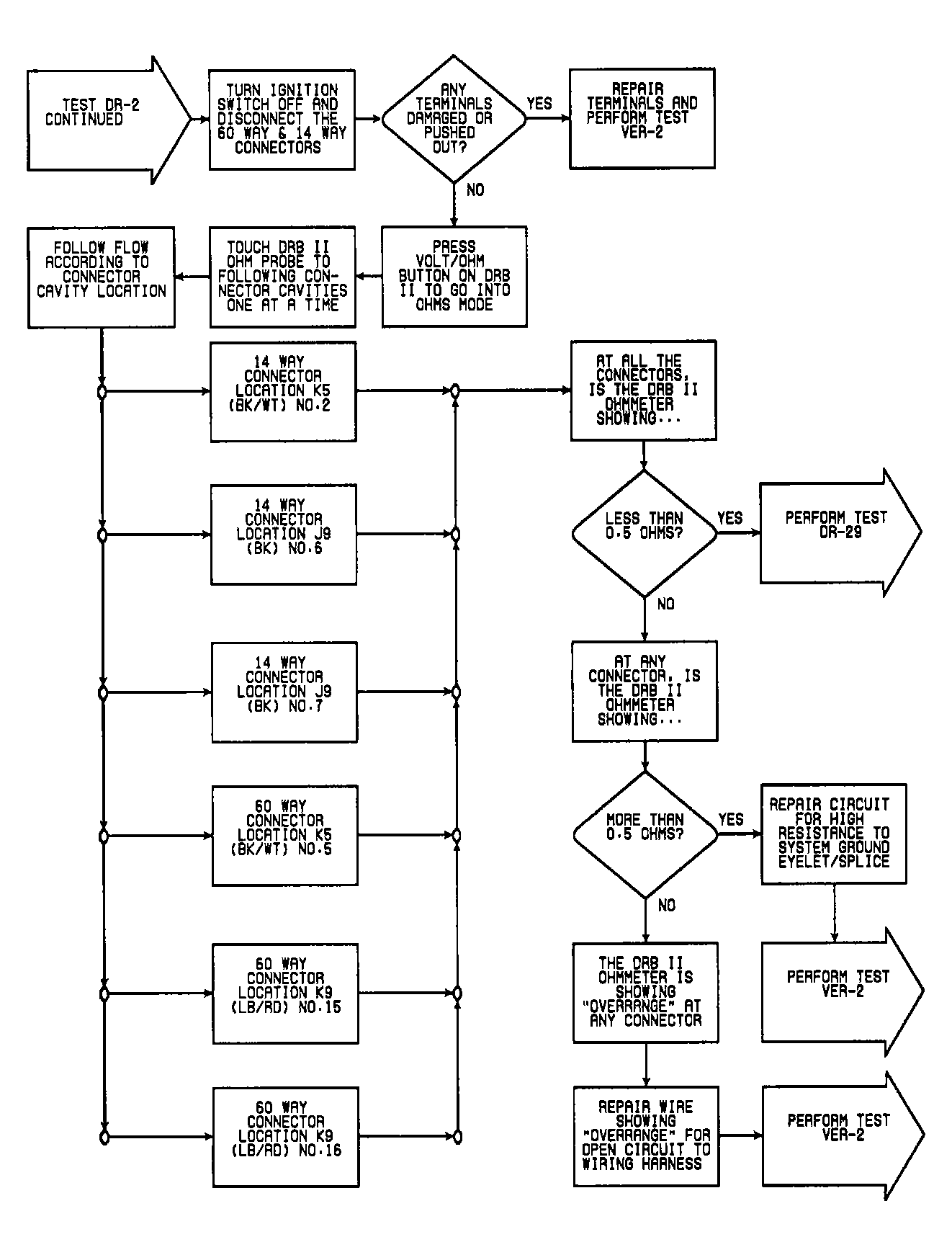

Fig 15: DR2 (15 of 16) - Checking SMEC Ground Circuits

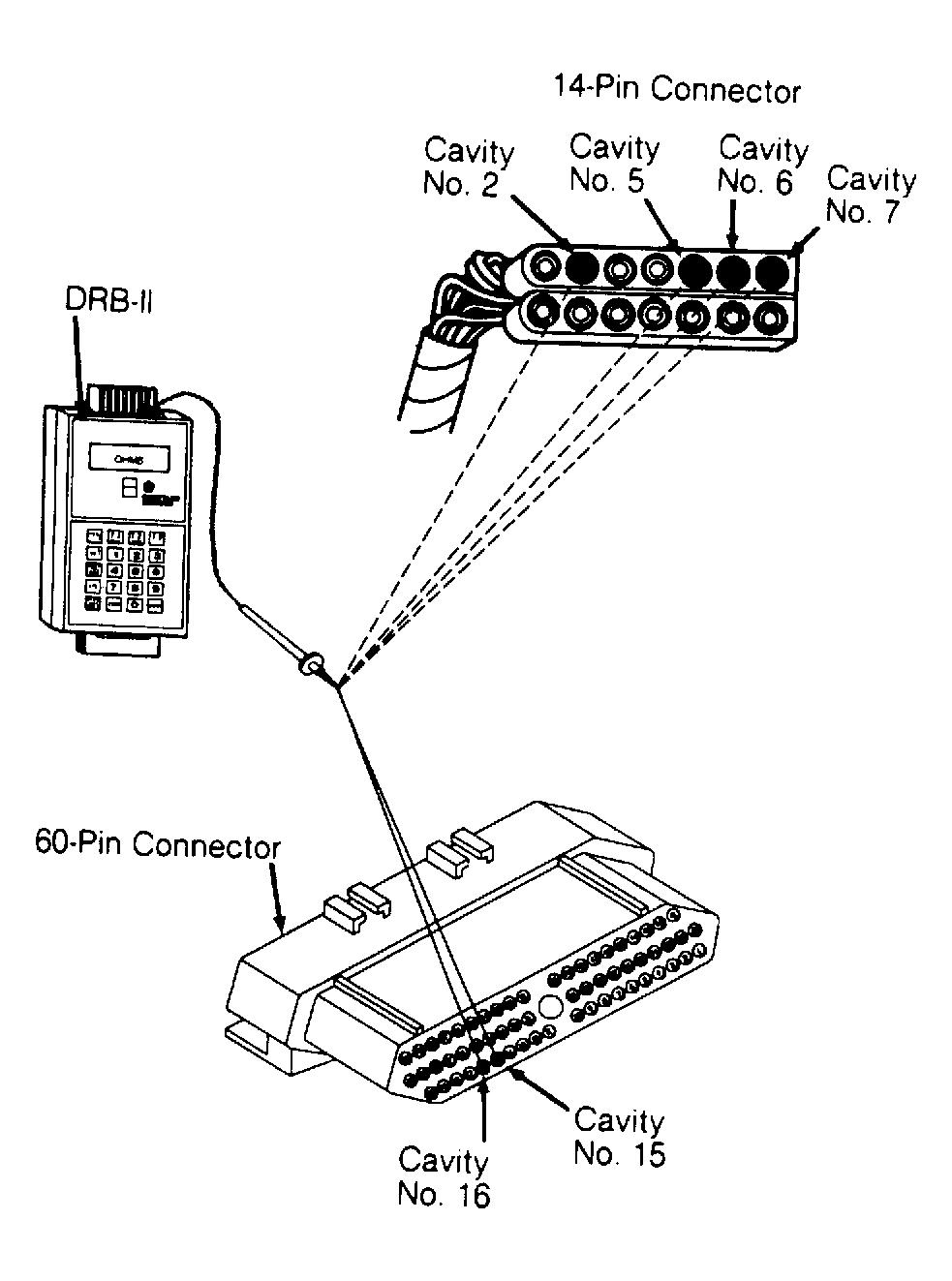

Fig 16: DR2 (16 of 16) - View Of 60-Pin & 14-Pin Connectors
