CCS4 - Checking Cruise Control On/Off Function

  1. Connect diagnostic readout box to engine harness connector. Put system in Sensor Test Mode 09. Move cruise control on/off switch to "ON" position. Connect jumper wire between cavities No. 2 and 15 of logic module Black connector (Blue on turbo). If readout box display is "blank", ensure terminal in connector cavity No. 15 is not damaged, causing a poor connection. If terminal is okay, replace logic module.

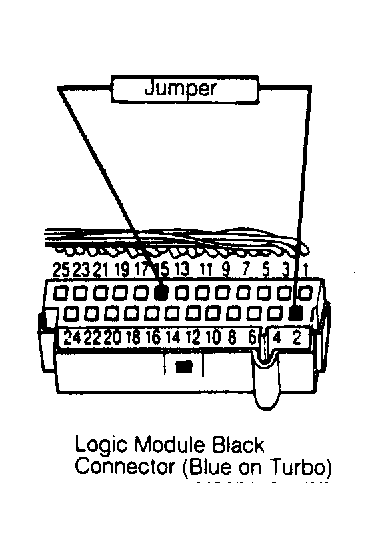

    Fig 1: Logic Module Black Connector (Blue on Turbo)
    G5910
  2. If "00" is displayed on readout box, connect jumper wire between Dark Blue/White and Yellow/Red wires of cruise control switch harness connector. DO NOT  disconnect cruise control switch connector. If "00" is displayed on readout box, replace cruise control switch.

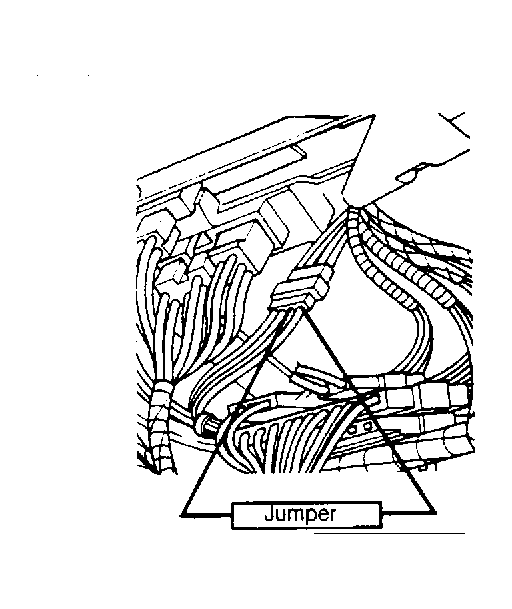

    Fig 2: Jumper
    G5911
  3. If readout box display is "blank", connect one end of jumper wire to cruise control switch harness connector Dark Blue/White wire and cavity No. 15 of logic module Black connector (Blue on turbo). DO NOT  disconnect cruise control switch connector. If readout box display is "00", repair Yellow/Red wire to cavity No. 15 for an open circuit to cruise control switch. If readout box display is "blank", repair Dark Blue/White wire for an open circuit to fuse box.

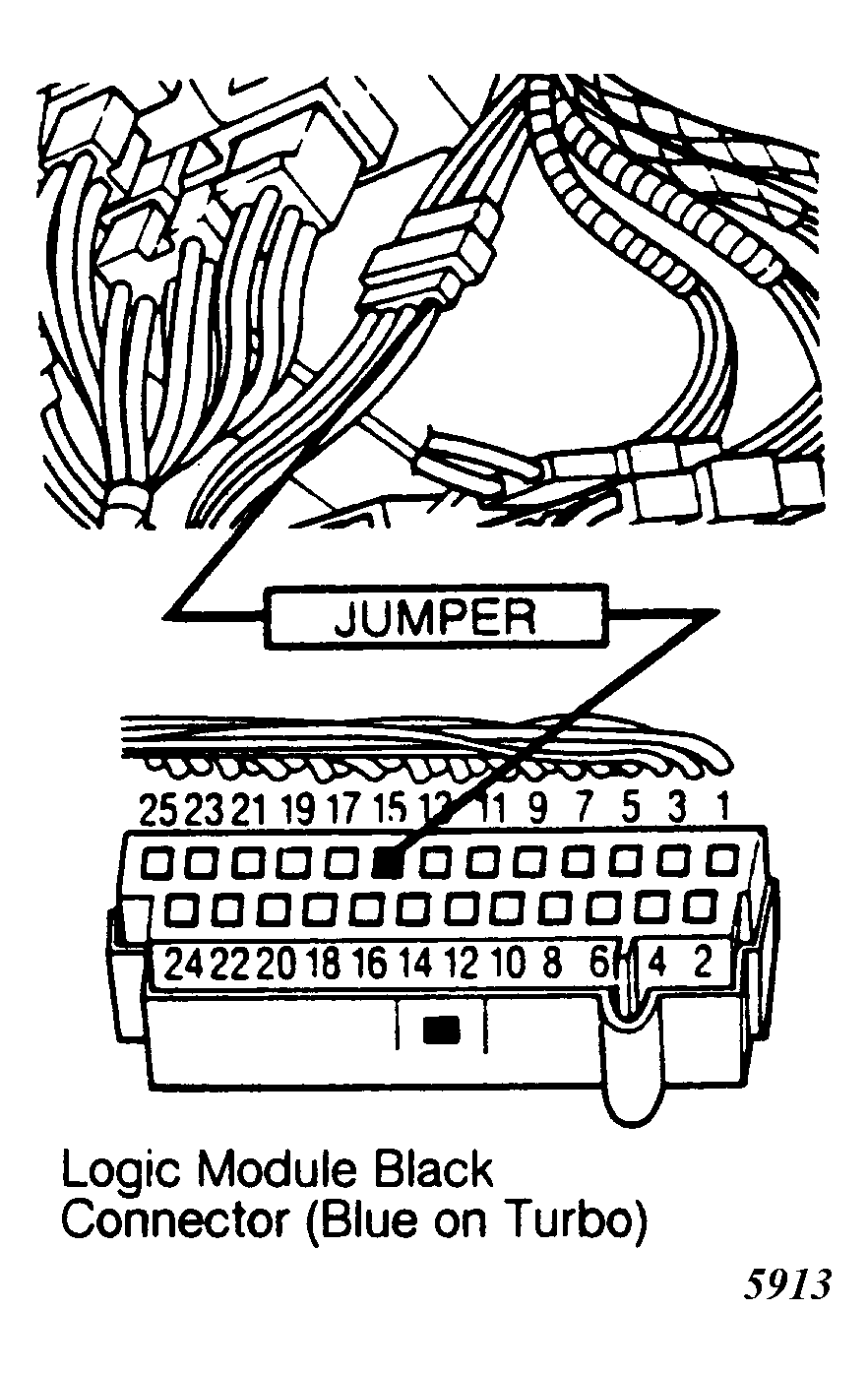

Fig 3: Logic Module Black Connector (Blue on Turbo)
G5913
