Duty Cycle Solenoid: Installation

  1. Install idle solenoid and anti-rattle spring. Install wide open throttle cut-out switch (if equipped). Adjust switch so air conditioning clutch circuit is open in throttle position of 10° before wide open throttle.
  2. Install new duty cycle solenoid gasket on air horn and install new "O" ring on duty cycle solenoid tip. Lightly lubricate solenoid with petroleum jelly and carefully install solenoid into carburetor. Install and tighten mounting screws. Route wiring through clamp and connect to harness. Install and tighten harness mounting screw.

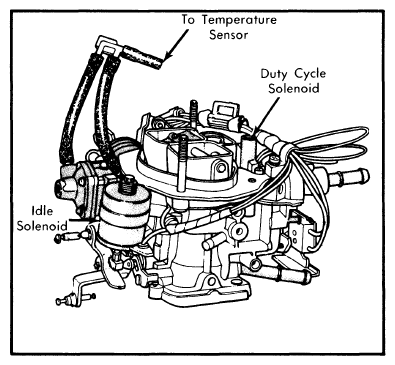

Fig 1: Replacing Duty Cycle Solenoid
G09340153Courtesy of CHRYSLER GROUP, LLC
