DTC P0351: Ignition Control Circuit A Fault

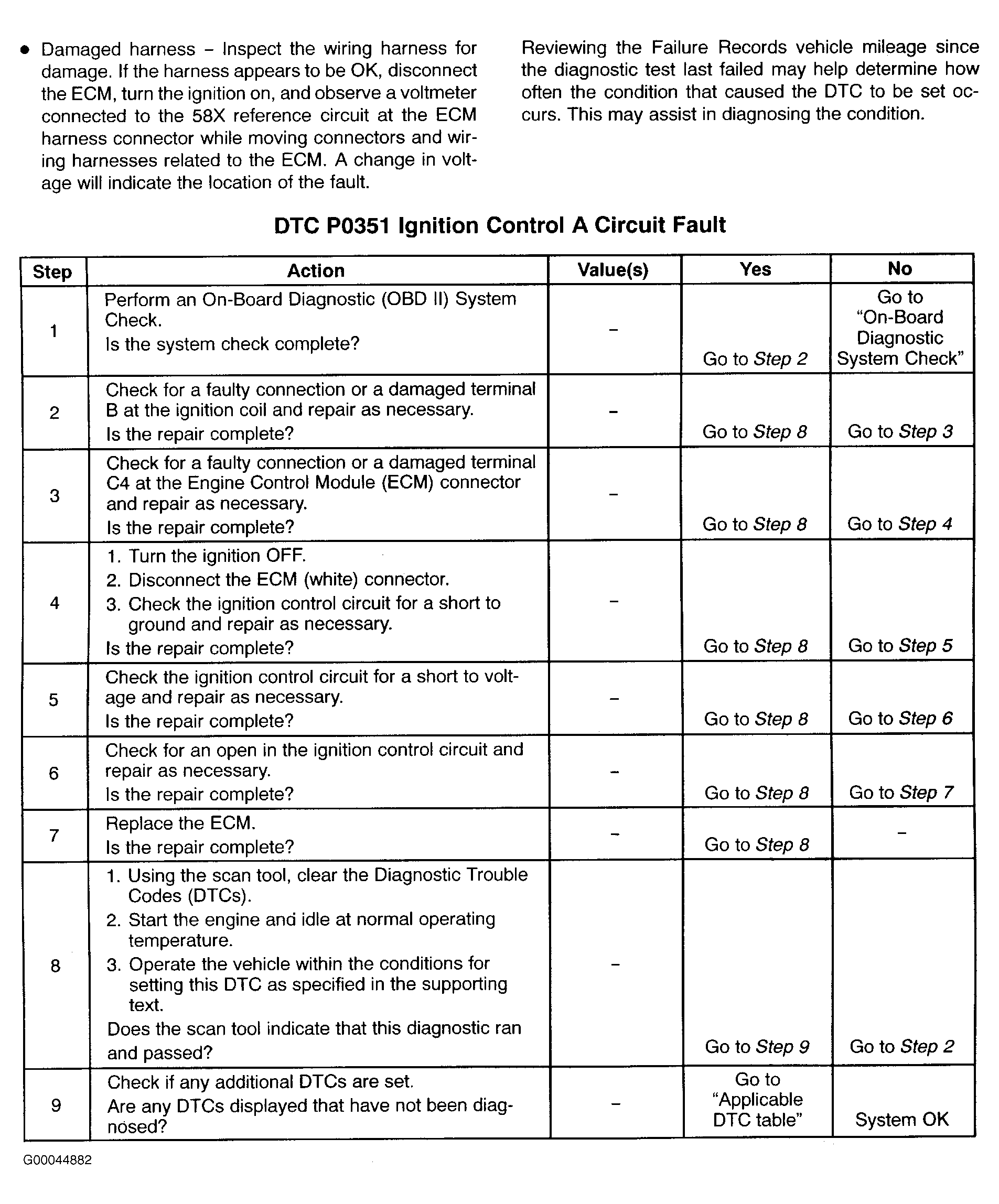

Fig 1: DTC P0351: Ignition Control Circuit A Fault (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

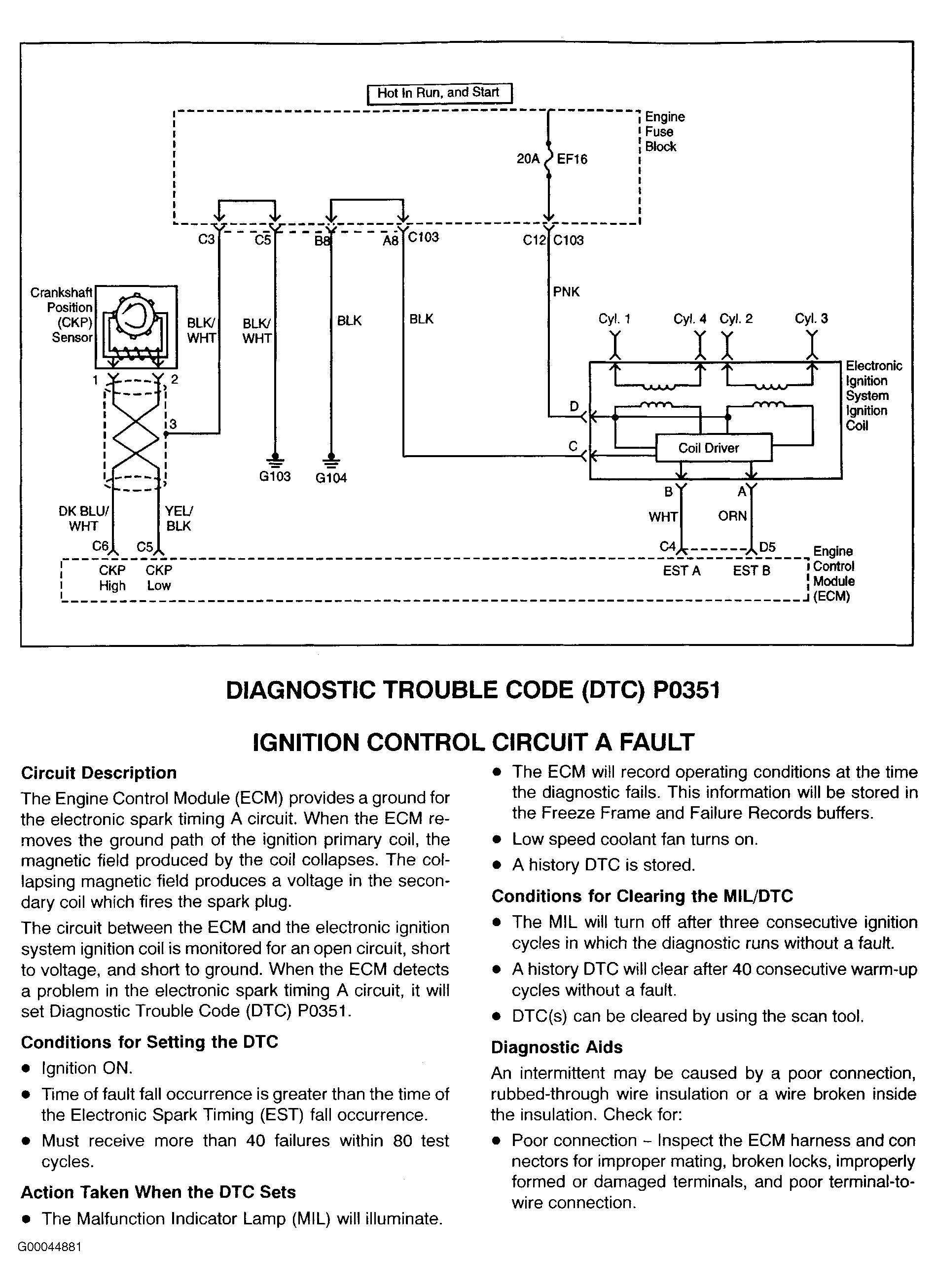

Fig 2: DTC P0351: Ignition Control Circuit A Fault (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
