Engine Cooling Fan Circuit Check - Without A/C: Notes

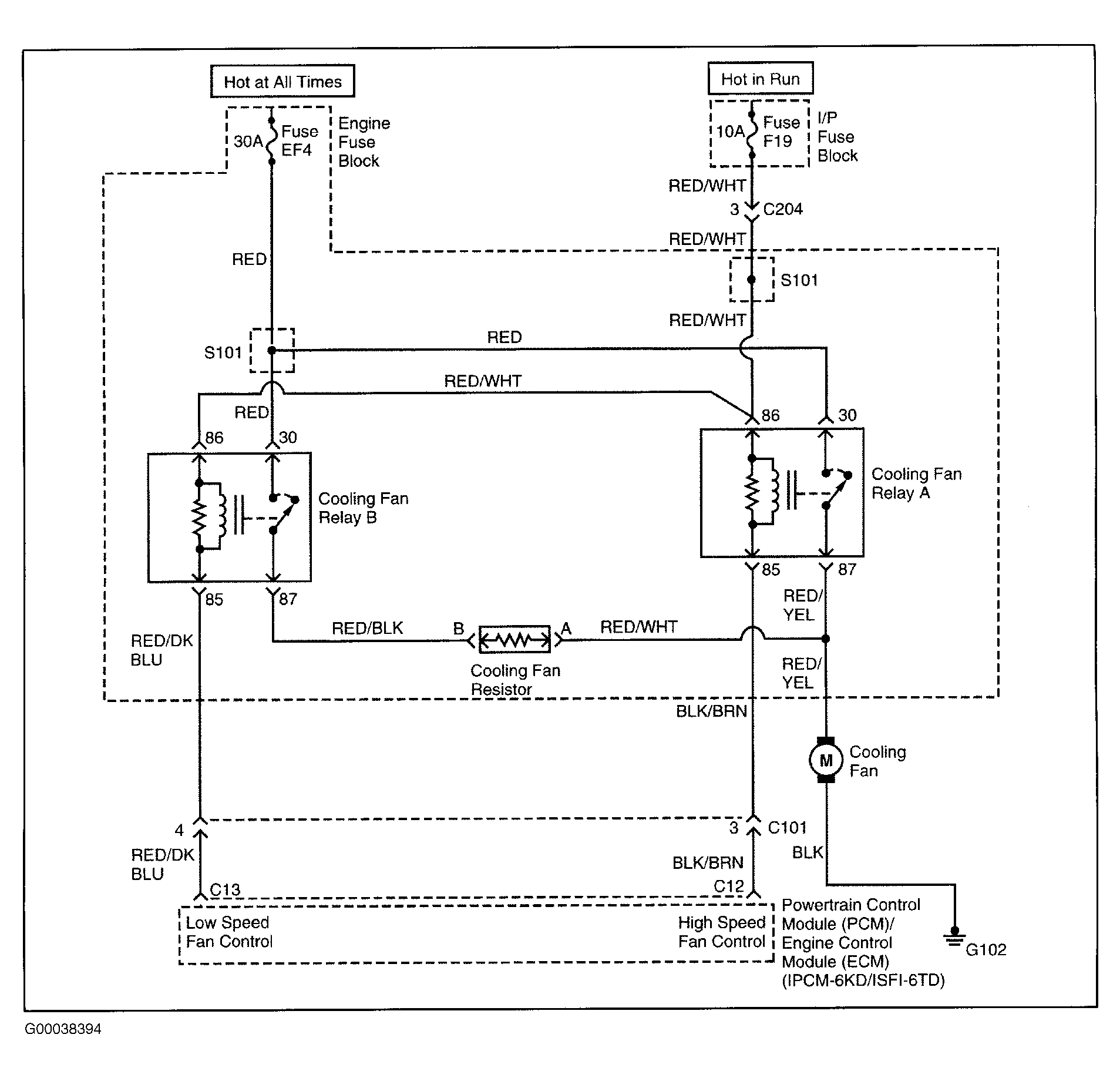

Fig 1: Engine Cooling Fan Circuit Diagram - Without A/C
G00038394Courtesy of DAEWOO
