DTC P0502: Vehicle Speed Sensor (Engine Side) Too Low: Notes

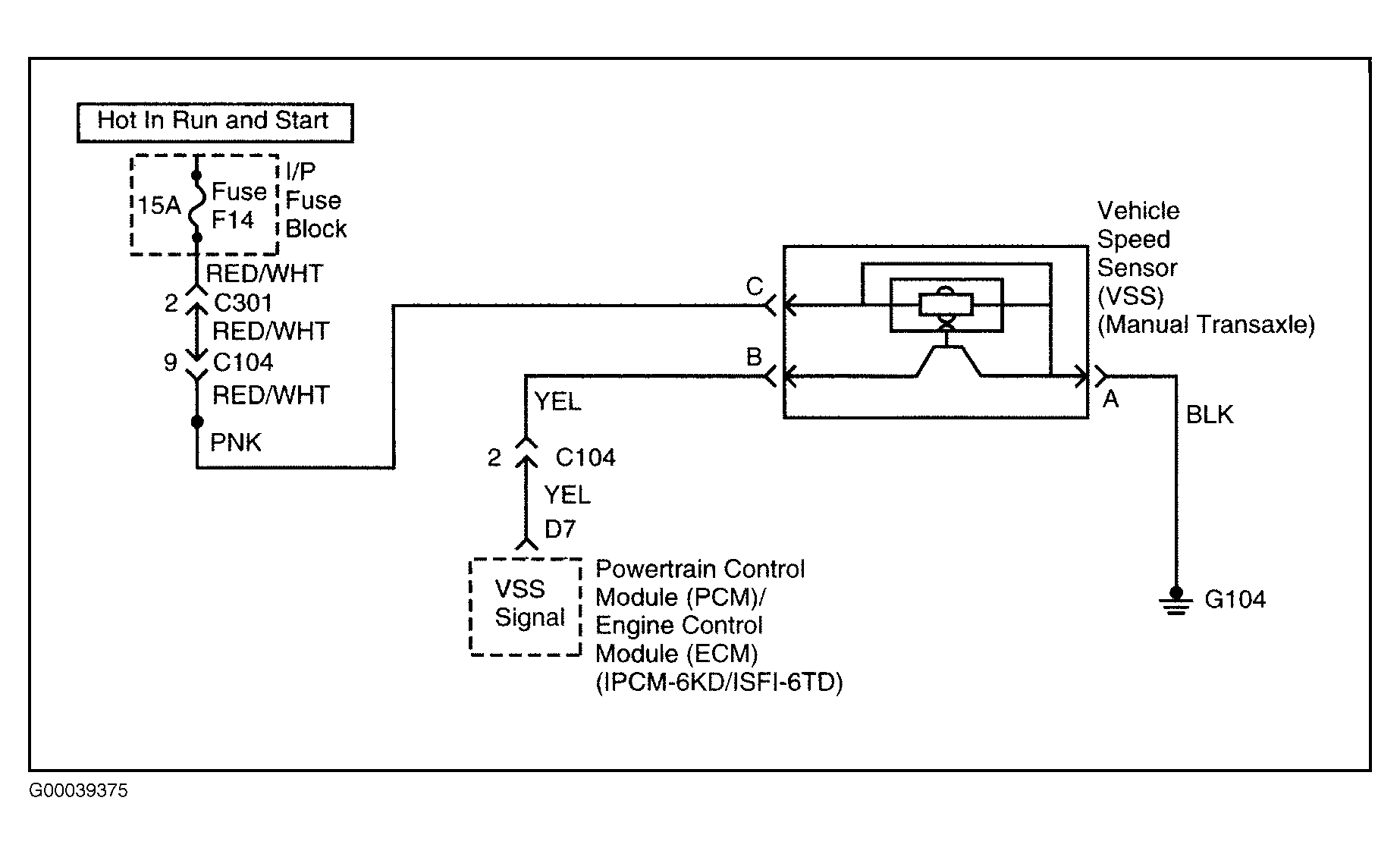

Fig 1: Speed Sensor Circuit Diagram

G00039375

Courtesy of DAEWOO
