DTC P0300: Multiple Cylinder Misfire Detected: Notes

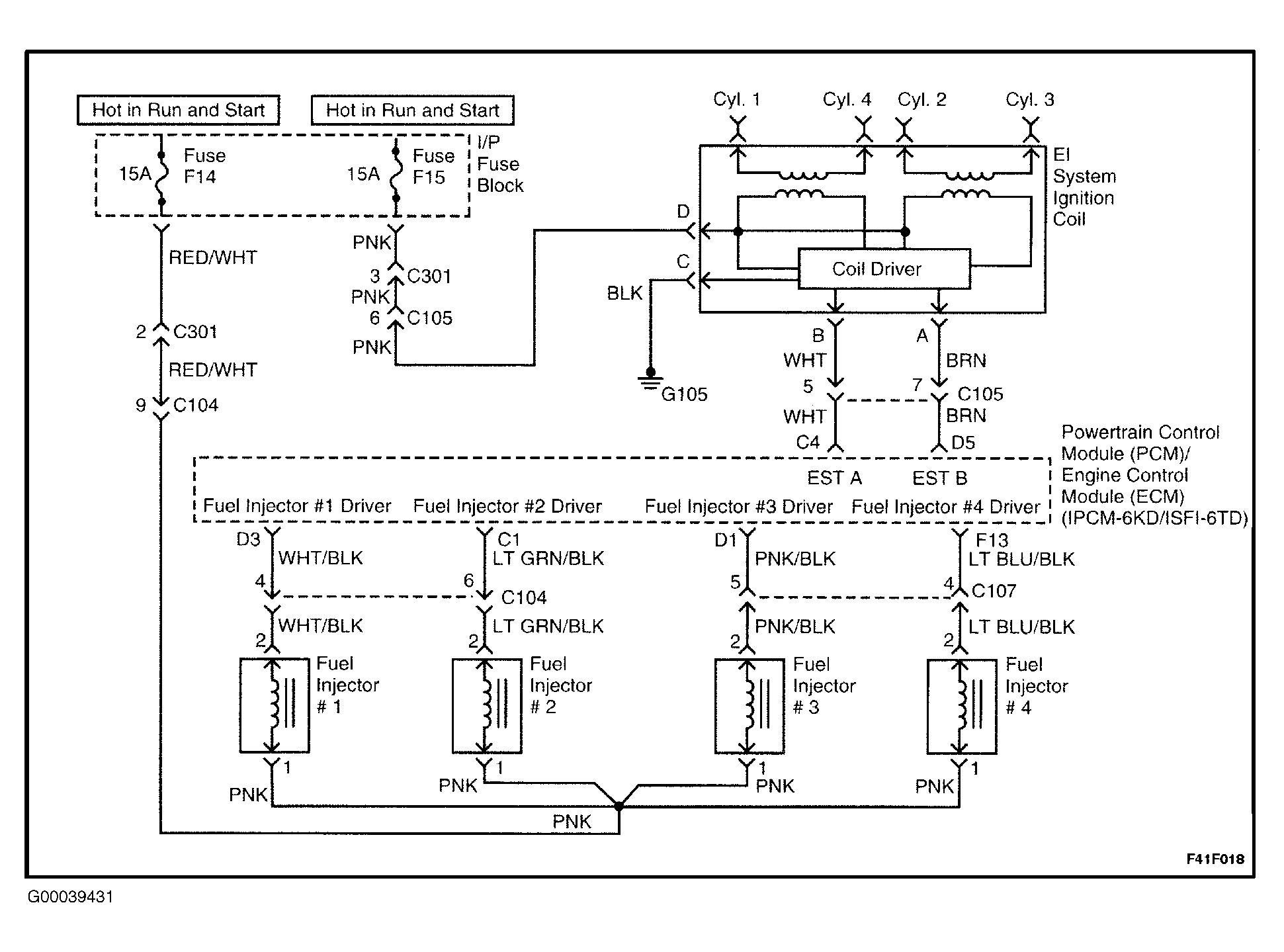

Fig 1: Fuel Injection Circuit Diagram

G00039431

Courtesy of DAEWOO
