Removal & Installation

  1. Disconnect negative battery cable. Remove rear portion of floor console. Disconnect control module/receiver electrical connector. Slide control module/receiver away from its mounting bracket. See Fig 1 .
  2. Install control module/receiver on its mounting bracket. Connect control module/receiver electrical connector. Install floor console. Connect negative battery cable.

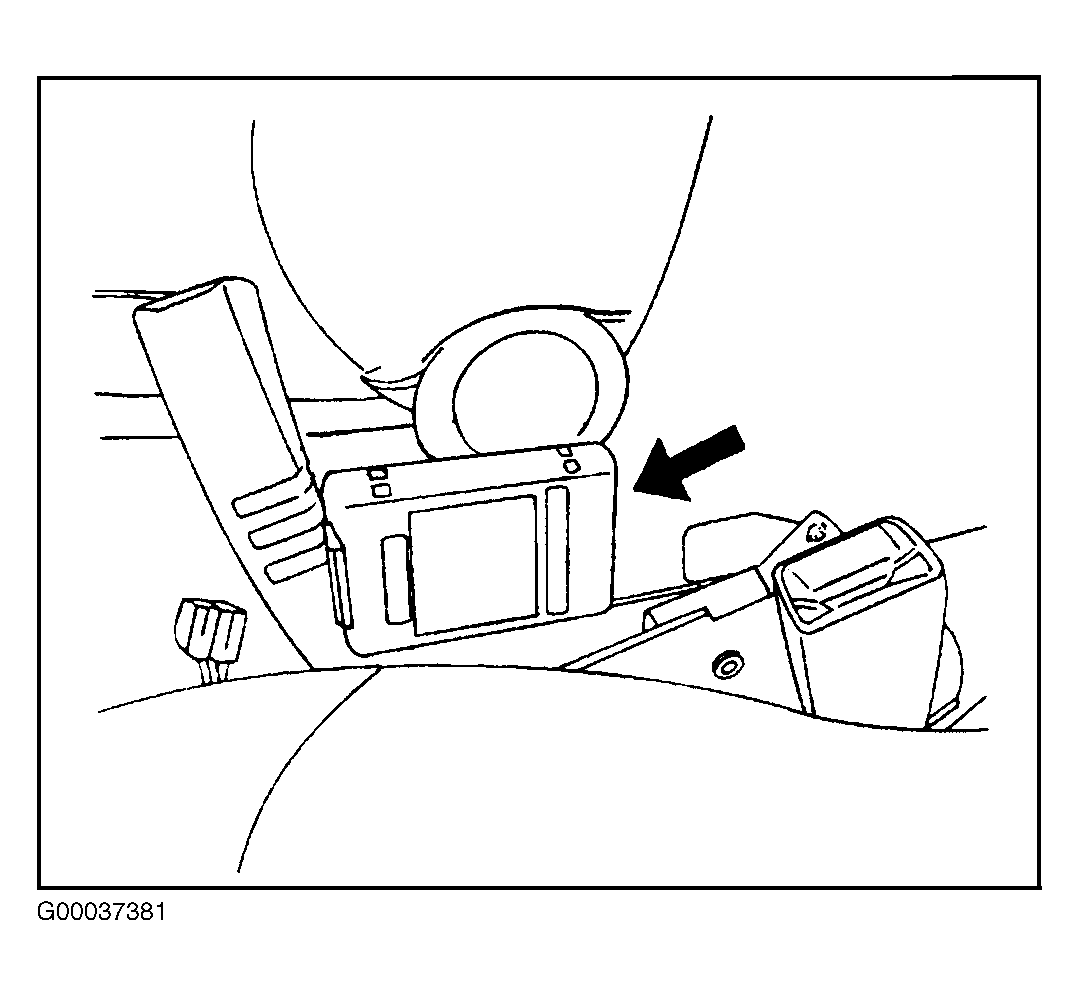

Fig 1: Identifying Control Module/Receiver
G00037381Courtesy of DAEWOO MOTOR AMERICA, INC.

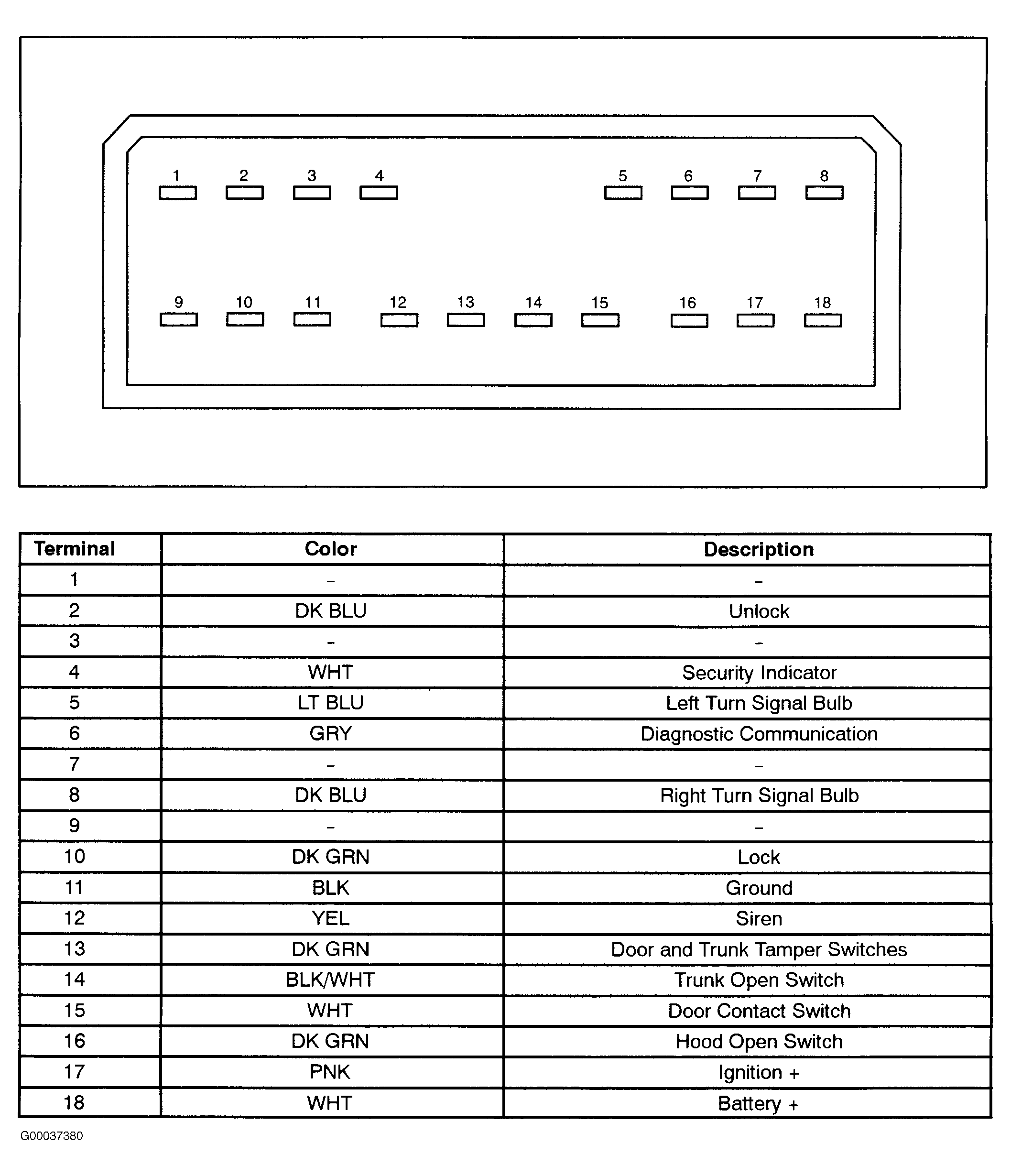

Fig 2: Identifying Control Module/Receiver Connector
G00037380Courtesy of DAEWOO MOTOR AMERICA, INC.
