With Integrated Screen: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

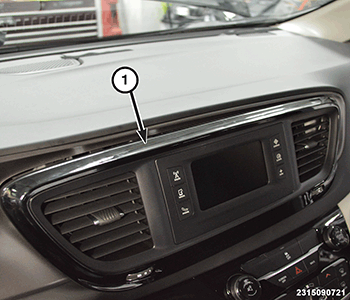

    GC0178180Courtesy of CHRYSLER GROUP, LLC
    1 - Radio Trim Bezel
  2. With a suitable tool, remove the radio trim bezel and disconnect the wire harness connectors.
  3. Remove the radio to radio bezel screws, and remove the radio from the bezel.
