8.4 Inch Screen: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

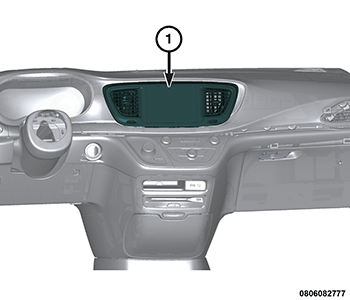

    GC0177182Courtesy of CHRYSLER GROUP, LLC
    1 - Radio Display Trim Bezel
  2. With a suitable tool, remove the radio display trim bezel and disconnect the two wire harness connectors.

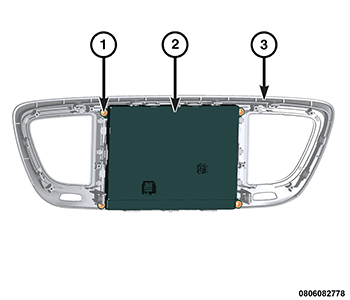

    GC0177722Courtesy of CHRYSLER GROUP, LLC
    1 - Radio Bezel Screws
    2 - Display
    3 - Bezel
  3. Remove the five radio screen to radio bezel screws, and remove the display from the bezel.
