10.1 Inch Screen: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0177182Courtesy of CHRYSLER GROUP, LLC
    1 - Radio Display Trim Bezel
  2. With a suitable tool, remove the radio display trim bezel (1) and disconnect the wire harness connectors.

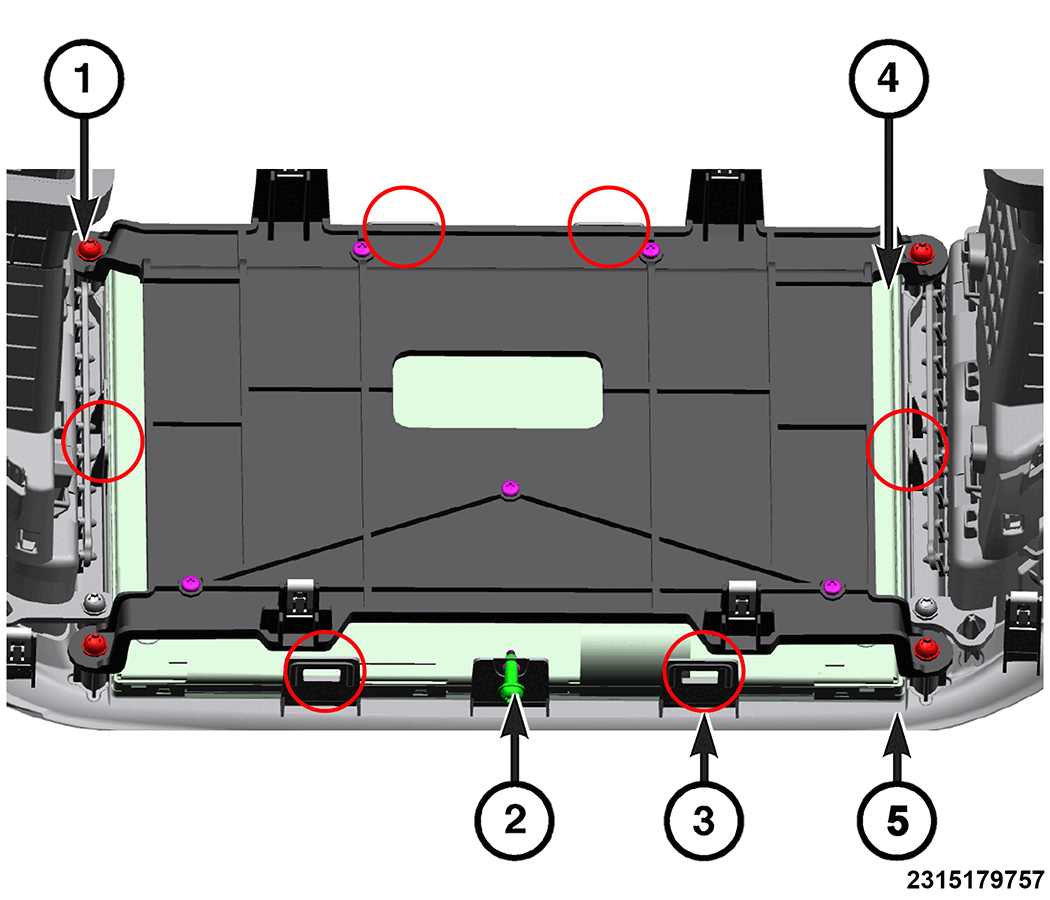

    GC0200376Courtesy of CHRYSLER GROUP, LLC
    1 - Mounting Bracket Fasteners
    2 - Fastener
    3 - Tabs
    4 - DSM
    5 - Display Bezel
  3. Remove the Display Screen Module (DSM) mounting bracket fasteners.
  4. Remove the fastener from the lower side of the DSM.
  5. Release the tabs around the perimeter of the DSM. Remove the DSM and bracket from the display bezel.

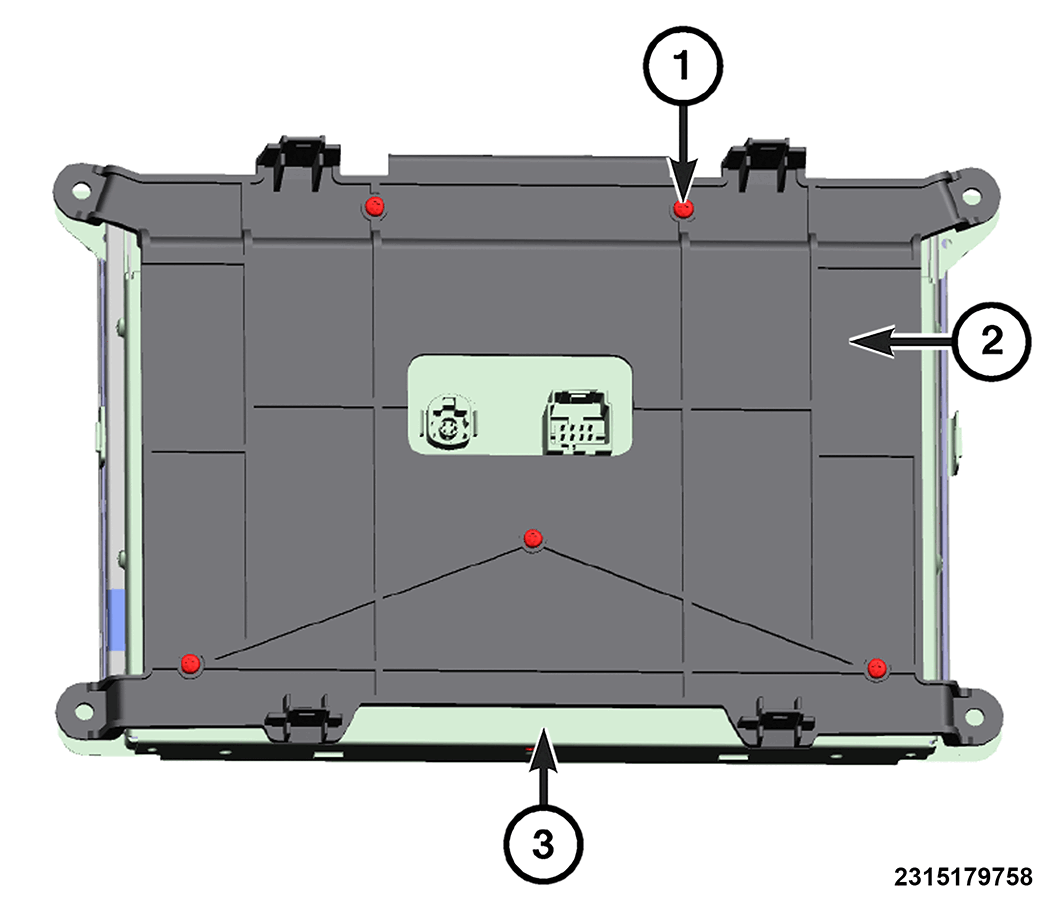

    GC0200302Courtesy of CHRYSLER GROUP, LLC
    1 - Fasteners
    2 - DSM Bracket
    3 - DSM
  6. If necessary, remove the fasteners and separate the DSM from the DSM bracket.
