Without Trailer Tow: Installation

WARNING: This page is about a different variant/trim than selected.

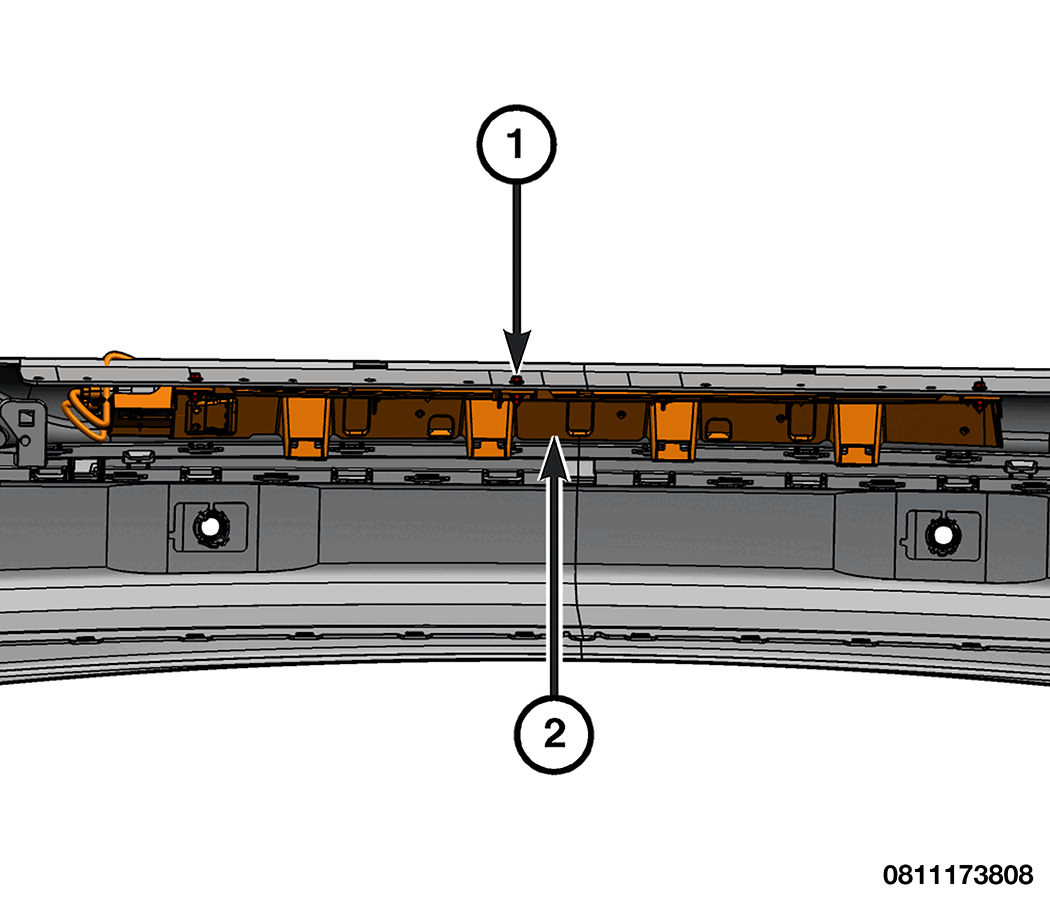

GC0200297Courtesy of CHRYSLER GROUP, LLC
  1. Position the Hands Free Entry Power Liftgate (HFEPLG) module (2) to the vehicle for installation.
  2. Install the fasteners (1) to secure the HFEPLG module with sensor (2) to the vehicle and tighten securely.

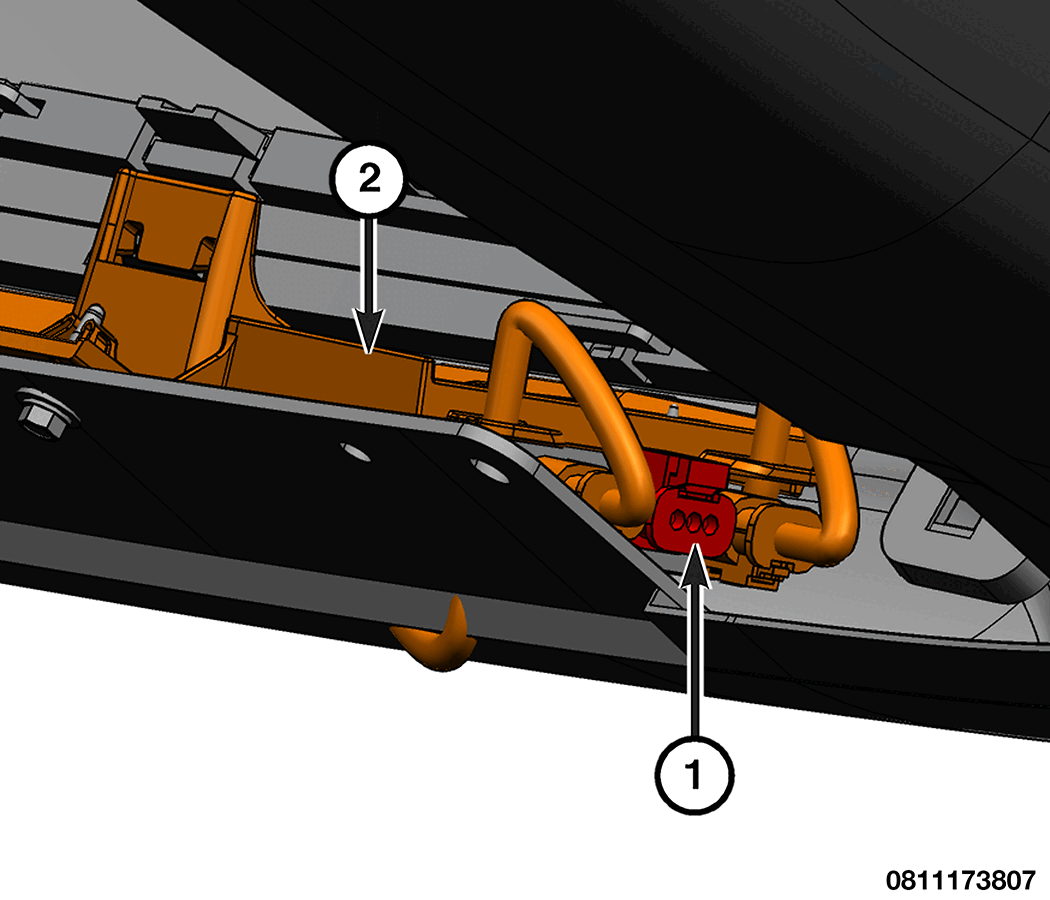

    GC0200338Courtesy of CHRYSLER GROUP, LLC
  3. Connect the wiring harness connector (1) to the HFEPLG module (2).
  4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
