Module-Electronic Overhead-Rear (Standard) Connector End View (D3114A)

Harness-Family: Headliner

Color: GRAY

Gender: FEMALE

Part Number: 30700-1060

Part Description: Not Available

Connector No: D3114A

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 6

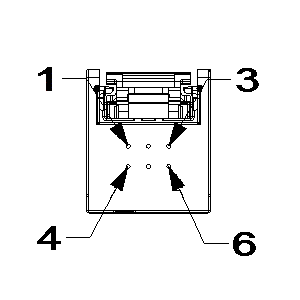

Fig 1: Module-Electronic Overhead-Rear Connector End View (Standard)

Courtesy of CHRYSLER

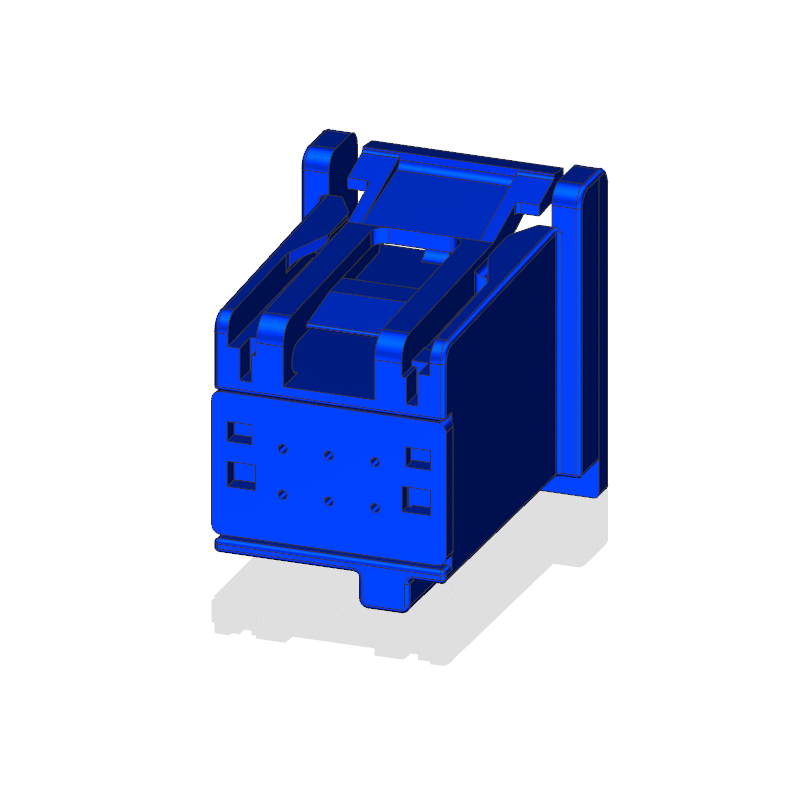

Fig 2: Module-Electronic Overhead-Rear Isometric View (Standard)

Courtesy of CHRYSLER

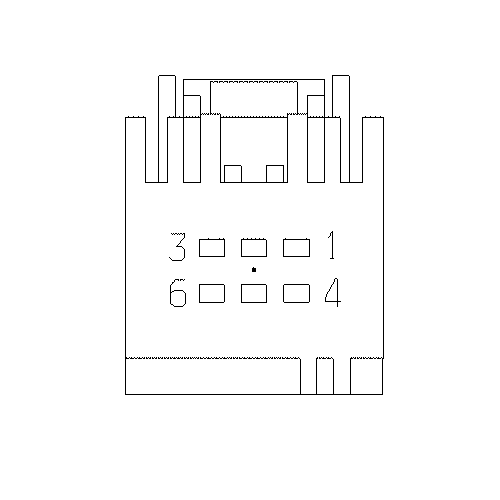

Fig 3: Module-Electronic Overhead-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

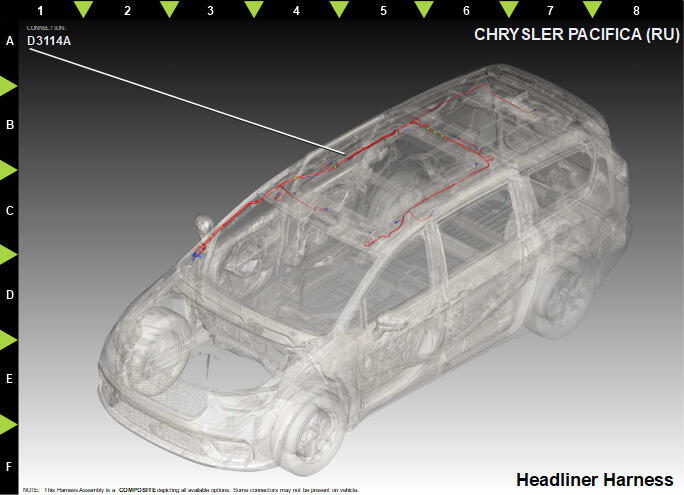

Fig 4: Module-Electronic Overhead-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D274	WH/OG	0.35	CAN IHS (-)	N/A
2	D273	OG/DG	0.35	CAN IHS (+)	N/A
3	A912	RD	0.35	FUSED B(+)	N/A
4	Z912	BK	0.35	GROUND	N/A
