Module, Electronic Shift (ESM): Installation: Shifter

  1. Connect the electrical connector to the Electronic Shift Module (ESM), prior to installing the ESM in to the vehicle.

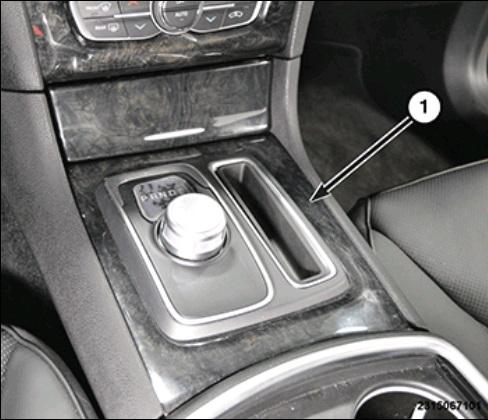

    G00381300Courtesy of CHRYSLER GROUP, LLC
  2. Install the ESM bezel assembly (1).
  3. Connect the battery negative cable.
