Removal And Installation - Module: Installation

WARNING: This page is about a different variant/trim than selected.

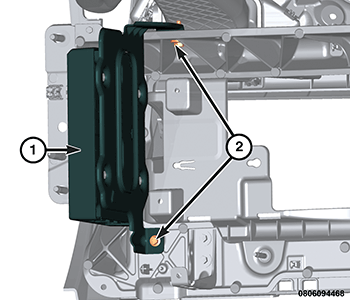

GC0177988Courtesy of CHRYSLER GROUP, LLC
  1. Position the amplifier (1) to the instrument panel carrier frame.
  2. Install and securely tighten the amplifier bracket to instrument panel carrier frame bolts (2).
  3. Connect the wire harness connectors to the amplifier.
  4. Install the right floor distribution duct. Refer to DUCT, FLOOR DISTRIBUTION, REMOVAL AND INSTALLATION .
  5. Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
