Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the Power Inverter Module (PIM) to the bracket.

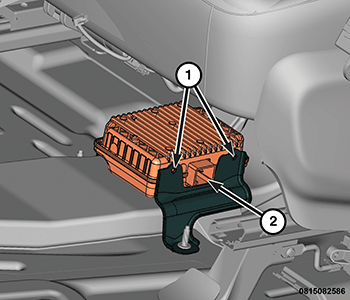

    GC0177799Courtesy of CHRYSLER GROUP, LLC
  2. Install and tighten the fasteners (1) to secure the PIM to the PIM bracket.
  3. Connect the wiring harness connector to the PIM connector receptacle (2).
  4. Install the module cover.
  5. Connect the negative battery cable.
