E-Shifter Removal: Notes

WARNING: This page is about a different car, the 2016 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.

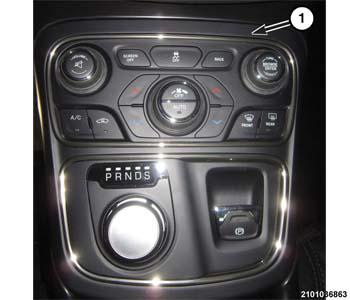

    Fig 1: Lower Center Stack
    GC0162890Courtesy of CHRYSLER GROUP, LLC
  2. Remove the lower center stack (1) from the center floor console using (special tool #C-4755, Trim Stick) or equivalent.

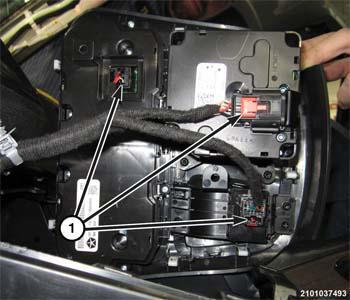

    Fig 2: Wire Harness Connectors At Lower Center Stack
    GC0162691Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connectors (1) from the lower center stack.

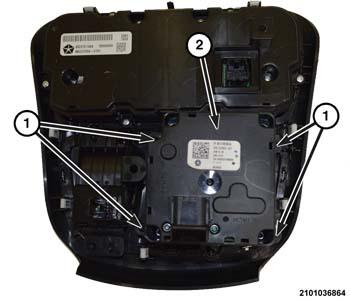

    Fig 3: E-Shifter & Screws
    GC0162593Courtesy of CHRYSLER GROUP, LLC
  4. Remove the four screws (1) that secure the E-Shifter (2) to the backside of the lower center stack and remove the E-Shifter.
