Module, Body Control: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable from the battery post/terminal.
  2. Remove the remote park release access panel.
  3. Remove the left sill and cowl panel. Refer to PANEL, COWL TRIM, REMOVAL .
  4. Remove the park brake release rod at the park brake, remove lever and rod. Refer to PEDAL, PARKING BRAKE, REMOVAL .
  5. Disconnect the park brake switch harness connector.
  6. Position the park brake assembly aside (3 nuts)

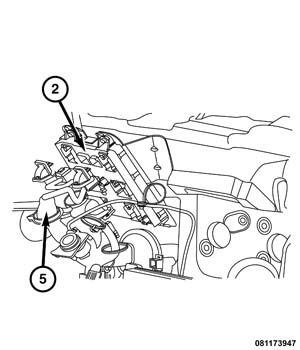

    Fig 1: BCM & Harness Connectors
    GC0154501Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect the harness connectors (5) and retainers at the BCM (2).

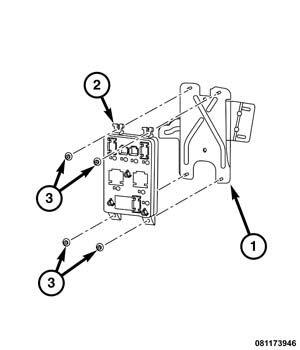

    Fig 2: Removing/Installing BCM
    GC0154493Courtesy of CHRYSLER GROUP, LLC
  8. Remove the two lower and two upper BCM bolts (3) to remove the BCM (2) from the bracket.
