U0125-00-Lost Communication With Multi - Axis Acceleration Sensor Module: Notes

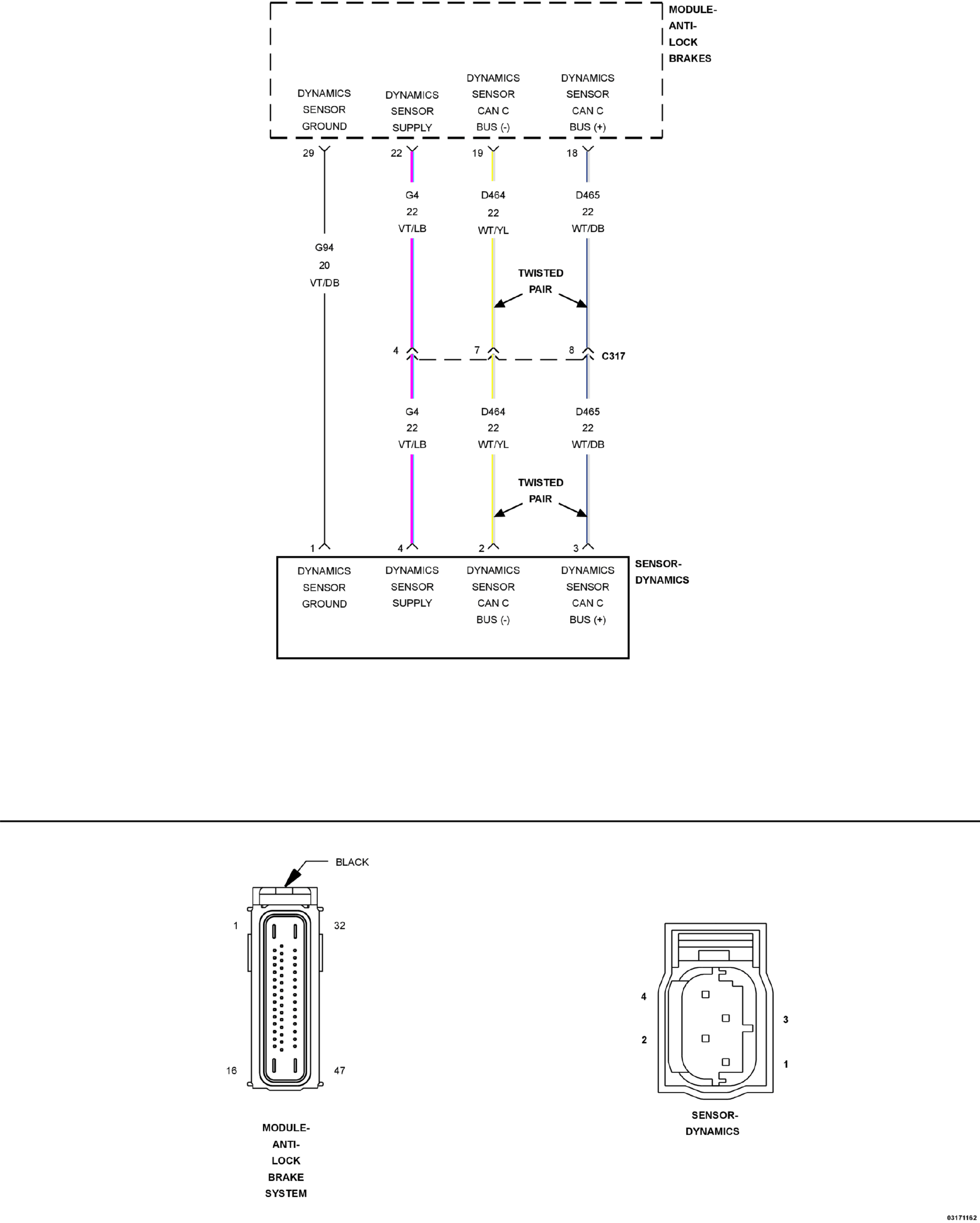

Fig 1: Dynamic Sensors Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
