Checking The Cooling Fan Performance: Notes

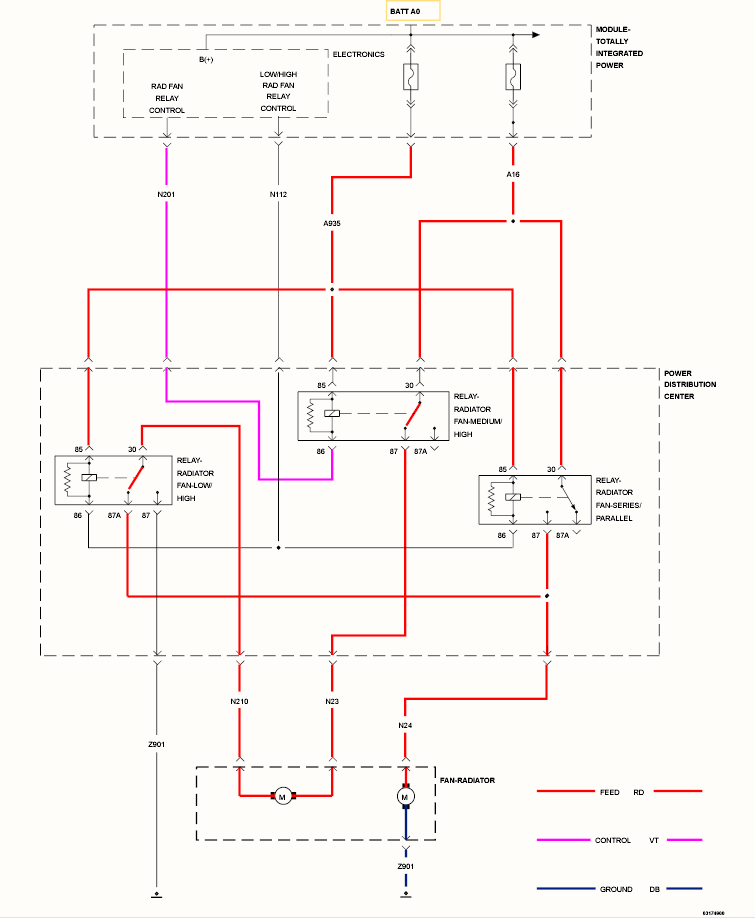

Fig 1: Low Speed Operation

Courtesy of CHRYSLER GROUP, LLC

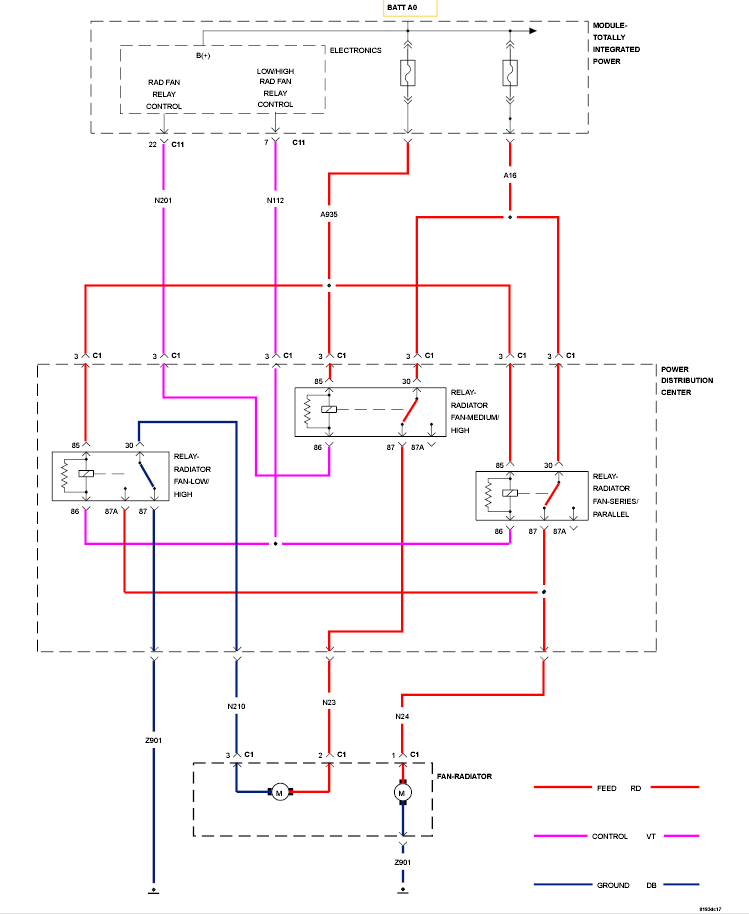

Fig 2: Hi Speed Operation

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
