Retractor, Seat Belt, Rear Center: Installation: Installation

Fig 1: Removing/Installing Rear Seat Belt Buckle
GC0122053Courtesy of CHRYSLER GROUP, LLC
WARNING:

Inspect the condition of the shoulder/lap belt. Replace the retractor if the belt is cut, frayed, torn, or damaged in any way. Failure to inspect the belts could result in improper restraint and could cause occupant serious or fatal injury.

  1. Route webbing and bezel through rear shelf trim panel.
  2. Install the seat belt anchor and buckle (4) onto the stud.
  3. Install nut and tighten to 101 N.m (74.5 ft. lbs.).

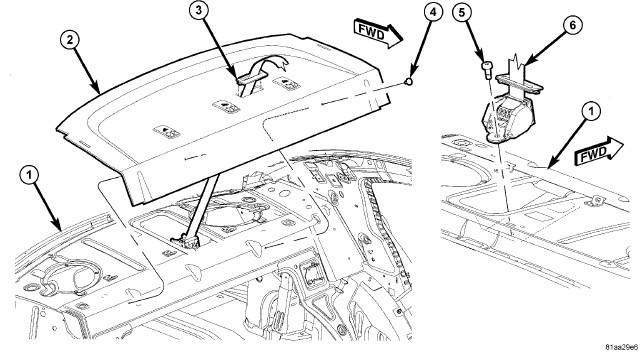

    Fig 2: Removing/Installing Rear Center Seat Belt Retract
    GC0122066Courtesy of CHRYSLER GROUP, LLC
  4. Install the center rear seat belt retractor assembly on the rear shelf. Tighten the bolt to 52 N.m (38.5 ft. lbs.).
  5. Install the rear shelf trim panel. Refer to PANEL, REAR SHELF, INSTALLATION .
