MODULE, Oxygen Sensor, 6.7L Diesel: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

PICK UP MODELS

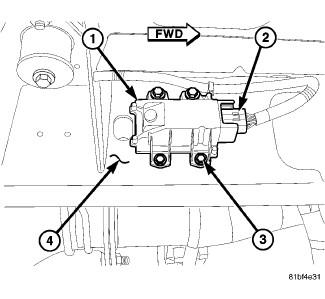

Fig 1: Identifying O2 Sensor Module
GC0108854Courtesy of CHRYSLER LLC
  1. Install the Oxygen (O2) sensor module (1) to frame rail (4). Tighten bolts (3) to 6 N.m (53 in. lbs.).
  2. Connect the O2 sensor module (1) harness connector (2).
  3. Lower vehicle.
  4. Connect both negative battery cables.
