Module, Fuel Pump Control: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

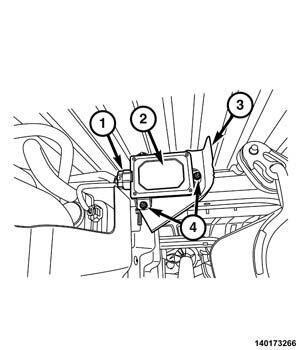

Fig 1: Removing/Installing Fuel Pump Control Module
GC0154484Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the battery negative cable.
  2. Raise the vehicle.
  3. Disconnect the fuel pump control module electrical connector (1).
  4. Remove the nuts (4) from the studs.
  5. Remove the fuel pump control module (2) from the frame.
  6. If required, remove the heat shield (3).
