Module, Air Suspension Control: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

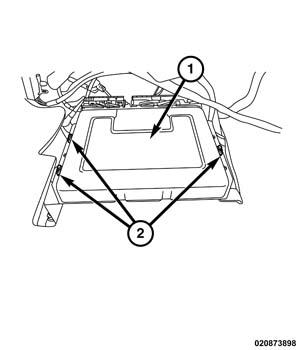

Fig 1: Air Suspension Control Module & Three Fasteners
GC0154512Courtesy of CHRYSLER GROUP, LLC
  1. Position the left front seat to its full forward position.
  2. Remove fasteners (2) from Air Supply Control Module (ASCM).
  3. Position the left front seat to its full rearward position.
  4. Disconnect and isolate the negative battery cable. Refer to CABLES, BATTERY, REMOVAL .

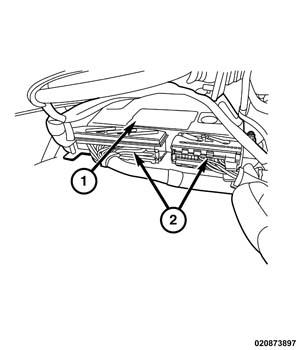

    Fig 2: ASCM Wire Harness Connectors
    GC0154642Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wire harness connectors (2) from the ASCM.
  6. Remove the ASCM from the mounting bracket.
